8 CompactLogix Analog Output Module
Rockwell Automation Publication 1769-IN089A-EN-P - March 2011
6. To allow communication between the controller and module, move the
bus lever fully to the left (4) until it clicks.
Be sure that it is locked firmly in place.
7. Attach an end cap terminator (5) to the last module in the system by
using the tongue-and-groove slots as before.
8. Lock the end cap bus terminator (6).
Mounting Expansion I/O

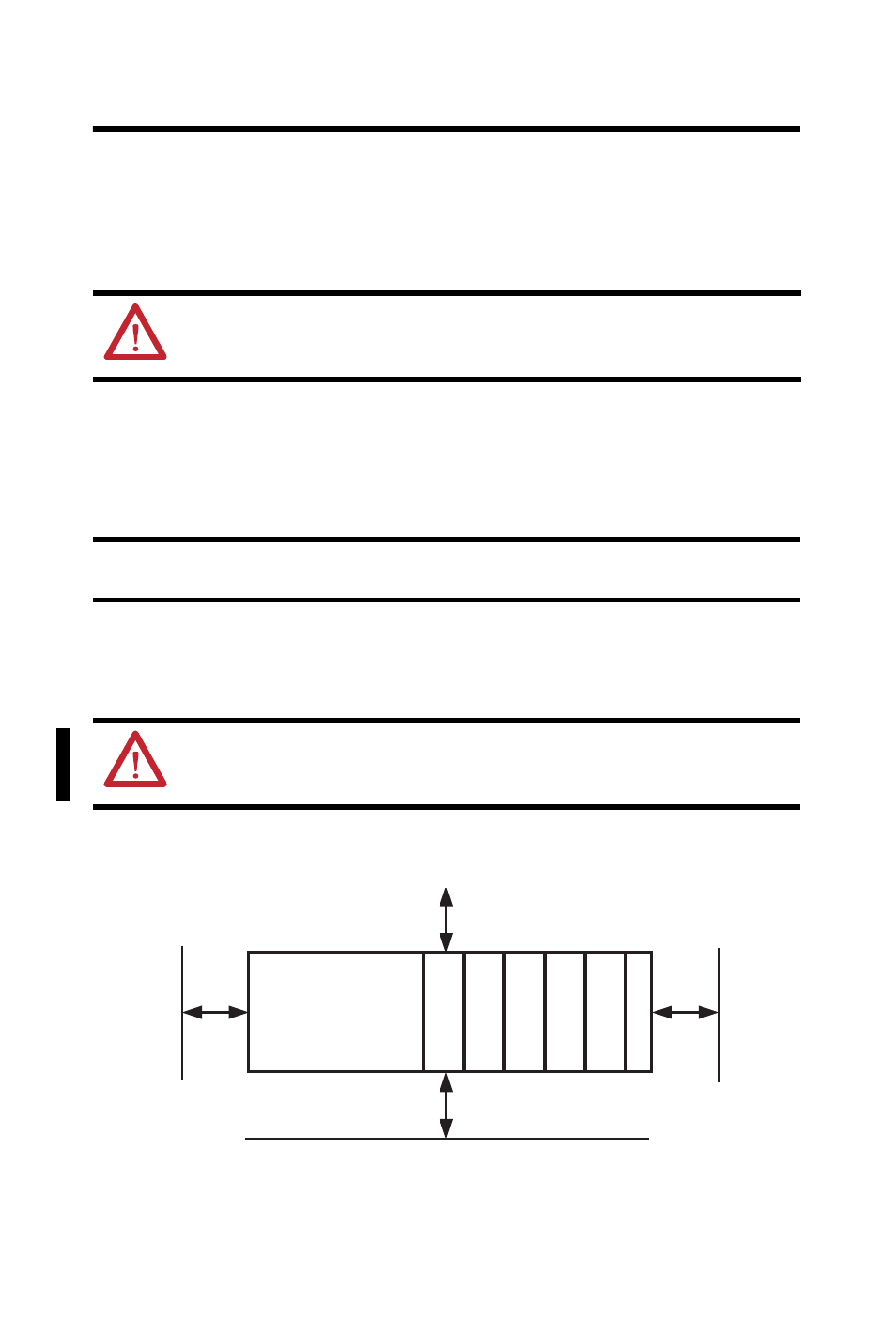

Minimum Spacing
ATTENTION: When attaching I/O modules, it is very important that the
bus connectors are securely locked together to ensure proper electrical
connection.
IMPORTANT A 1769-ECR or 1769-ECL right or left end cap must be used to terminate
the end of the serial communication bus.
WARNING: When used in a Class I, Division 2, hazardous location, this
equipment must be mounted in a suitable enclosure with proper wiring
method that complies with the governing electrical codes.
Top
Bottom
Side Side
Host Controller
Compact I/
O
Compact I/
O
Compact I/
O
Compact I/
O
Compact I/
O
End
Cap
