16 CompactLogix Analog Output Module
Rockwell Automation Publication 1769-IN089A-EN-P - March 2011
Removing the Finger-Safe Terminal Block
To remove the terminal block, loosen the upper and lower retaining screws. The
terminal block will back away from the module as you remove the screws. When
replacing the terminal block, torque the retaining screws to 0.46 N•m
(4.1 lb•in).
Wiring the Finger-safe Terminal Block
When wiring the terminal block, keep the finger-safe cover in place.
1. Loosen the terminal screws to be wired.
2. Route the wire under the terminal pressure plate. You can use the bare
wire or a spade lug. The terminals will accept a 6.35 mm (0.25 in.) spade
lug.
WARNING: When you connect or disconnect the Removable Terminal
Block (RTB) with field side power applied, an electrical arc can occur. This
could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
TIP The terminal screws are non-captive. Therefore, it is possible to use a
ring lug [maximum 1/4 inch o.d. with a 0.139 inch minimum i.d. (M3.5)]
with the module.

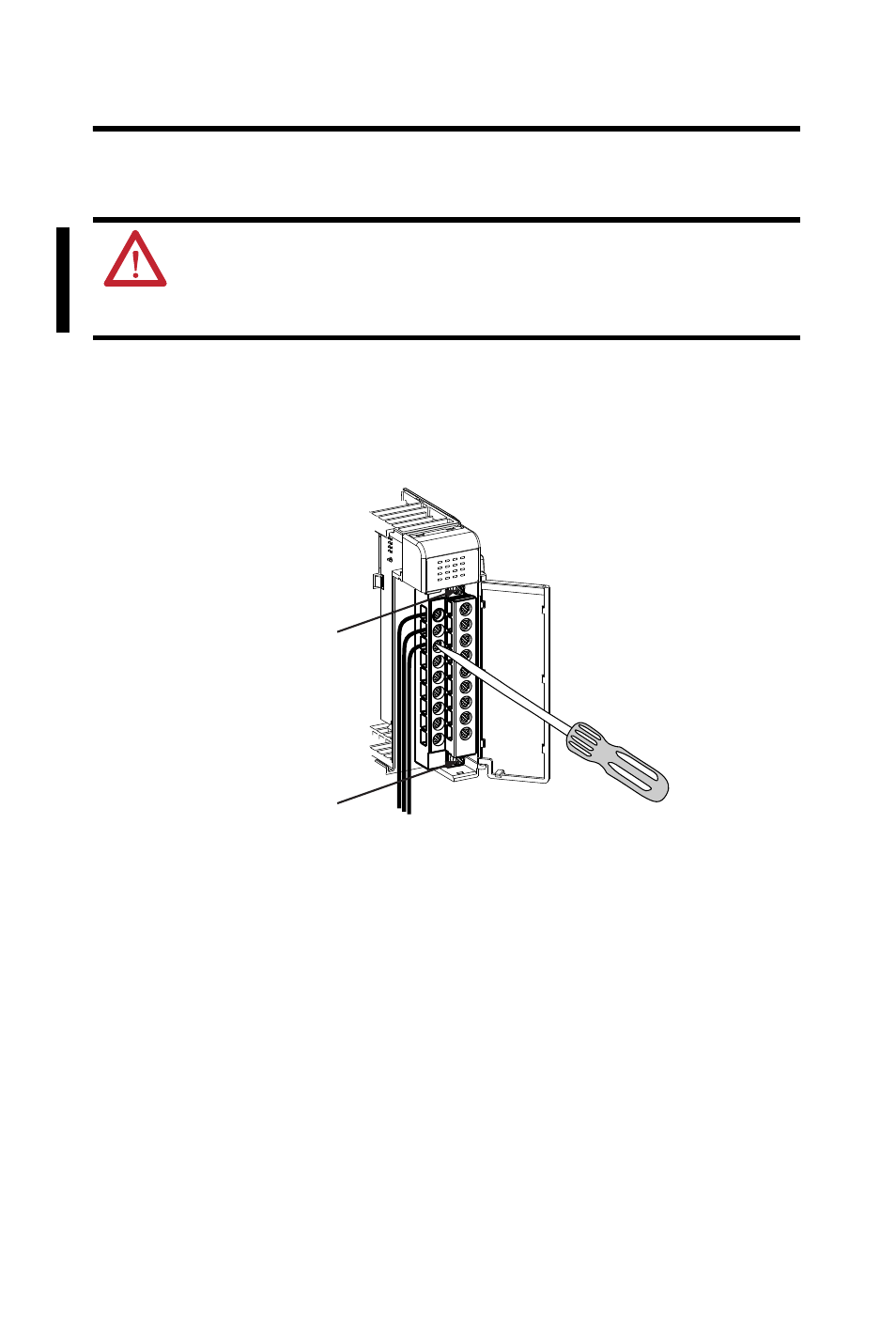

Wiring the
finger-safe
terminal block
Upper Retaining Screw
Lower Retaining Screw
