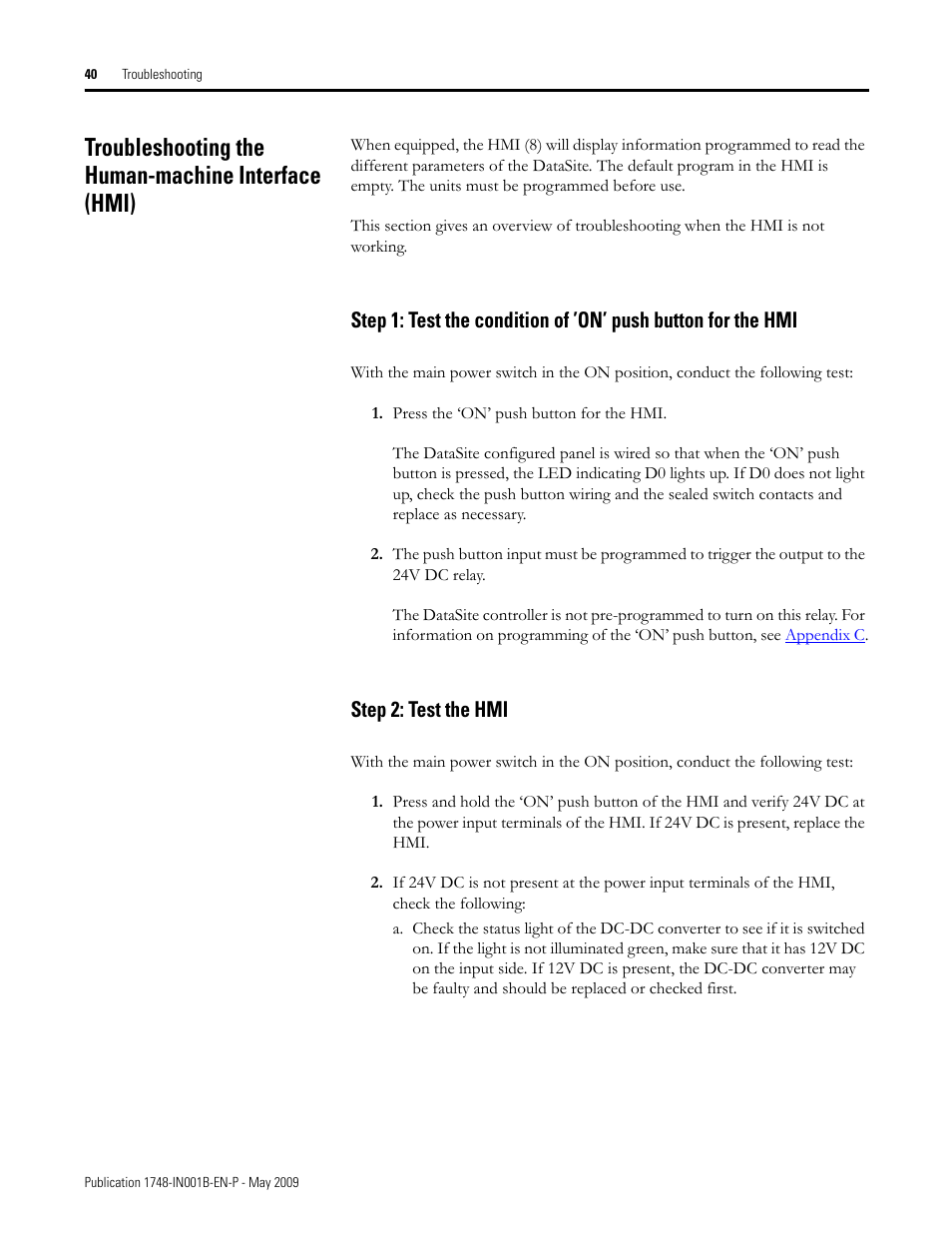

Troubleshooting the human-machine interface (hmi), Step 2: test the hmi – Rockwell Automation 1748 DataSite Configured Panel Installation Instructions User Manual
Page 40
