Access Files to Configure I/O
There are two ways to configure the SLC Chassis for a 1746-FIO4I/V
module. You can either click and drag items from the list or you can
use the Read IO Config method.
Click and Drag
Configuration Follow these steps to configure the SLC chassis by clicking and
dragging modules.

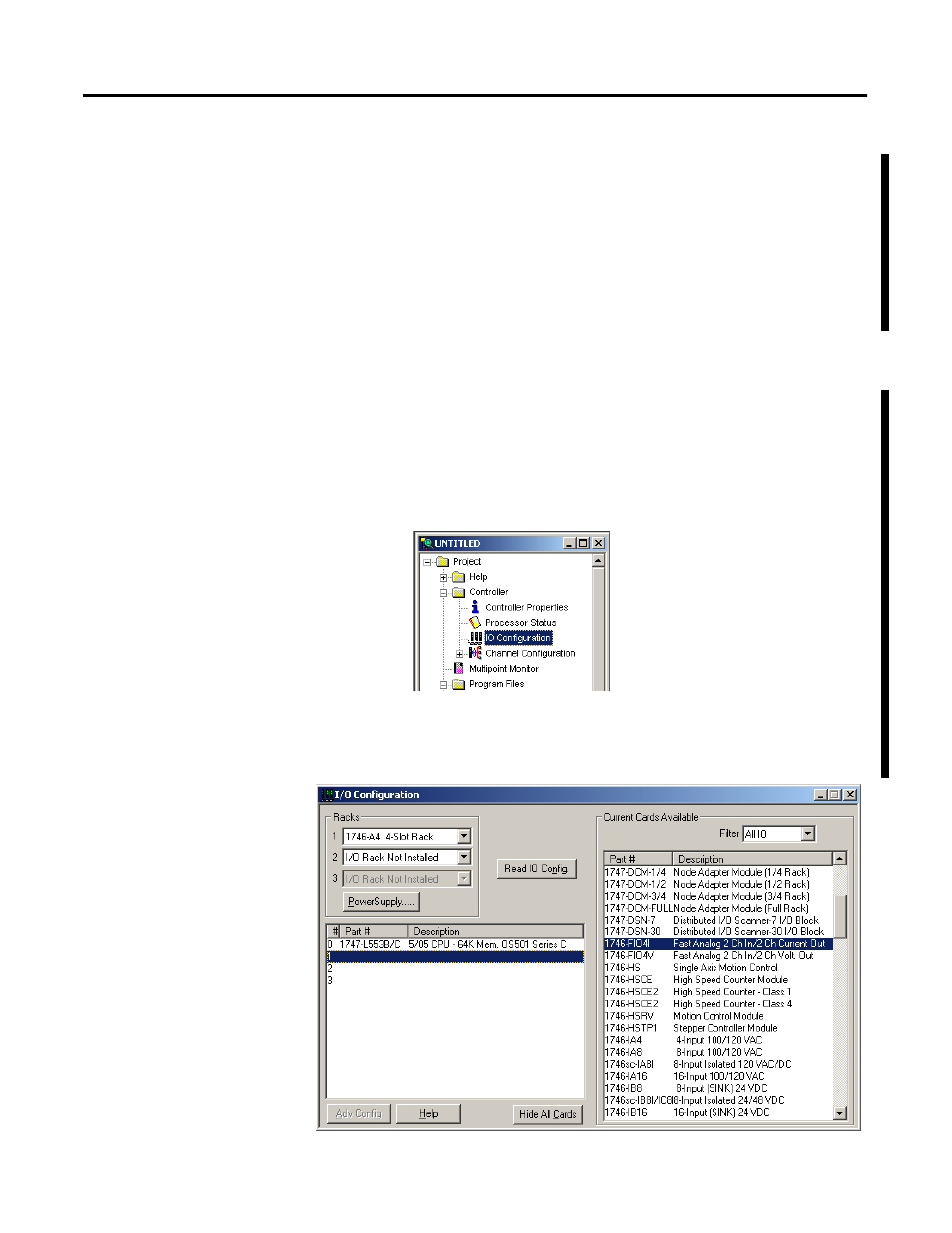

1. Double-click the menu item to open the IO Configuration menu
in RSLogix500 software.
2. Place the 1746-FIO4I/V module into the correct slot by clicking
and dragging from the list.
