All parameters are specified at 48V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless noted otherwise.
2 Rockwell Automation Publication 1606-RM018A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies

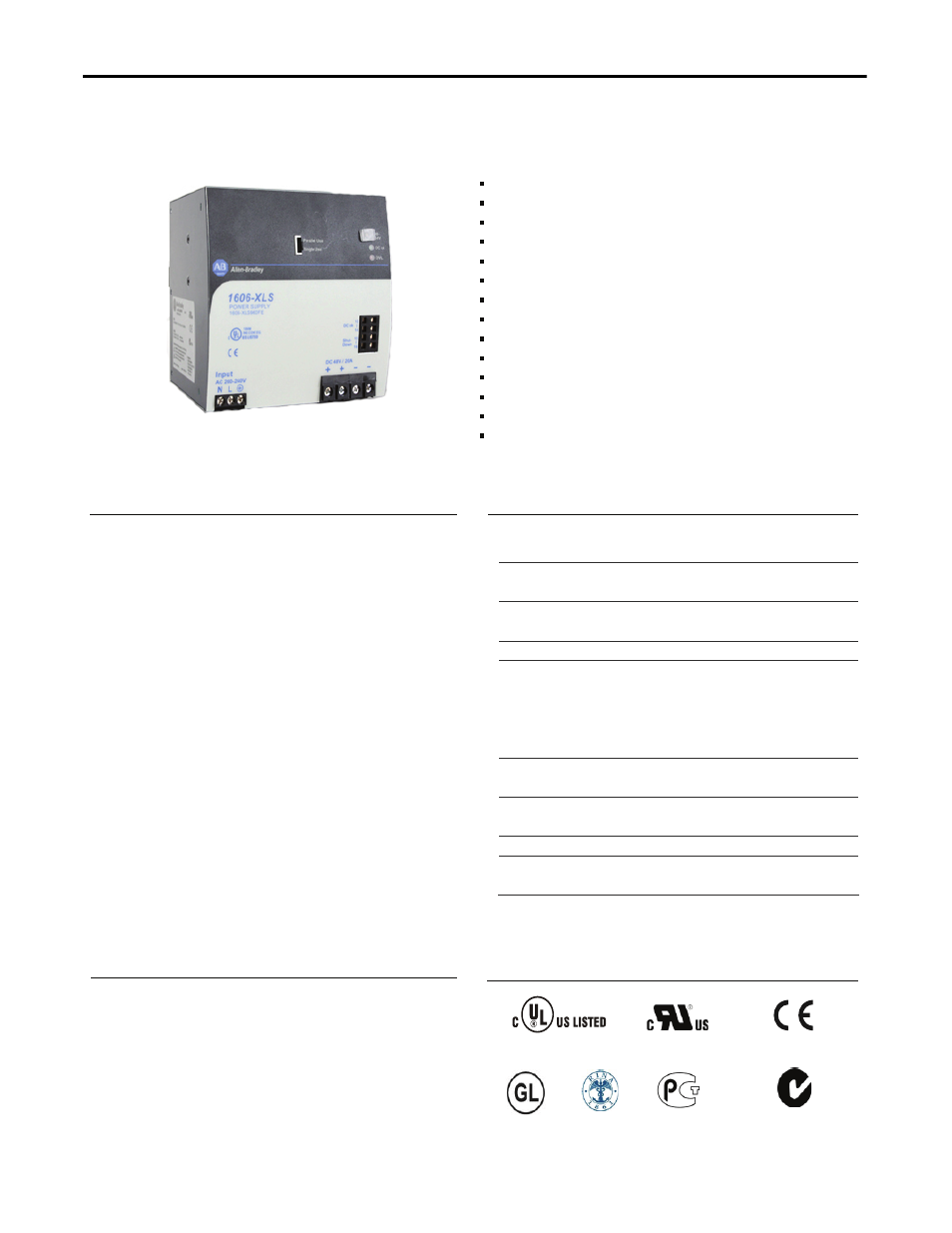

Power Supply
AC 200-240V Input
Width only 125mm, Weight only 1.8kg
95.0% Full Load and Excellent Partial Load Efficiencies
50% BonusPower, 1440W for up to 4s
55A High Peak Current for 25ms for Easy Fuse Tripping
Safe Hiccup
PLUS Overload Mode
Active PFC (Power Factor Correction)
Negligible Low Input Inrush Current Surge
Full Power Between -25°C and +60°C
Current Sharing Feature for Parallel Use
Internal Data Logging for Troubleshooting Included.
DC-OK Relay Contact
Shut-down Input
3 Year Warranty
Description
The most outstanding features of our family of DIN rail
power supplies are their extremely high efficiency and
their small footprint, which are achieved by a
synchronous rectification and other technological
innovations.
The 1606-XLS960FE is a device for 200-240V mains
voltages. Large power reserves of 150% support the
starting of heavy loads such as DC motors or capacitive
loads. In many cases, this allows the use of a unit from a
lower wattage class which saves space and money.
High immunity to transients and power surges as well as
low electromagnetic emission make usage in nearly
every environment possible.
The integrated output power manager and input fuses
as well as the near zero input inrush current make
installation and usage simple. Diagnostics are easy due
to the DC-OK relay, a green DC-OK LED and the red
overload LED.
A large international approval package for a variety of
applications makes this unit suitable for nearly every
application.
Specification Quick Reference
Output voltage DC 48V nominal
Adjustment range 48 - 54V
Output current 20 – 17.8A continuous
30 – 26.7A short term (4s)
Output power 960W continuous
1440W short term (4s)
Output ripple < 150mVpp 20Hz to 20MHz
Input voltage AC 200-240V -15%/+10%
Mains frequency 50-60Hz ±6%
AC Input current 4.6A at 230Vac
Power factor 0.96 at 230Vac
AC Inrush current typ. 14A peak at 230Vac
Efficiency 95.0% at 230Vac
Losses 50.5W at 230Vac
Temperature range -25°C to +70°C operational
Derating 24W/°C +60 to +70°C
Hold-up time typ. 30ms at 230Vac
Dimensions 125x124x127mm WxHxD
Weight 1800g / 3.97lb
Catalog Numbers
Power Supply 1606-XLS960FE 48-54V Standard unit
Accessories 16060-XLC Wall mount bracket
1606-XLSBUFFER48 Buffer unit
Certifications
IND. CONT. EQ.
UL 508
UL 60950-1
EMC, LVD, RoHS
Marine Marine RINA GOST R C-TICK
