All parameters are specified at 48V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless noted otherwise.
18 Rockwell Automation Publication 1606-RM018A-EN-P — February 2014
Bulletin 1606 Switched Mode Power Supplies
21. Dielectric Strength
The output voltage is floating and has no ohmic connection to the ground. Type and factory tests are conducted by
the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the
voltage with a slow ramp (2s up and 2s down). Connect all input-terminals together as well as all output poles before
conducting the test. When testing, set the cut-off current settings to the value in the table below.

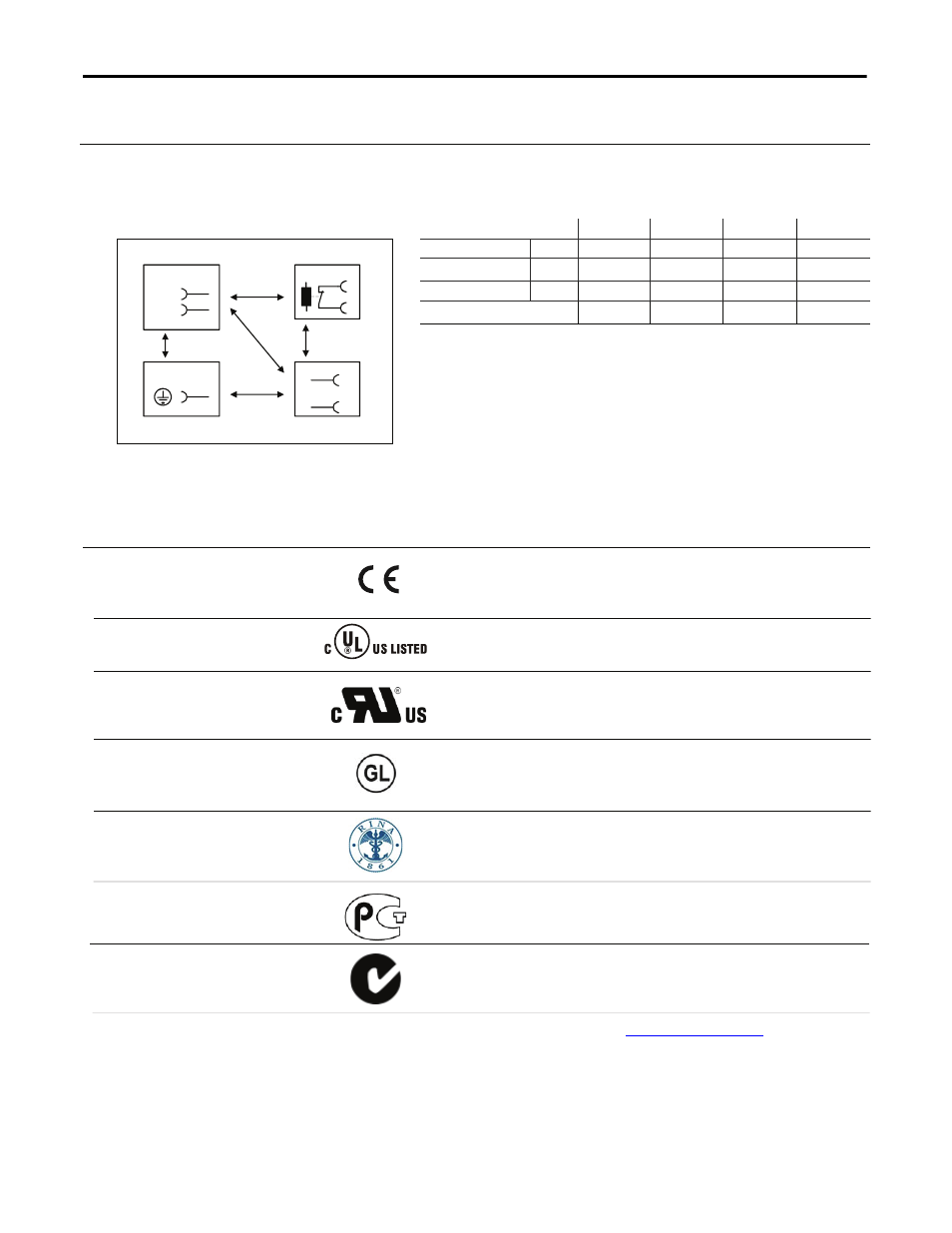

Fig. 21-1 Dielectric strength A B C D
Type test 60s 2500Vac 3000Vac 500Vac 500Vac
Factory test 5s 2500Vac 2500Vac 500Vac 500Vac
Field test 5s 2000Vac 2000Vac 500Vac 500Vac
Cut-off current setting > 20mA > 20mA > 40mA > 1mA
A
D
C
B
B *)
L
Input DC-ok
13
14
Earth, PE
Output
15/16
+/-
Shut-down
N
To fulfil the PELV requirements according to EN60204-1 § 6.4.1, we
recommend that either the + pole, the – pole or any other part of
the output circuit shall be connected to the protective earth
system. This helps to avoid situations in which a load starts
unexpectedly or can not be switched off when unnoticed earth
faults occur.
B*) When testing input to DC-OK ensure that the max. voltage between DC-OK and the output is not exceeded (column D). We recommend
connecting DC-OK pins and the output pins together when performing the test.
22. Certifications
EN 60950-1, EN 61204-3
Complies with CE EMC and CE Low Voltage Directives
UL 508
IND. CONT. EQ.
LISTED E56639 listed for use in the U.S.A. (UL 508)
and Canada (C22.2 No. 14-95)
Industrial Control Equipment
UL 60950-1 RECOGNIZED E168663 recognized for use in the U.S.A.
(UL 60950-1) and Canada (C22.2 No. 60950)
Information Technology Equipment, Level 3
Marine GL (Germanischer Lloyd) classified for marine and offshore
applications.
Environmental category: C, EMC2
See below for link to the Certificate.
GOST R GOST R certification is applicable for products intended for sale
and use within Russia. See below for link to the Certificate.
Marine Rina RINA (Registro Italio Navale) certified. See below for link
to the Certificate.
C-TICK
C-tick compliance is for products intended for sale and use
within he Australian market. See below for link to the C-tick
Declarations of Conformity.
Product certification information (including Certificates and Declarations of Conformity) can be found at www.ab.com/certification.
