PowerFlex 755 IP00, NEMA/UL Open Type Drive
I/O Terminal Blocks
The various I/O terminal blocks are located in the Control Pod.

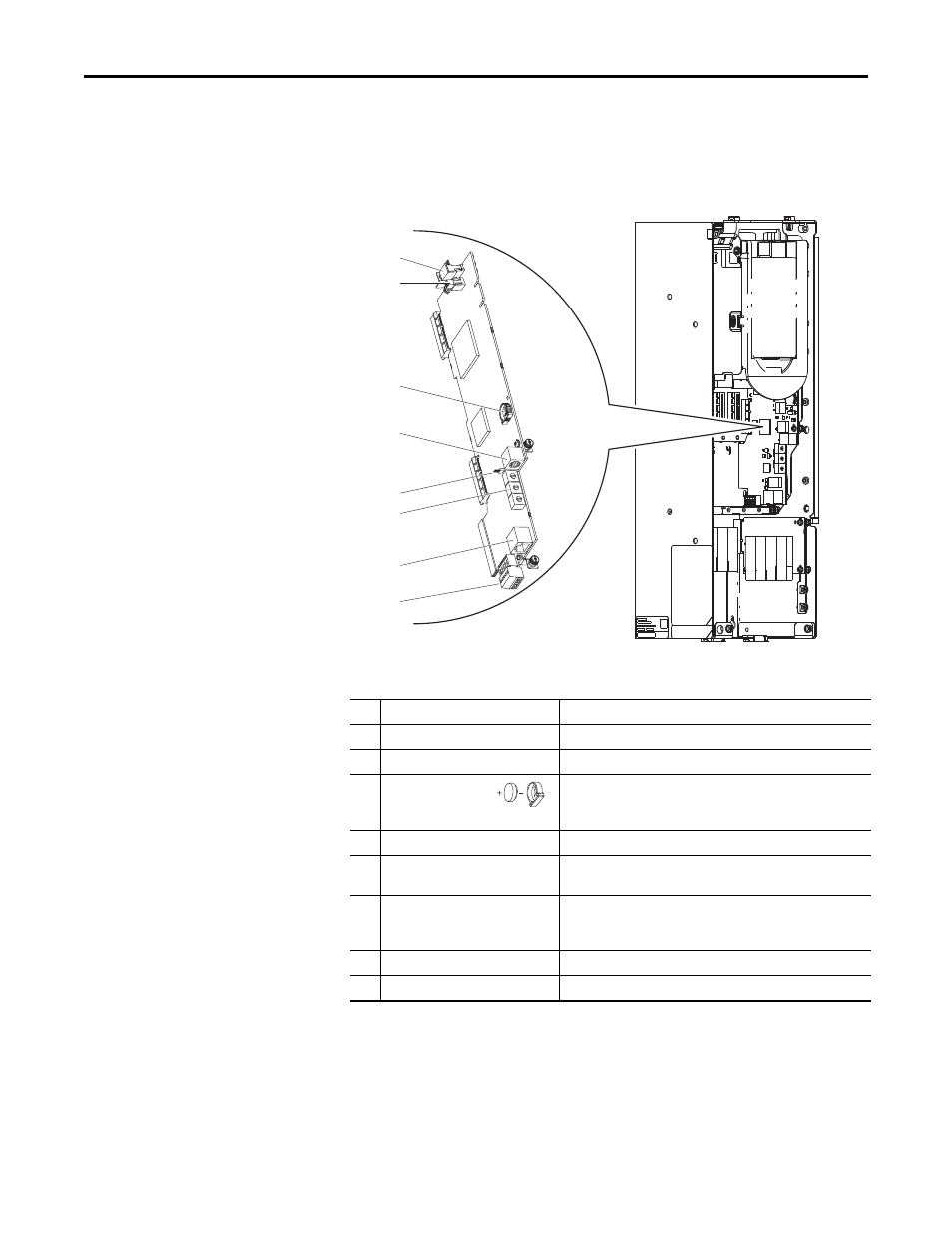

Main Control Board
Main Control Board Details
No.
Name
Description
➊
HIM Connector
DPI Port 1 (HIM Cradle) connection.
➋
Fan Connector
Power supply for internal cooling fan.
➌
Battery Receptacle
User installed CR1220 lithium coin cell battery provides power to the
Real Time Clock (Optional, not supplied). Preserves the Real Time Clock
setting in the event power to the drive is lost or cycled.
➍
DPI Port 2
Cable connection for handheld and remote HIM options.
➎
ENABLE Jumper
Hardware enable jumper. Removed when a hardware enable
configuration is utilized.
➏
Embedded EtherNet/IP
(1)
Address
Selectors
(1) Refer to the PowerFlex 755 Drive Embedded EtherNet/IP Adapter User Manual, publication 750COM-UM001.
Rotary switches for setting lowest octet of EtherNet address (forces
address to 192.168.1.xxx). Refer to the Programming Manual,
publication 750-PM001 for instructions on setting the IP address.
➐
Embedded EtherNet/IP
Connector
Network cable connection.
➑
TB1
I/O terminal block.
➊
➋
➌
➍
➎
➏
➑
➐
