PowerFlex 755 IP00, NEMA/UL Open Type Drive
Installation Overview
AC Input Drives

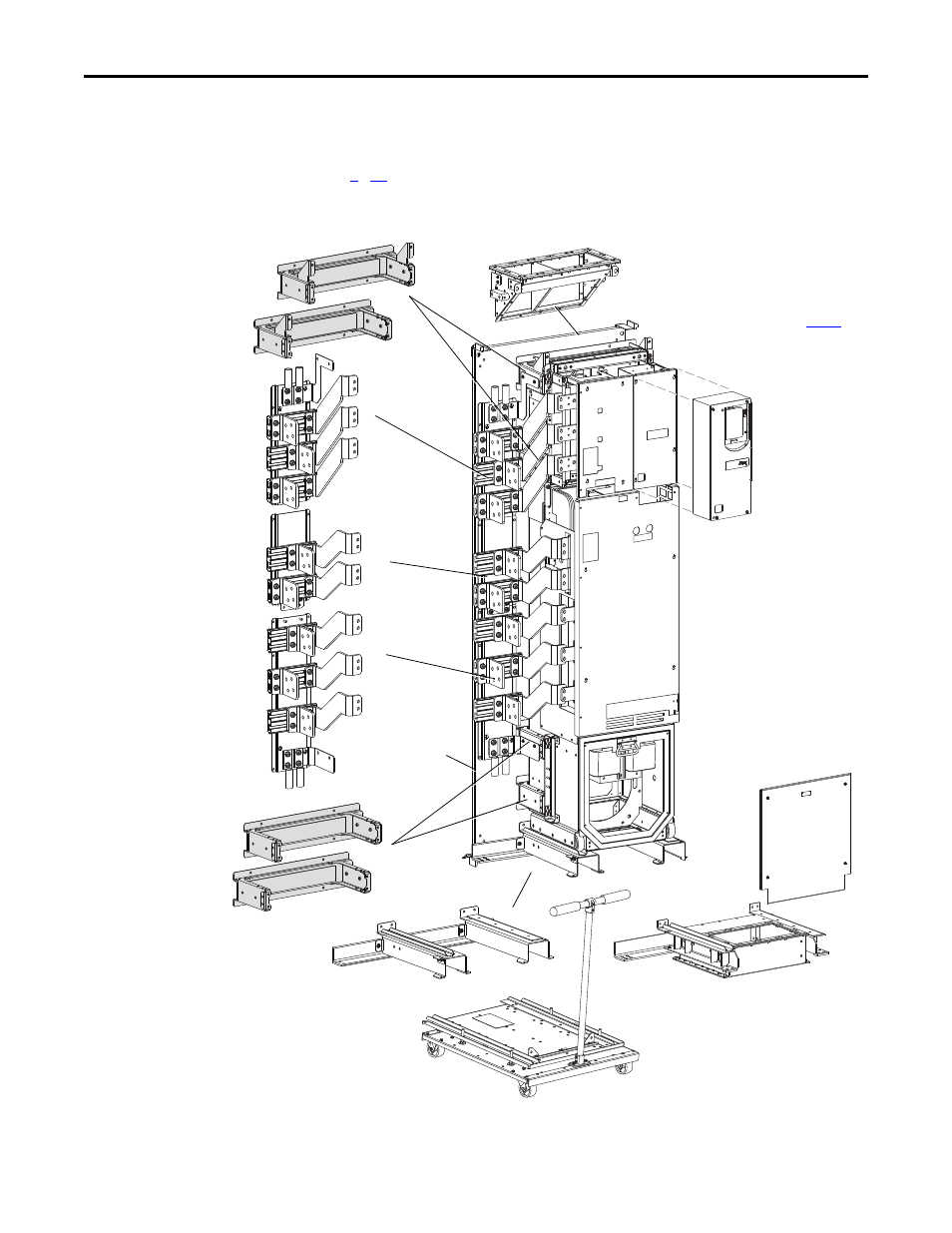

A typical IP00 installation for an AC input drive is shown below. Refer to pages
for available kits and ratings.
PE
PE
PE
PE
PE
PE
R/L1
S/L2
T/L3
DC (+)
DC (+)
DC (-)
DC (-)
DC
(+)
DC
(-)
U/T1
V/T2
W/T3
PE
PE
Power
755
Converter (AC Input)
Termination Kit
Sub Panel
(for reference only)
IP00 Frame 8 Drive Assembly
(Inverter & Converter)
Mounting Kit
Inverter (DC Bus)
Termination Kit
Optional for a Frame 8
equivalent. Use only if the
application requires.
Inverter (AC Output)
Termination Kit
Mounting Kit
Outlet Ducting Kit
Floor Mounting
Kit
Roll-out Cart
Bottom Duct Kit
Bottom inlet duct mounts inside
of the Floor Mounting kit. Both
kits are required for inlet ducting
from the bottom.
Control Pod
