PowerFlex 755 IP00, NEMA/UL Open Type Drive
Cable Routing
Control Pod Cable Routing
Supports, clips, and cable ties are provided to help route and secure cabling inside
the Control Pod.

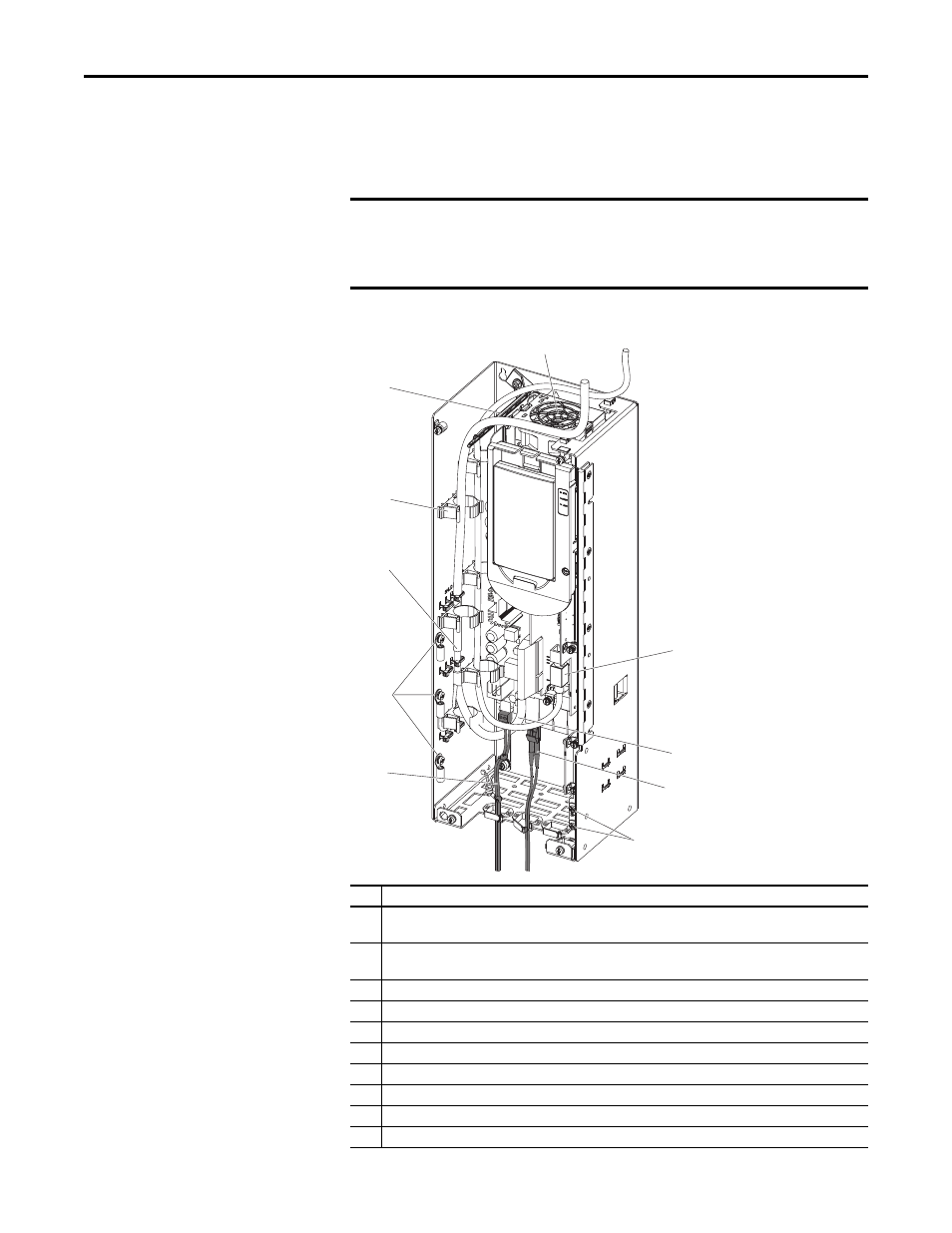

Figure 20 - Frame 8 Control POD Detail
IMPORTANT
• When routing cabling into the control Pod, do not block the cooling fan
outlet.
• Do not ground shield wires to inner sheet metal bucket supporting option
modules.
No.
Description
➊
I/O signal cable shield termination points. Use M4 screws and ring terminals provided to tie together and
terminate drain wires and shields.
➋
Ground shield wires to outer sheet metal bucket. Strip cable insulation 25 mm (1 in.) to expose braid. Attach cable
ties around shield and through slots. Pull tight.
➌
Attachment points for cable management devices provided (6 places).
➍
Cable support ladder.
➎
Fan outlet. Keep clear to help ensure proper cooling.
➏
Control cable entry and routing.
➐
Human Interface Module (HIM) cable entry and routing.
➑
Shield termination points.
➒
Inverter Fiber-optic connection
➓
Internal 24V power connection
➋
➌
➍
➎
➏
➏
➓
➑
➐
➊
➒
➐
