Page 36

36
Rockwell Automation Publication 750-IN020C-EN-P - May 2012
PowerFlex 755 IP00, NEMA/UL Open Type Drive
Lifting
The approximate maximum drive component weights are listed below.

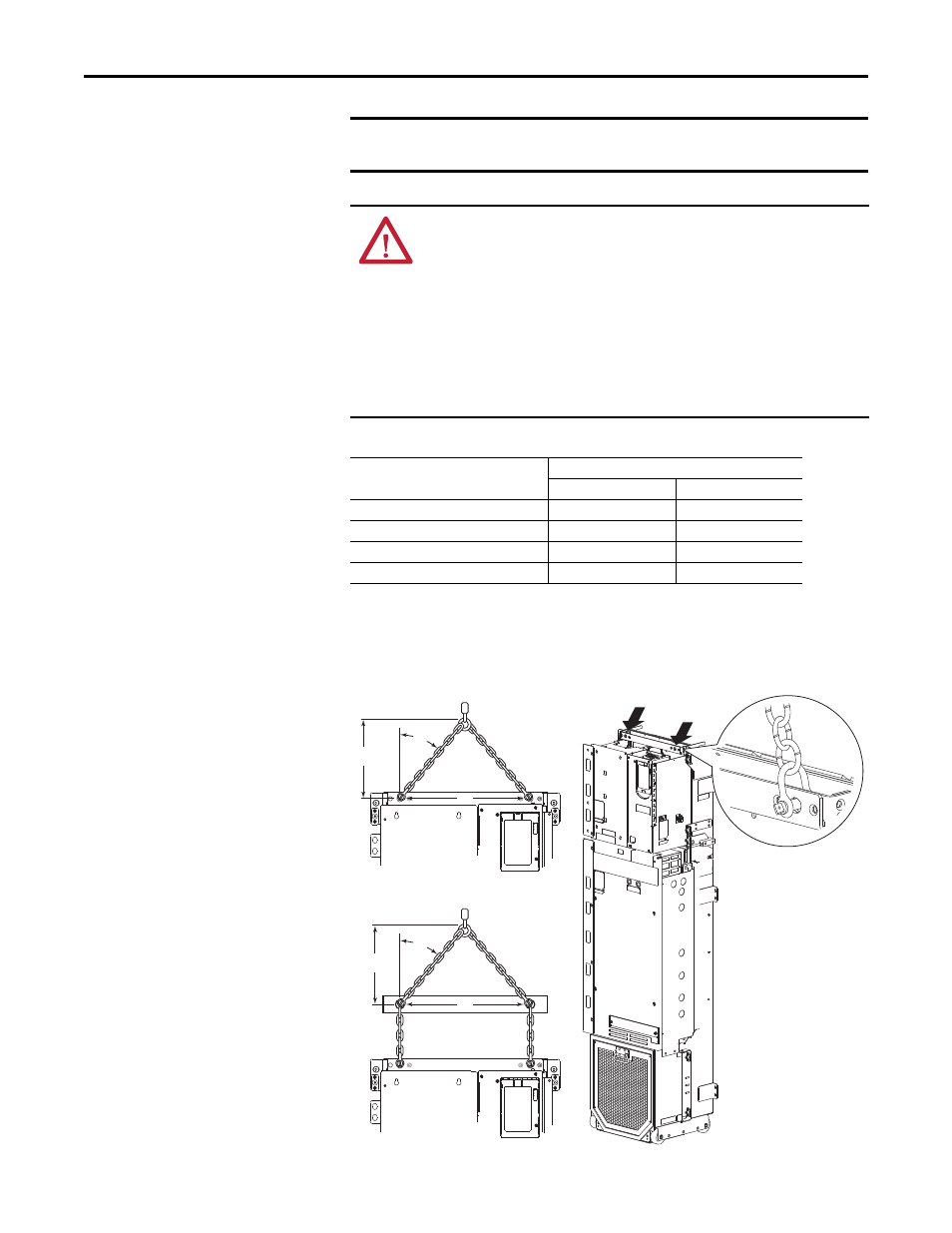

Vertical Lifting
Attach Lifting Hardware
IMPORTANT
Consult the enclosure manufacturers documentation for proper enclosure
lifting procedures.
ATTENTION: To guard against possible personal injury and/or equipment
damage…
• Inspect all lifting hardware for proper attachment before lifting drive or
enclosure.
• Do not allow any part of the drive, enclosure or lifting mechanism to make
contact with electrically charged conductors or components.
• Do not subject the drive or enclosure to high rates of acceleration or
deceleration while transporting to the mounting location or when lifting.
• Do not allow personnel or their limbs directly underneath the drive or
enclosure when it is being lifted and mounted.
Component
Weight kg (lb)
AC Input
Common DC Input
Pod
5 (10)
5 (10)
Converter/DC Input with Precharge
64 (140)
64 (140)
Inverter
222 (490)
165 (363)
Drive Assembly (Open, IP00)
286 (630)
229 (504)
>1/2 A
A
<45°
>1/2 A
A
<45°
