Compliance of the Bulletin 161 drive to the conducted emissions levels with appropriate line filter module is as
follows:
PWM Carrier Frequency Motor cable length Limit
<16 kHz 10 m Class B
<5 kHz 20 m Class B
<16 kHz 50 m Class A
2. All motor cables must be shielded cable, or be in grounded metal conduit.
3. All control and signal wiring must use shielded cable or be in grounded metal conduit.
4. Grounding of equipment and cable shields must be solid, with low impedance connections.
5. Ensure that the protective conductor terminal (PE) of the filter is properly connected with the protective
conductor terminal of the drive. The filter must be solidly and permanently connected with the ground
potential to avoid electric shock.

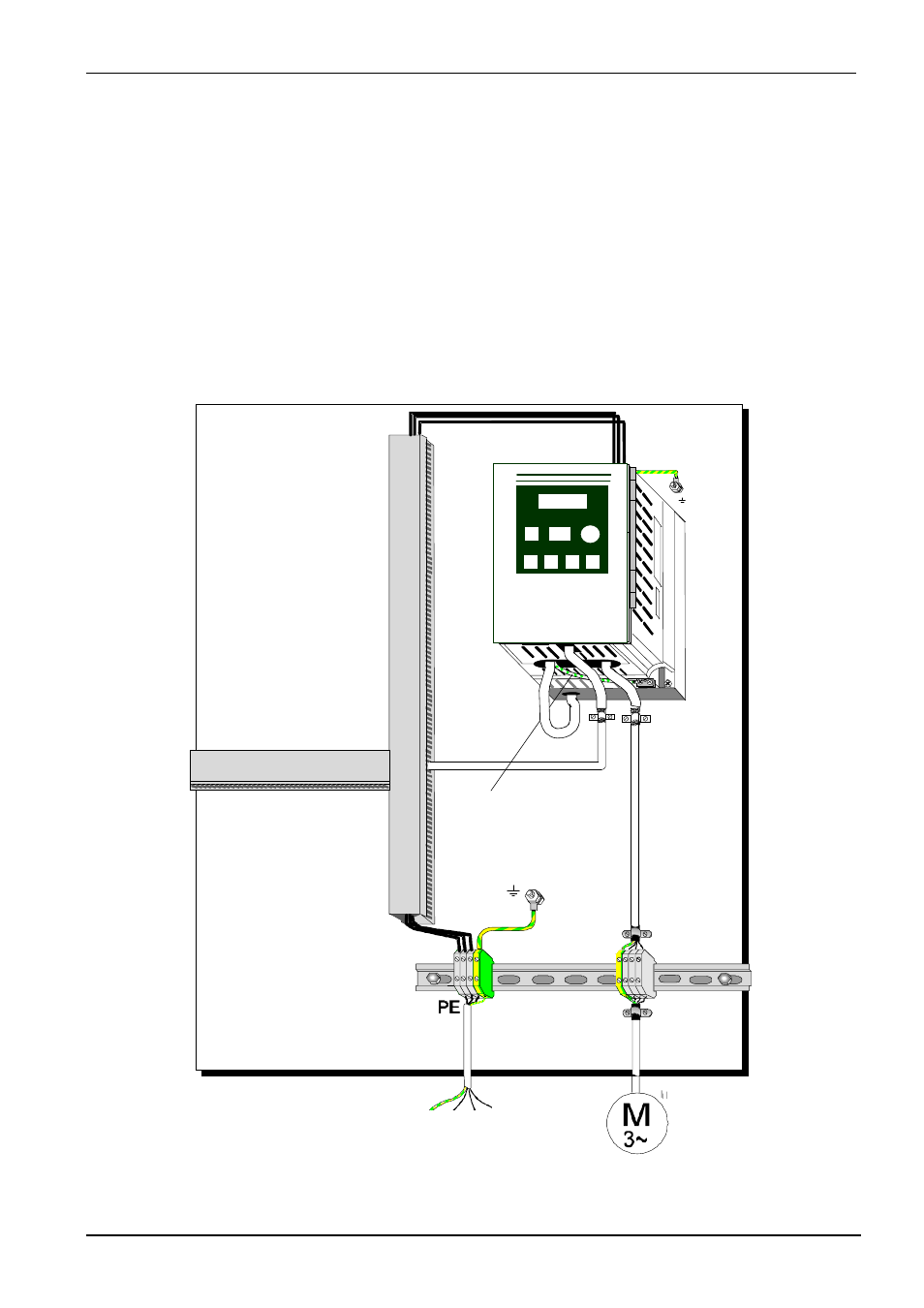

HITACHI
RUN STOP
RESET
MI MAX
RUN
PRG
Hz
A
POWER
2
STR FUNC. 1
L 100
W ARNING
HAZARD OF PERSONAL INJURY OR
ELECTRIC SHOCK
Disconnect incoming power and wait
5 minutes before opening front case.
PE-connection
PE, L1, N
