22 Rockwell Automation Publication 750COM-UM007A-EN-P - January 2013
Chapter 2 Installing the Option Module
Connecting the Option
Module to the Network
1. Remove power from the drive.
2. Remove the drive cover and lift up the drive HIM bezel to its open
position to access the drive control pod.
3. Use static control precautions.
4. Connect one end of the Profinet cable to the network. See Figure 2 for an
example of wiring to a Profinet network.

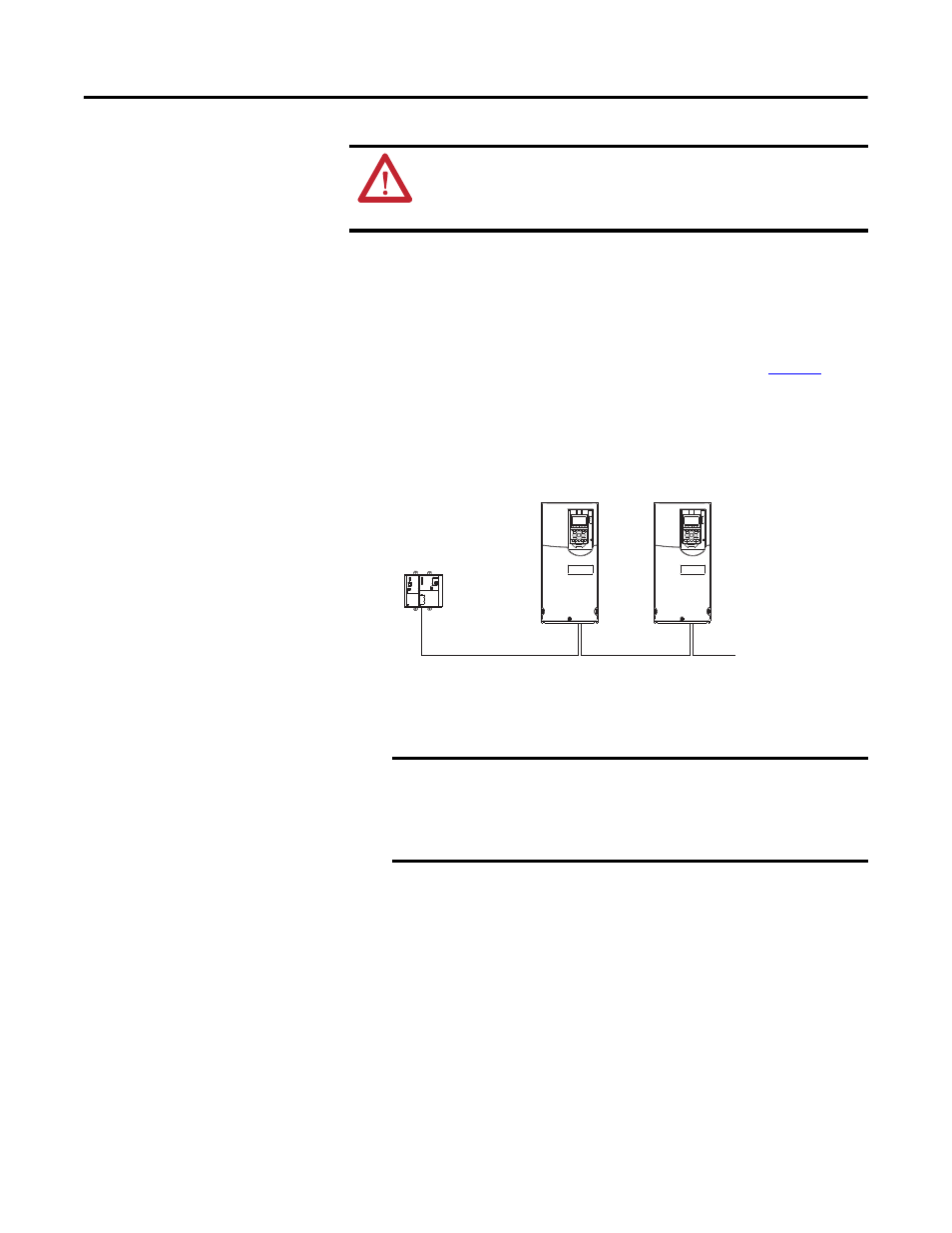

Figure 2 - Profinet Wiring Example
5. Route the other end of the Profinet cable from the network through the
bottom of the drive and insert its cable plug into the mating option
module connector.
ATTENTION: Risk of injury or death exists. The PowerFlex drive may
contain high voltages that can cause injury or death. Remove power from
the drive, and then verify power has been discharged before connecting the
option module to the network.
IMPORTANT Profinet connectors are available from a variety of sources and in
various sizes. As such, there may be mechanical limitations that
prohibit the use of some connectors. We recommend the LAPP
GROUP connector part number 21700540 for use with PowerFlex
750-Series drives.
PowerFlex 750-Series Drives
(with 20-750-PNET2P Option Modules)
Profinet
Controller
