Rockwell Automation Publication 842E-UM001A-EN-P May 2012 57
RSLogix 5000 sample code Appendix B

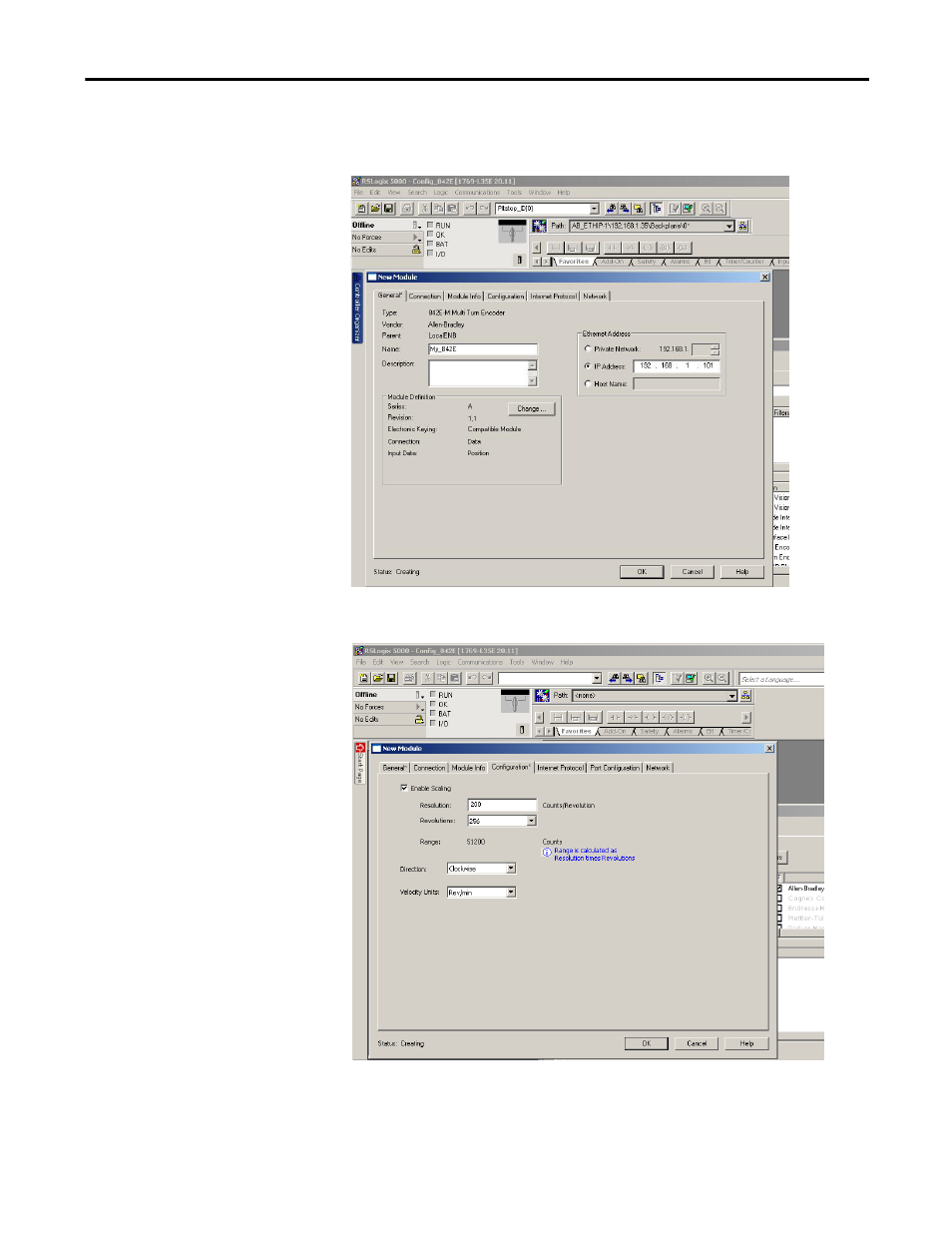

6. The encoder add-on profile configuration will then launch. Name the
encoder (In this example it is
My_842E). Configure the encoder’s IP
address at 192.168.1.101.
7. Click the Configuration tab and set it up as shown per the linear scaling
example on page 53. Click Apply, then OK.
