4 - installation, Mechanical, Shaft rotation direction – Rockwell Automation 842E EtherNet/IP Absolute Encoder User Manual User Manual
Page 25: Mounting with a solid shaft, Chapter 4, Installation, Chapter
May 2012
Rockwell Automation Publication 842E-UM001A-EN-P May 2012
17
Chapter
4
Installation
Mechanical
This chapter describes how to install the 842E EtherNet/IP Encoder.
Also refer to the installation sheet provided in the box, Publication No.
100000169360
.
Shaft rotation direction

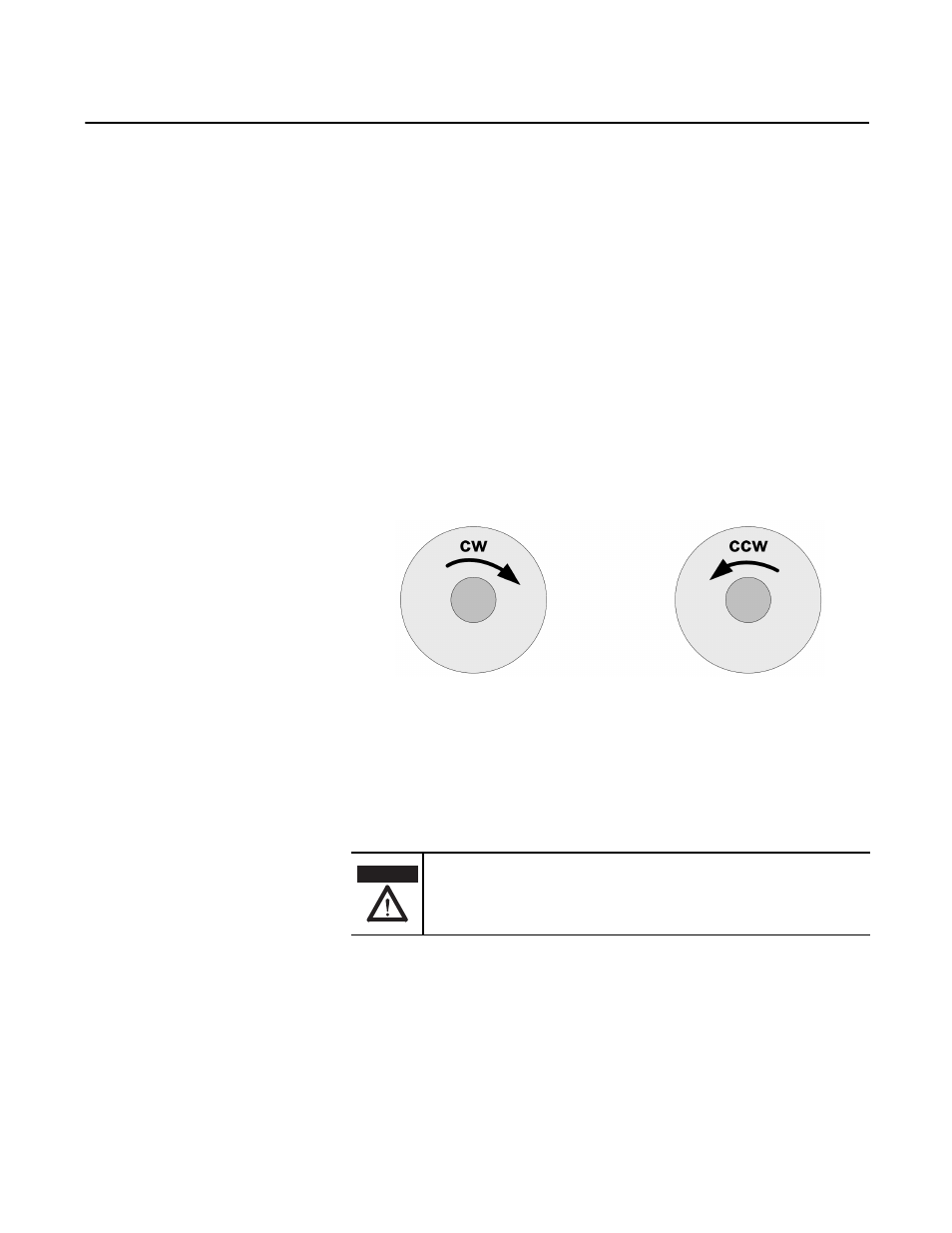

When you view the encoder from the shaft side, the shaft rotation is clockwise
(CW) or counterclockwise (CCW), as shown.
Mounting with a solid shaft
1.
Be sure to select the proper size flexible coupling clamp to mate to the
encoder shaft, e.g., 845–FC–*–*. See encoder accessories in the
Sensors
catalog.
2.
Use the dimension drawings in the installation instructions to determine
the encoder mounting hole locations (see “Related documentation” on
page iii).
3.
Slide the flexible coupling onto the shaft, but do not tighten the set screws.
ATTENTION
Do not rigidly connect the encoder shaft to the machine; this will cause
premature failure of the encoder or machine bearings. Always use a flexible
coupling.
