Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size - Manual (Page 9)

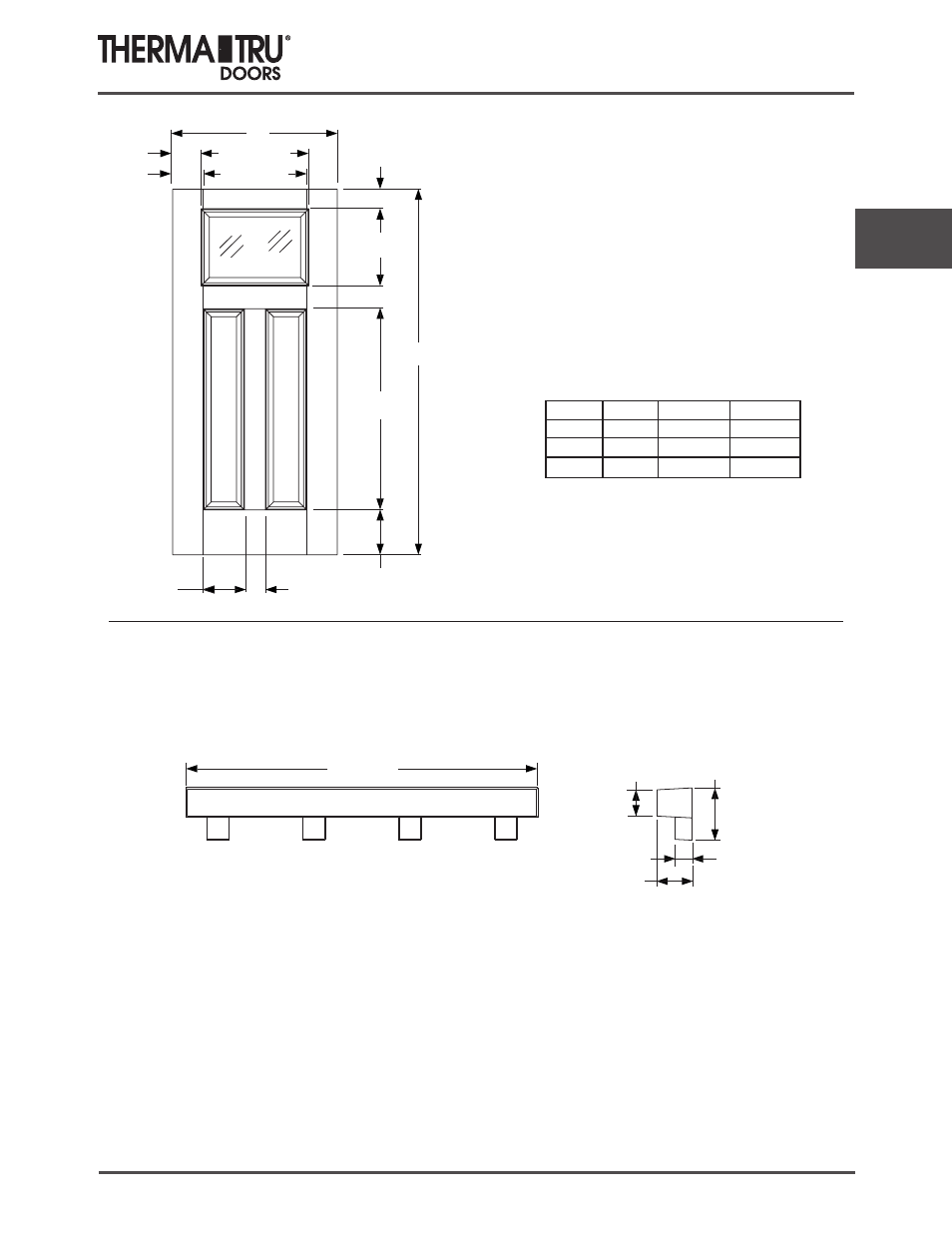

Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.9
6/8 Fiber-Classic Mahogany
Embossed Doors
A
B
4-17/32”
23-3/32”
3-25/32”
79-1/4”
16-27/32”
43-23/32”
9-9/16”
8-29/32”
22-11/32”
Size A
2/8 32” 4-27/32”
2/10 34” 5-27/32”
3/0 36” 6-27/32”
Craftsman Lite 2 Panel - 1 Lite
(Glass - FC2115)
(Slab - FCM203)
C
4-29/64”
5-29/64”
6-29/64”
B C
Daylight Opening: 20-3/32" x 13-27/32"
(278 sq.in.)
4 Block Dentil Shelf
(Shelf-DSB4BLK)
26-3/16” 2-5/8”
1-5/16”
1-5/16”
2-5/8”
