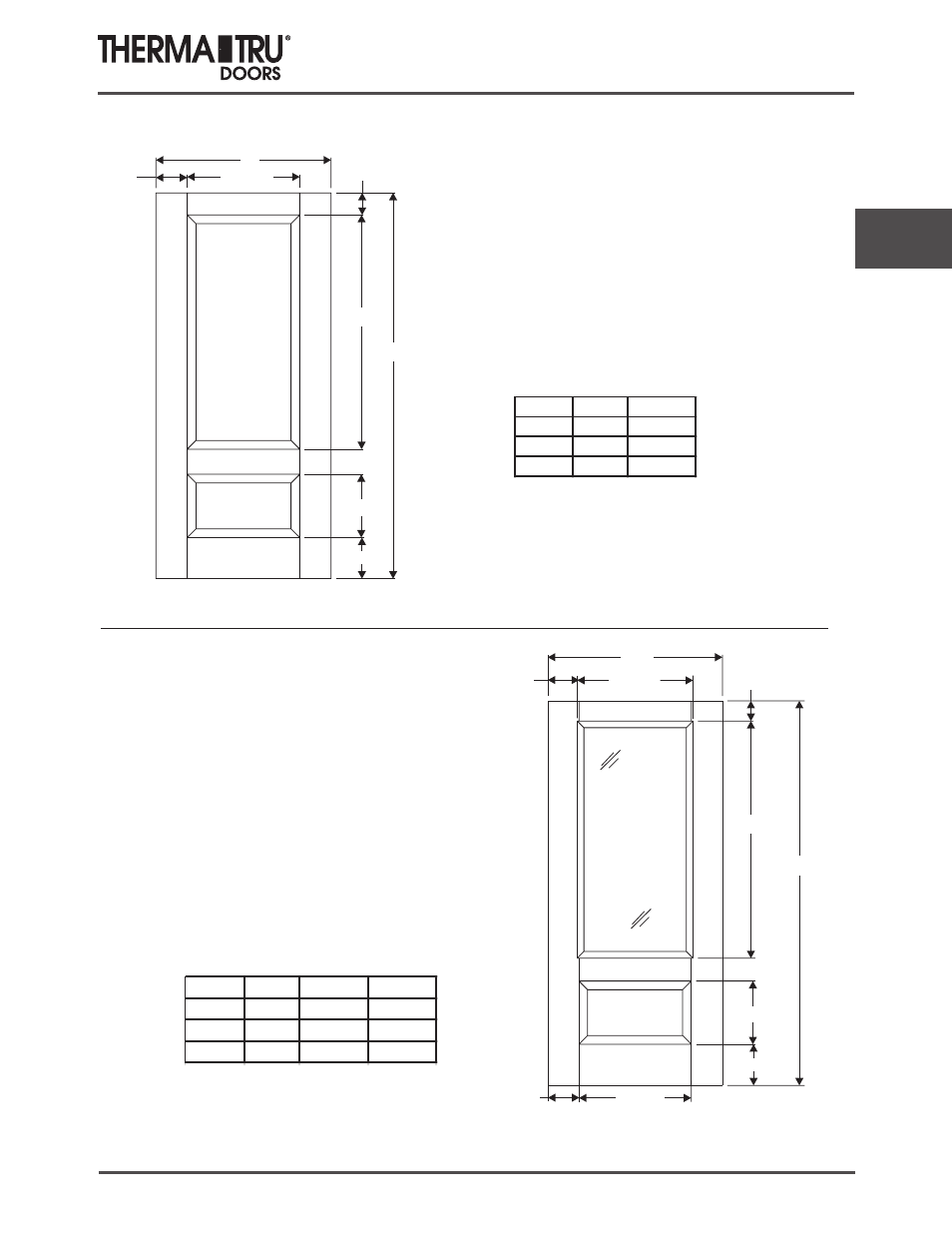

Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.19
6/8 Fiber-Classic Oak
Embossed Doors
B
A
23-1/8 ” 4-17/32 ”
79-1/4 ”
48-1/8 ”
5-5/32”
13 ”
8-3/8”
Size A B
2/8 32” 4-7/16”
2/10 34” 5-7/16”
3/0 36” 6-7/16”
3-5/8”
B
C 23-1/8 ”
23-7/8 ”
A
4-5/32 ”
48-7/8 ”
79-1/4 ”
Size A B C
2/8 32” 4-1/16” 4-7/16”
2/10 34” 5-1/16” 5-7/16”
3/0 36” 6-1/16” 6-7/16”
13 ”
8-3/8”
2 Panel 3/4 Top
(Slab-FCO200)
(Impact-FCO200H)
3/4 Lite 1 Panel
(2247)
(Slab-FCO200)
(Impact-FCO200H)
Daylight Opening: 21-1/8" x 46-1/8"
(974 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
