Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size - Manual (Page 32)

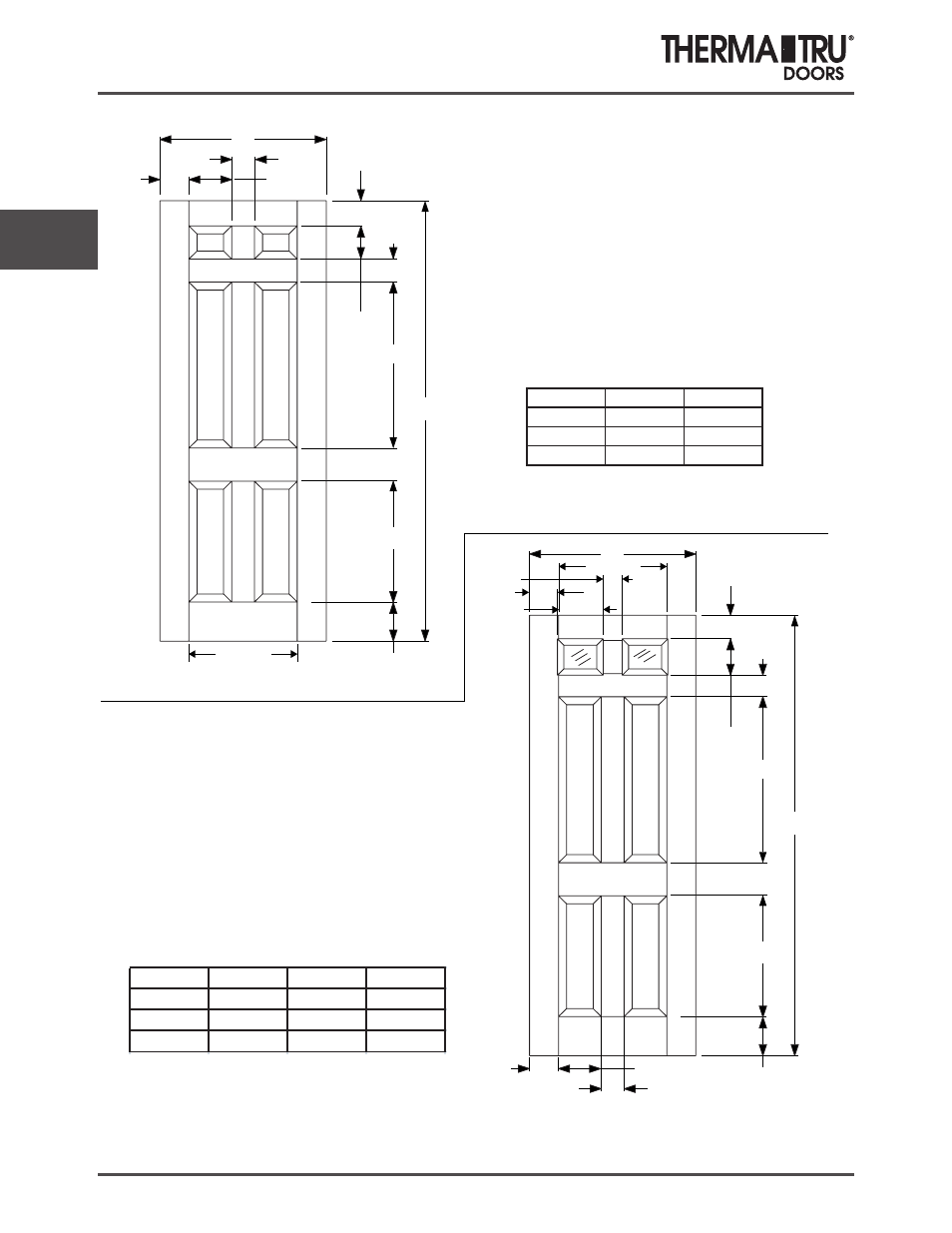

Fiber-Classic
Door Panel
Dimensions
4.32 2014 (BOOK SIZE) Comp 4
8/0 Fiber-Classic Oak Doors
A
B
4-7/8”
9-1/8”
5-7/16”
7-3/16”
5”
35-15/16”
26-1/8”
8-3/8”
95-1/4”
Size A B
2/8 32” 4-7/16”
2/10 34” 5-7/16”
3/0 36” 6-7/16”
A
C
4-3/32”
9-15/16”
5-1/16”
7-15/16”
4-19/32”
35-15/16”
26-1/8”
8-3/8”
95-1/4”
B
4-7/8”
9-1/8”
Size A B C
2/8 32” 4-7/16” 4-7/16”
2/10 34” 5-7/16” 5-7/16”
3/0 36” 6-7/16” 6-7/16”
8’ 6 Panel
(Slab-FCO8060)
(Impact-FCO8060H)
8’ 2 Lite 4 Panel
(Glass - 0806)
(Slab - FCO8060)
(Impact - FCO8060H)
23-1/8”
23-1/8”
Daylight Opening: 6-15/16" x 4-15/16" (per lite)
(Total 68 sq.in.)
