Fiber-Classic
Door Panel
Dimensions
4.16 2014 (BOOK SIZE) Comp 4
8/0 Fiber-Classic Mahogany
Embossed Doors
A
B 23-7/8”
5-7/32”
48-7/8”
95-1/4”
6-21/32”
26-1/8”
8-3/8”
C
4-7/8”
9-1/8”
Size A B C
2/8 32” 4-1/16” 4-7/16”
2/10 34” 5-1/16” 5-7/16”
3/0 36” 6-1/16” 6-7/16”

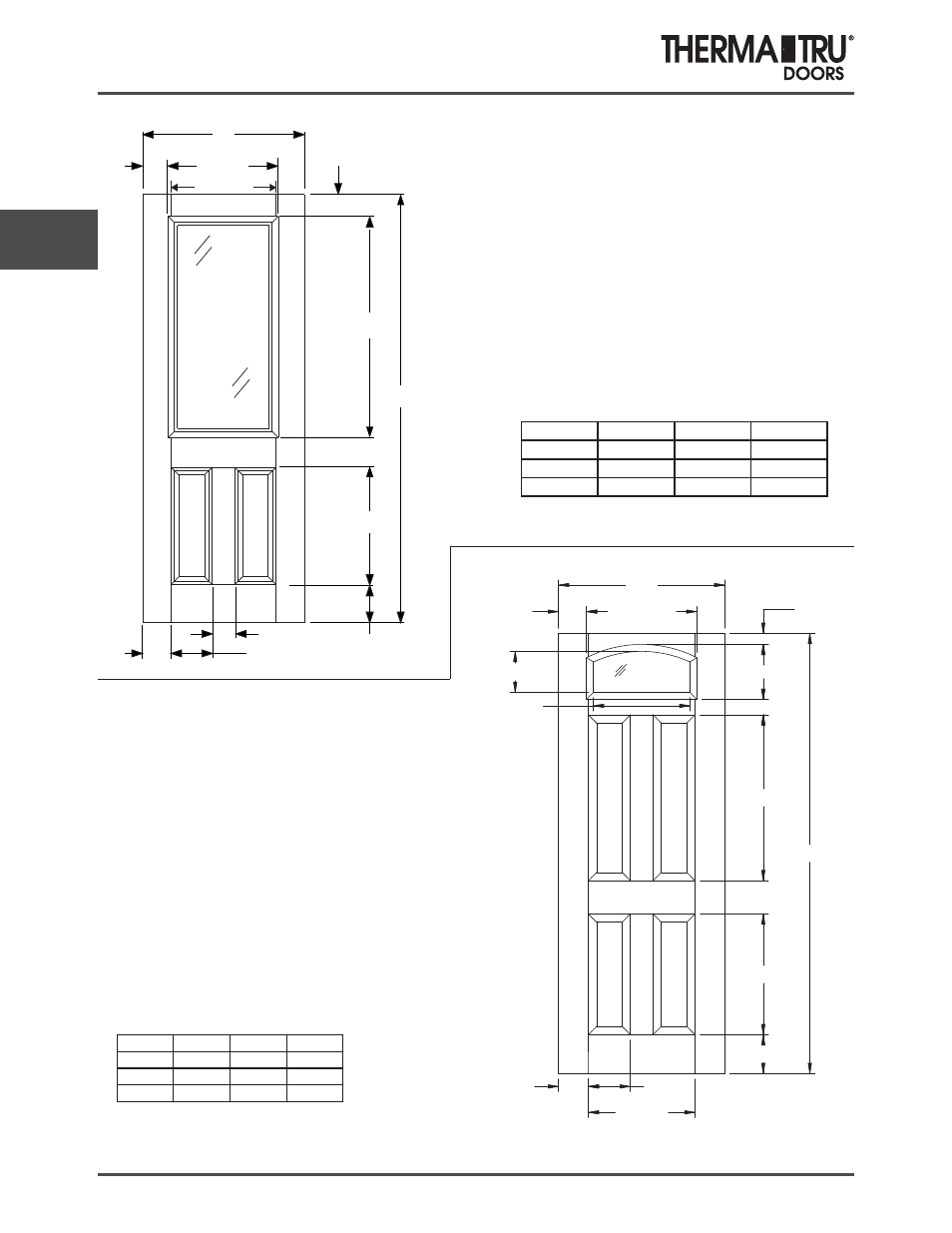

8’ Half Lite 2 Panel
(FC2247)
(Impact-FC2247H)
(Slab-FCM8060)
(Impact-FCM8060H)
23-1/8”
Daylight Opening: 21-1/8" x 46-1/8"
(974 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
8’ Camber Top Lite 4 Panel
(Glass - 2210A)
(Slab - FCM8060)
Daylight Opening: 20-29/32" x 8-29/32"
(170 sq.in.)
Size A B C
2/8 32" 4-1/16" 4-7/16"
2/10 34" 5-1/16" 5-7/16"
3/0 36" 6-1/16" 6-7/16"
95 1/4"
A
B 23 29/32" 2 13/32"
11 29/32"
3 5/16"
35 15/16"
26 5/32"
8 3/8"
8 29/32"
20 29/32"
C 9 1/8"
23 1/8"
Note:
For Optional Grille Locations,
See Arch 1.
