Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size - Manual (Page 37)

Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.37

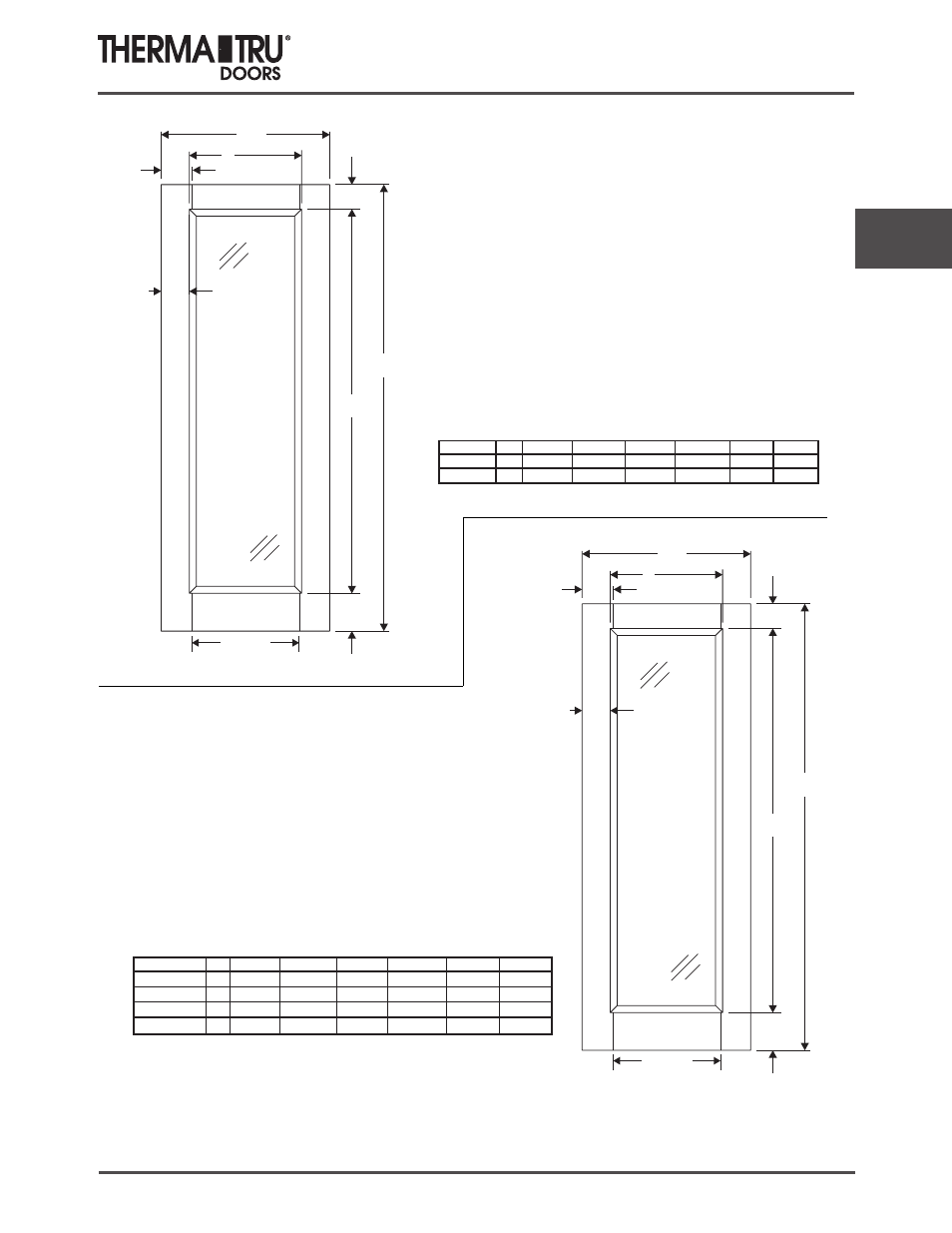

8/0 Fiber-Classic Oak Doors
A
C
95-1/4”
F
D
E
B
G
Size A C F
3/0 36” 24-1/8” 5-15/16” 82-1/8” 8” 5-1/8” 6-7/16”
3/0 Impact 36” 23-7/8” 6-1/16” 81-7/8” 8-1/8” 5-1/4” 6-7/16”
A
C
95-1/4”
F
D
E
B
G
Size A C F
2/8 32” 24-1/8” 3-15/16” 82-1/8” 8” 5-1/8” 4-7/16”
2/8 Impact 32” 23-7/8” 4-1/16” 81-7/8” 8-1/8” 5-1/4” 4-7/16”
2/10 34” 24-1/8” 4-15/16” 82-1/8” 8” 5-1/8” 5-7/16”
2/10 Impact 34” 23-7/8” 5-1/16” 81-7/8” 8-1/8” 5-1/4” 5-7/16”
8’ Full Lite w/ Stile Lines
(Impact - 808H, 818H, 828H)
(Slab - FCO8060)
(Impact - FCO8060H)
Note:
For Optional Grille Locations,
See Arch 1.
Note:
For Optional Grille Locations,
See Arch 1.
8’ Full Lite w/ Stile Lines
(Impact - 808H, 818H, 828H)
(Slab - FCO8060)
(Impact - FCO8060H)
B D E G
A B D E G
23-1/8”
23-1/8”
Daylight Opening: 20-13/16" x 78-13/16"
(1640 sq.in.)
Daylight Opening: 20-13/16" x 78-13/16"
(1640 sq.in.)
