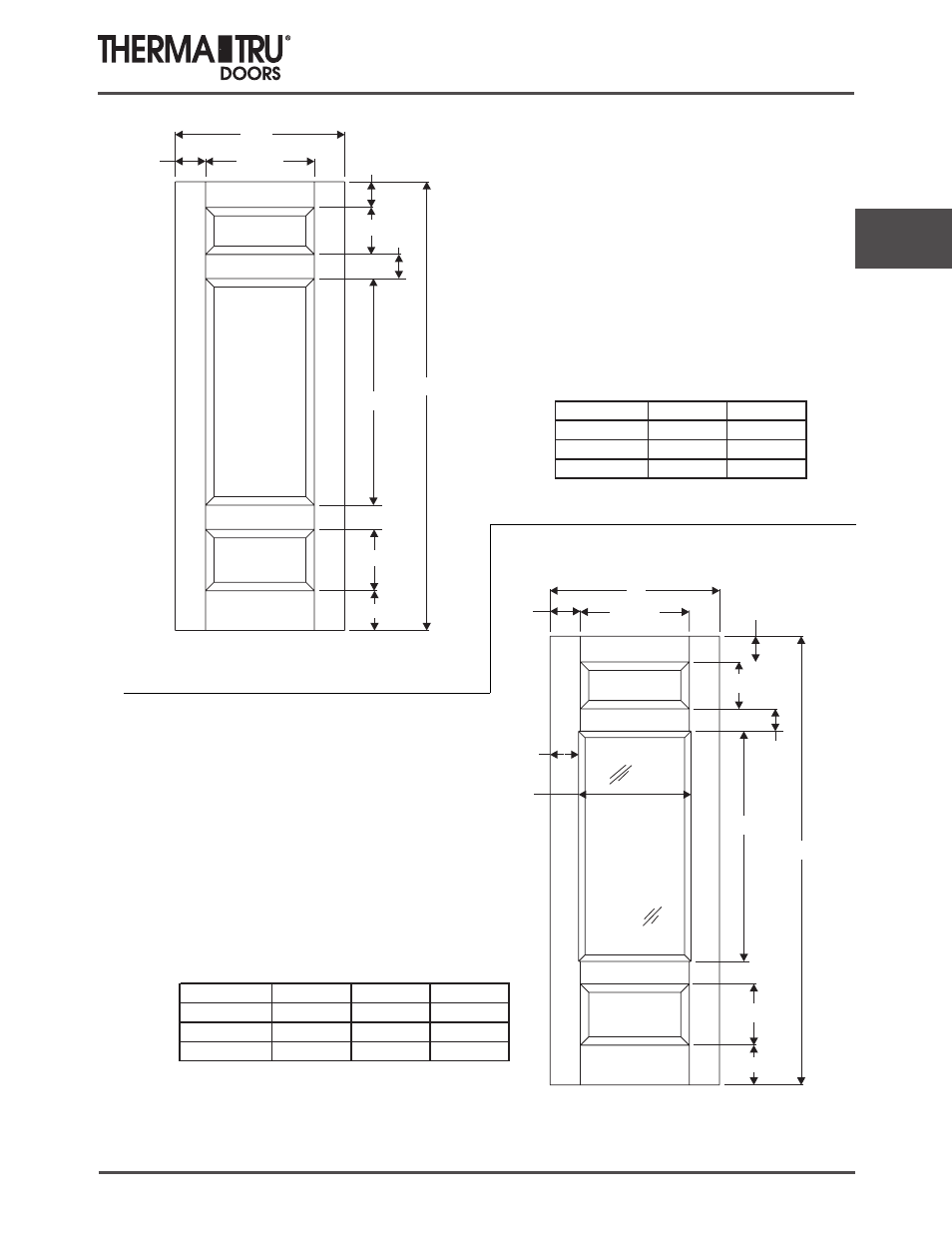

Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.33
8/0 Fiber-Classic Oak Doors
A
B
5-7/16”
5-3/32”
48-1/8”
13”
8-7/16”
10”
23-1/8”
95-1/4”
Size A B
2/8 32” 4-7/16”
2/10 34” 5-7/16”
3/0 36” 6-7/16”
A
B
C
23-7/8”
8-7/16”
13 ”
48-7/8 ”
4-23/32 ”
10”
5-7/16” 23-1/8”
95-1/4”
Size A B C
2/8 32” 4-7/16” 4-1/16”
2/10 34” 5-7/16” 5-1/16”
3/0 36” 6-7/16” 6-1/16”
8’ 3 Panel
(Slab-FCO8030)
(Impact-FCO8030H)
8’ Half Lite 1 Panel Top & Bottom
(2247)
(Impact - 2247H)
(Slab-FCO8030)
(Impact-FCO8030H)
Daylight Opening: 21-1/8" x 46-1/8"
(974 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
