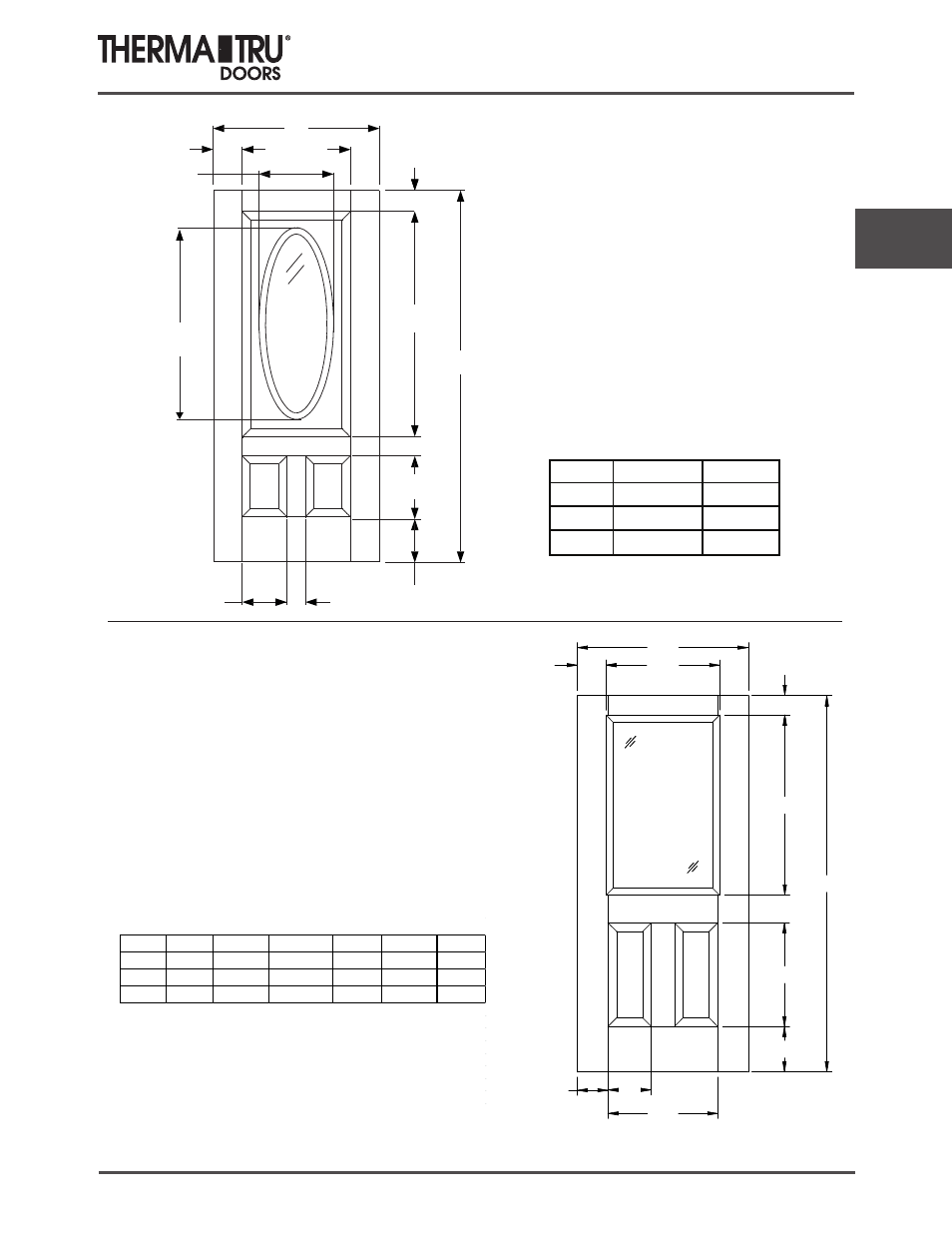

Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.5
6/8 Fiber-Classic Mahogany
Embossed Doors
4” 9-9/16”
79-1/4”
13”
9-17/32”
23-1/8”
4-19/32”
48-1/8”
17-23/32”
41-25/32”
3/4 Captured Oval 2 Panel
(FC1640)
(Slab-FCM031)
A
B
4”
A
32”
34”
36”
Size
2/8
2/10
3/0
B
4-7/16”
5-7/16”
6-7/16”
Daylight Opening: 14-23/32" x 38-25/32"
(442 sq.in.)
A
B C
4 5/32"
37 29/32"
21 13/16"
9 9/16"
79 1/4"
D
Half Lite 2 Panel
(Glass - 2236)
(Impact Glass - 104H, 904H)
(Slab - FCM060)
(Impact Slab - FCM060H)
F
E
Size A B C D E F
2/8 32" 4-1/16" 23-29/32" 4-7/16" 9-1/8" 23-1/8"
2/10 34" 5-1/16" 23-29/32" 5-7/16" 9-1/8" 23-1/8"
3/0 36" 6-1/16" 23-29/32" 6-7/16" 9-1/8" 23-1/8"
Daylight Opening: 20-29/32" x 34-29/32"
(729 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
