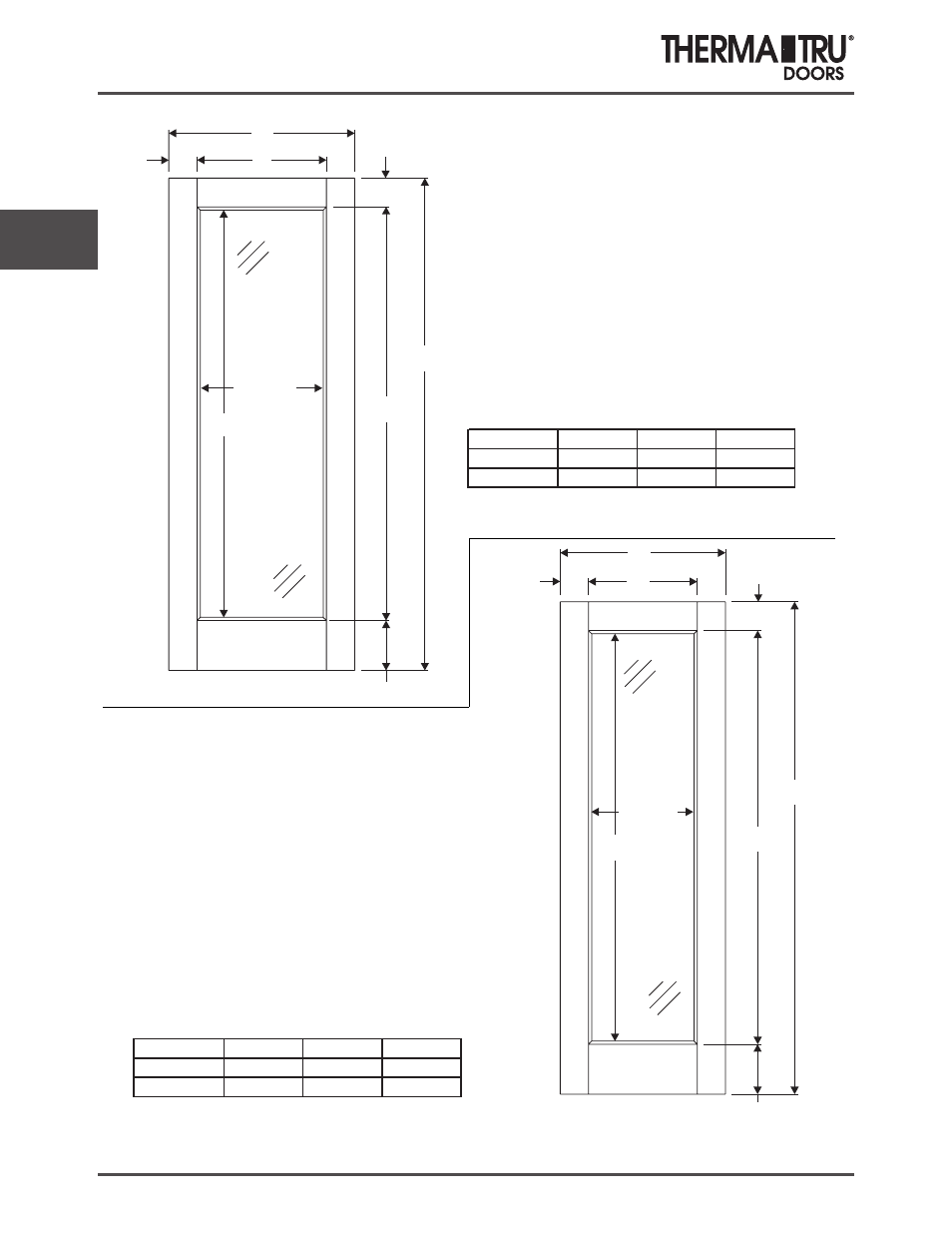

Fiber-Classic
Door Panel
Dimensions
4.40 2014 (BOOK SIZE) Comp 4
8/0 Fiber-Classic Oak
Flush-Glazed Doors
A
C B
95-1/4”
9-5/8”
80-1/16”
5-9/16”
A
C B
95-1/4”
80-1/16”
5-9/16”
9-5/8”
23-13/16”
78-13/16”
78-13/16”
19-13/16”
Size A B C
2/10 34” 25-1/16” 4-15/32”
3/0 36” 25-1/16” 5-15/32”
Size A B C
2/6 30” 21-1/16” 4-15/32”
2/8 32” 21-1/16” 5-15/32”
Note:
For Optional Grille Locations,
See Arch 1.
8’ Full Lite Flush-Glazed
(Slab - FN83025, FN82125)
8’ Full Lite Flush-Glazed
(Slab - FN82821, FN82621)
Daylight Opening: 23-13/16" x 78-13/16"
(1877 sq.in.)
Daylight Opening: 19-13/16" x 78-13/16"
(1561 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
