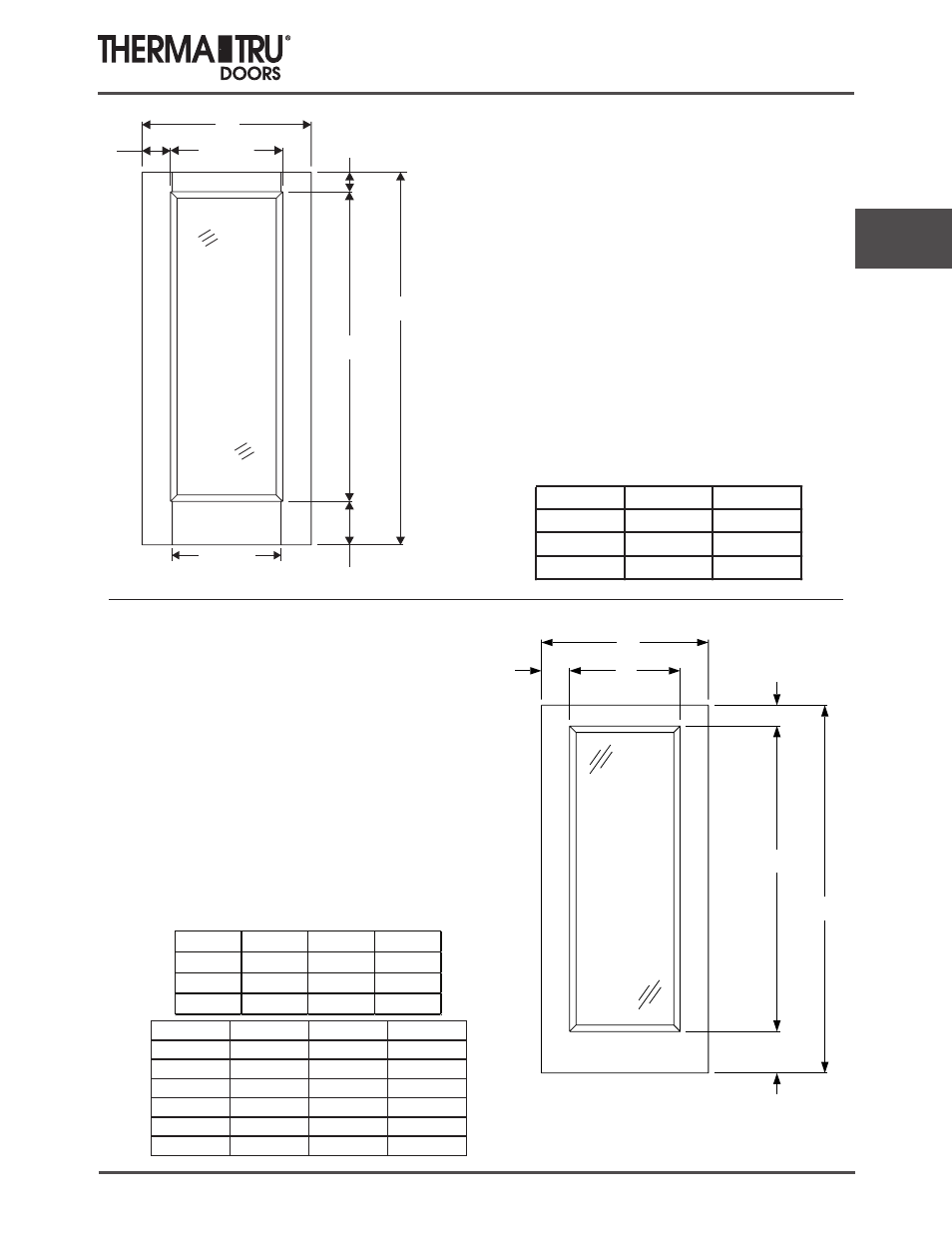

Fiber-Classic
Door Panel
Dimensions
Comp 4
2014 (BOOK SIZE)
4.3
6/8 Fiber-Classic Mahogany
Embossed Doors
A
B
23-7/8”
4-5/32”
79-1/4”
65-7/8”
9-7/32”
Size
A
B
2/8
32”
4-1/16”
2/10
34”
5-1/16”
3/0
36”
6-1/16”
Note:
For Optional Grille Locations,
See Arch 1.
Full Lite w/ Stile Lines
(Glass - FC2264)
(Impact Lite-108H, 118H,
198H, 916H, 128H)
(Slab-FCM060)
(Impact-FCM060H)
23-1/8”
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
B
A
C
F
65-7/8”
D
E
Size
A
B
C
*2/0
24”
4-1/16”
15-7/8”
*2/4
28”
5-1/16”
17-7/8”
2/6
30”
4-1/16”
21-7/8”
2/8
32”
4-1/16”
23-7/8”
2/10
34”
5-1/16”
23-7/8”
3/0
36”
6-1/16”
23-7/8”
*Impact slab not available.
Full Lite Flush
(Impact 140H, 141H, 1464H)
(FC1664, FC2064, FC2264)
(Impact 108NH, 118NH, 128NH, 916NH)
(Impact 064H, 108H, 118H, 128H, 198H, 916H)
(Slab-FCM010)
(Impact-FCM010H)
Daylight Opening: 14-31/32" x 62-31/32"
(1664) (941 sq.in.)
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
Daylight Opening: 12-13/16" x 62-13/16"
(1464) (805 sq.in.)
Daylight Opening: 18-29/32" x 62-29/32"
(2064) (1189 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
Height
D
E
F
*6/6 76-23/32" 6-11/16" 4-5/32"
6/8
79-1/4" 9-7/32" 4-5/32"
7/0
83-1/4" 10-11/32" 7-1/32"
