6/8 fiber-classic oak designline doors – Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size User Manual
Page 29
Fiber-Classic
Door Panel
Dimensions
Comp 4
2014 (BOOK SIZE)

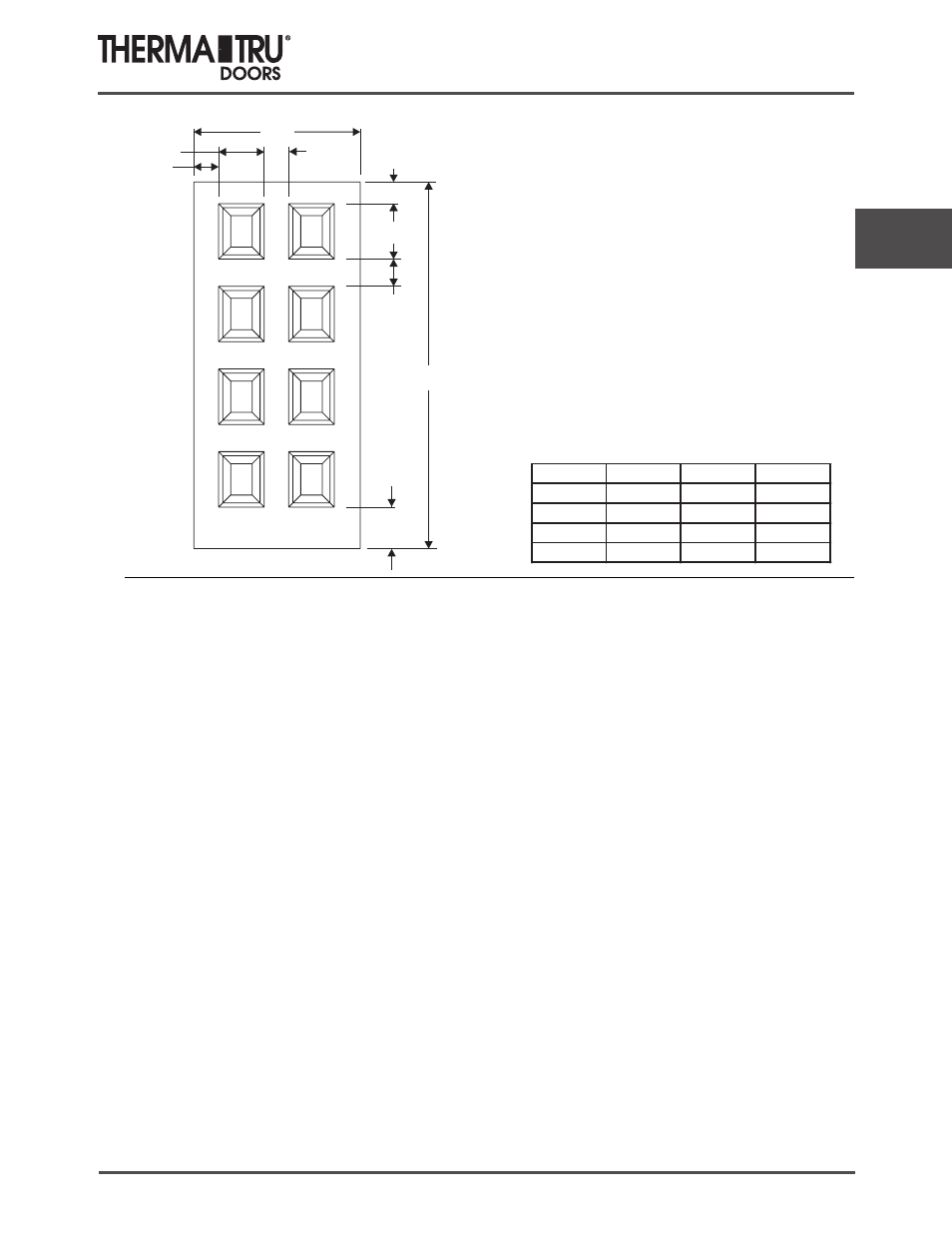

4.29
6/8 Fiber-Classic Oak
Designline Doors
B
9-7/8”
A
4-11/16”
12”
79-1/4”
5-7/8”
8-29/32”
C
Size
A
B
C
2/6
30”
4-5/16”
1-5/8”
2/8
32”
5-5/16”
1-5/8”
2/10
34”
4-1/2”
5-1/4”
3/0
36”
5-1/2”
5-1/4”
Designline 8 Panel Flush
(DP0121)
(Slab-FCO010)
