Fiber-Classic
Door Panel
Dimensions
Comp 4 2014 (BOOK SIZE) 4.23
6/8 Fiber-Classic Oak
Embossed Doors
A
B C
G
37 29/32"
21 13/16"
H
J
D

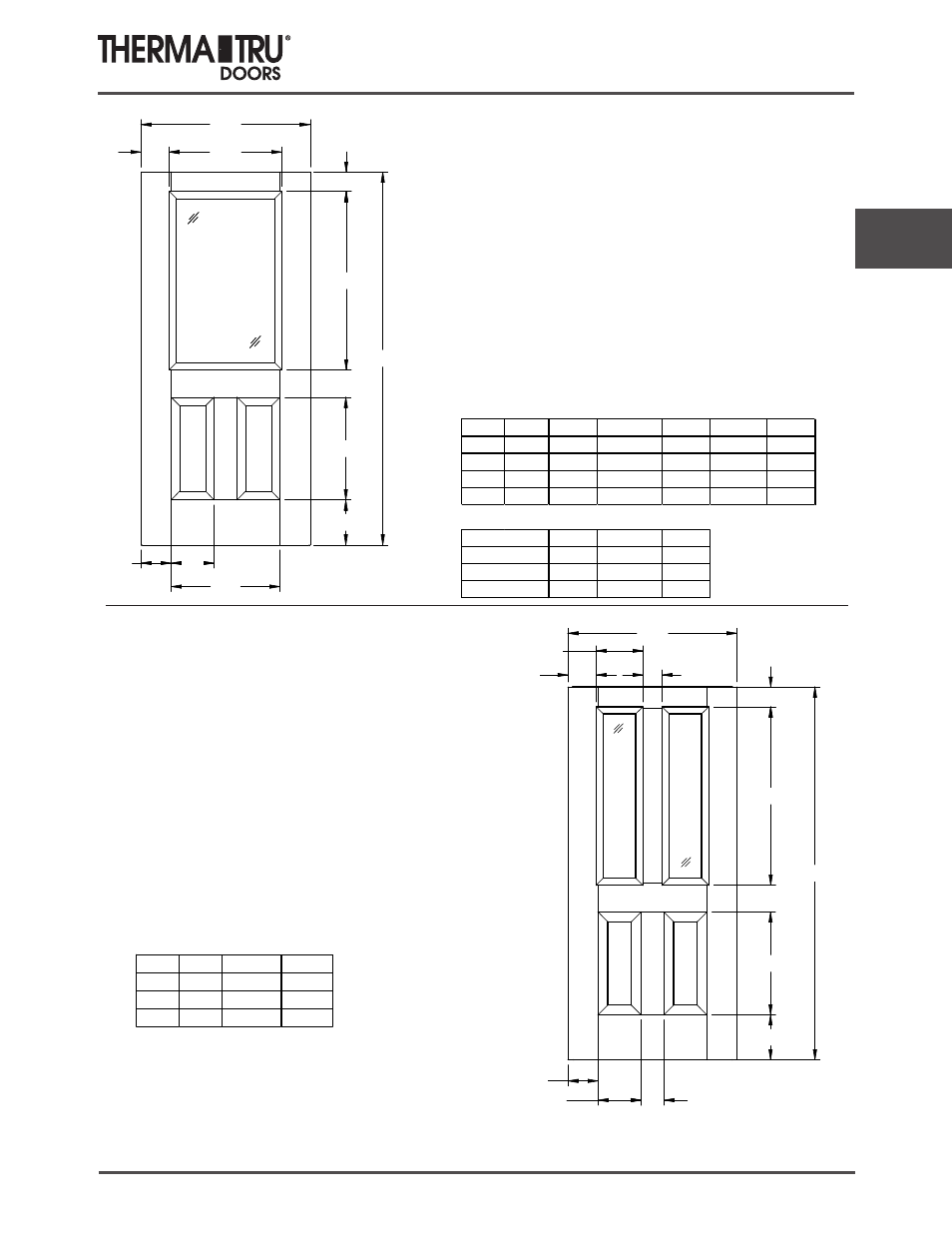

Half Lite 2 Panel
(Glass - 2036, 2236)
(Impact Glass - 104H, 612H, 904H)
(Slab - FCO060, FCO400, FCO020,
FCO06E, FCO060N)
(Impact Slab - FCO400H, FCO060H,
FCO060NH)
Size A B C D E F
2/6N 30" 4-1/16" 21-7/8" 4-1/2" 8-13/16" 21"
2/8 32" 4-1/16" 23-29/32" 4-7/16" 9-1/8" 23-1/8"
2/10 34" 5-1/16" 23-29/32" 5-7/16" 9-1/8" 23-1/8"
3/0 36" 6-1/16" 23-29/32" 6-7/16" 9-1/8" 23-1/8"
G H J
4-5/32" 9-9/16" 79-1/4"
3" 10-29/32" 79-1/4"
7" 10-29/32" 83-1/4"
*Impact slab not available. ~Not available in 2/6N.
7/0*~
6/8 Elevated*~
6/8
Height
F
E
Daylight Opening: 20-29/32" x 34-29/32"
(2236) (729 sq.in.)
Daylight Opening: 19-1/8" x 35-1/8"
(2036) (672 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
79 1/4"
A
21 13/16"
9 9/16"
C
9 1/8" 4 7/8"
Twin Half Lite 2 Panel
(Glass - 0836)
(Slab - FCO400)
Size A B C
2/8 32" 4-11/32" 4-7/16"
2/10 34" 5-11/32" 5-7/16"
3/0 36" 6-11/32" 6-7/16"
37 29/32"
4 5/32"
B
9 29/32"
4 3/32"
Daylight Opening: 6-29/32" x 34-29/32" (per lite)
(Total 482 sq.in.)
