Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size - Manual (Page 30)

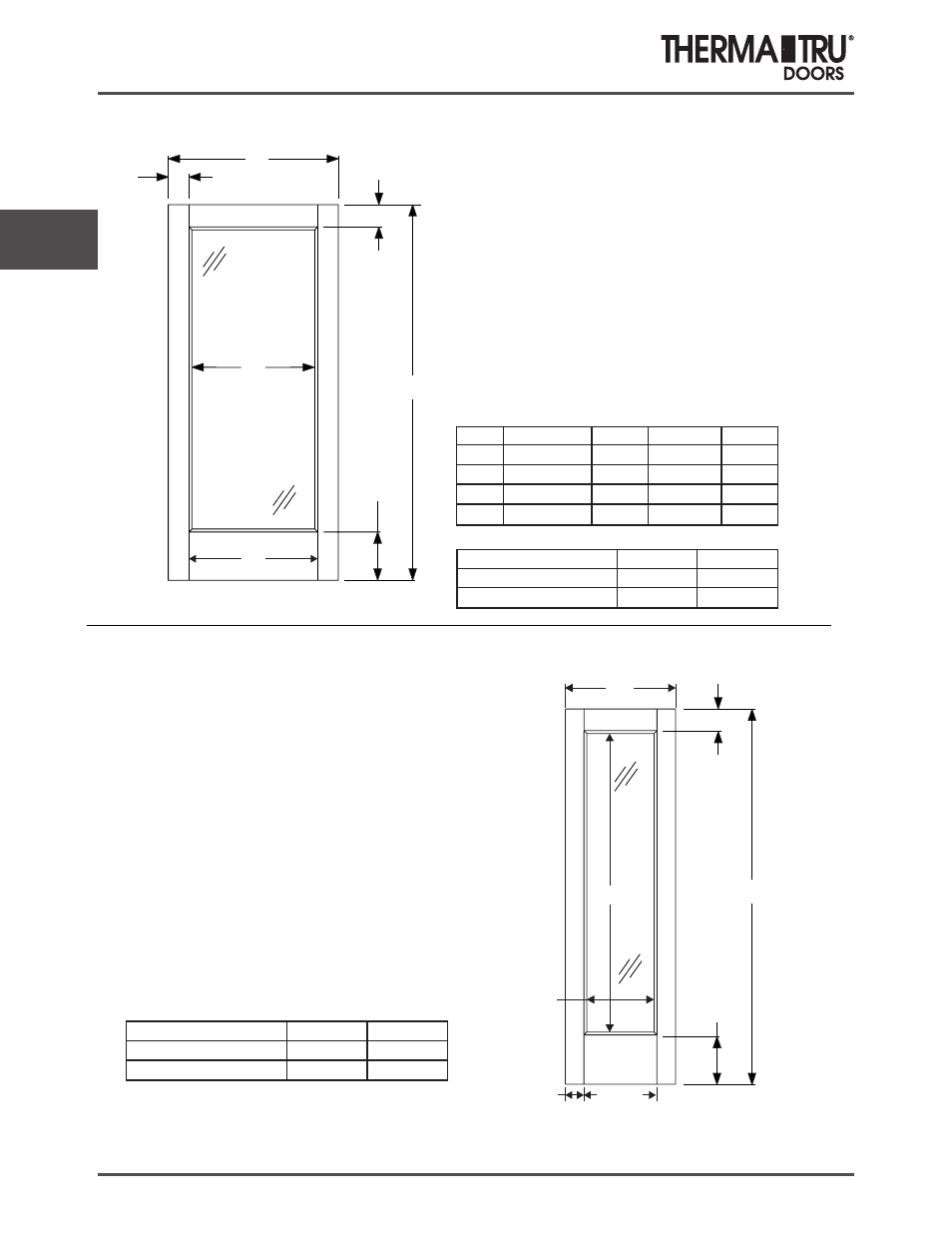

Fiber-Classic
Door Panel
Dimensions
4.30 2014 (BOOK SIZE) Comp 4
6/8 Fiber-Classic Oak
Flush-Glazed Doors
A
B
4-23/32”
E
D
C
*Only available in 6/6.
D
24”
63-5/16”
14-1/4”
E
4-23/32”
D E
7-5/8” 76-23/32”
10-5/32” 79-1/4”
Height
6/6
6/8
D E
7-5/8” 76-23/32”
10-5/32” 79-1/4”
Height
6/6
6/8
Size A C
2/6 30” 4-3/8” 20-1/32”
2/8 32” 5-3/8” 20-1/32”
*2/10 34” 4-5/16” 24-5/32”
3/0 36” 4-3/8” 25-31/32”
Full Lite Flush-Glazed
Full Lite Flush-Glazed
(Slab - FN_2014)
21-1/4”
21-1/4”
25-3/8”
27-1/4”
F
F
B
15-1/2” 4-1/4”
Daylight Opening: 20-1/32" x 63-1/8"
(1264 sq.in.)
Daylight Opening: 24-5/32" x 63-1/8"
(1524 sq.in.)
Daylight Opening: 25-31/32" x 63-3/16"
(1640 sq.in.)
Daylight Opening: 14-1/4" x 63-1/8"
(899 sq.in.)
Note:
For Optional Grille Locations,
See Arch 1.
(Slab - FN_3027, FNR2125,
FN_2820, FN_2620)
Note:
For Optional Grille Locations,
See Arch 1.
