Fiber-Classic
Door Panel
Dimensions
4.18 2014 (BOOK SIZE) Comp 4
6/8 Fiber-Classic Oak
Embossed Doors
B
A
23-7/8”
C
65-7/8”
E
D
Size A
2/8 32” 4-1/16”
2/10 34” 5-1/16”
3/0 36” 6-1/16”
Height C D E
6/8 4-5/32” 9-7/32” 79-1/4”
6/8Elevated 3-1/32” 10-11/32” 79-1/4”
7/0 7-1/32” 10-11/32” 83-1/4”
Note:
For Optional Grille Locations,
See Arch 1.

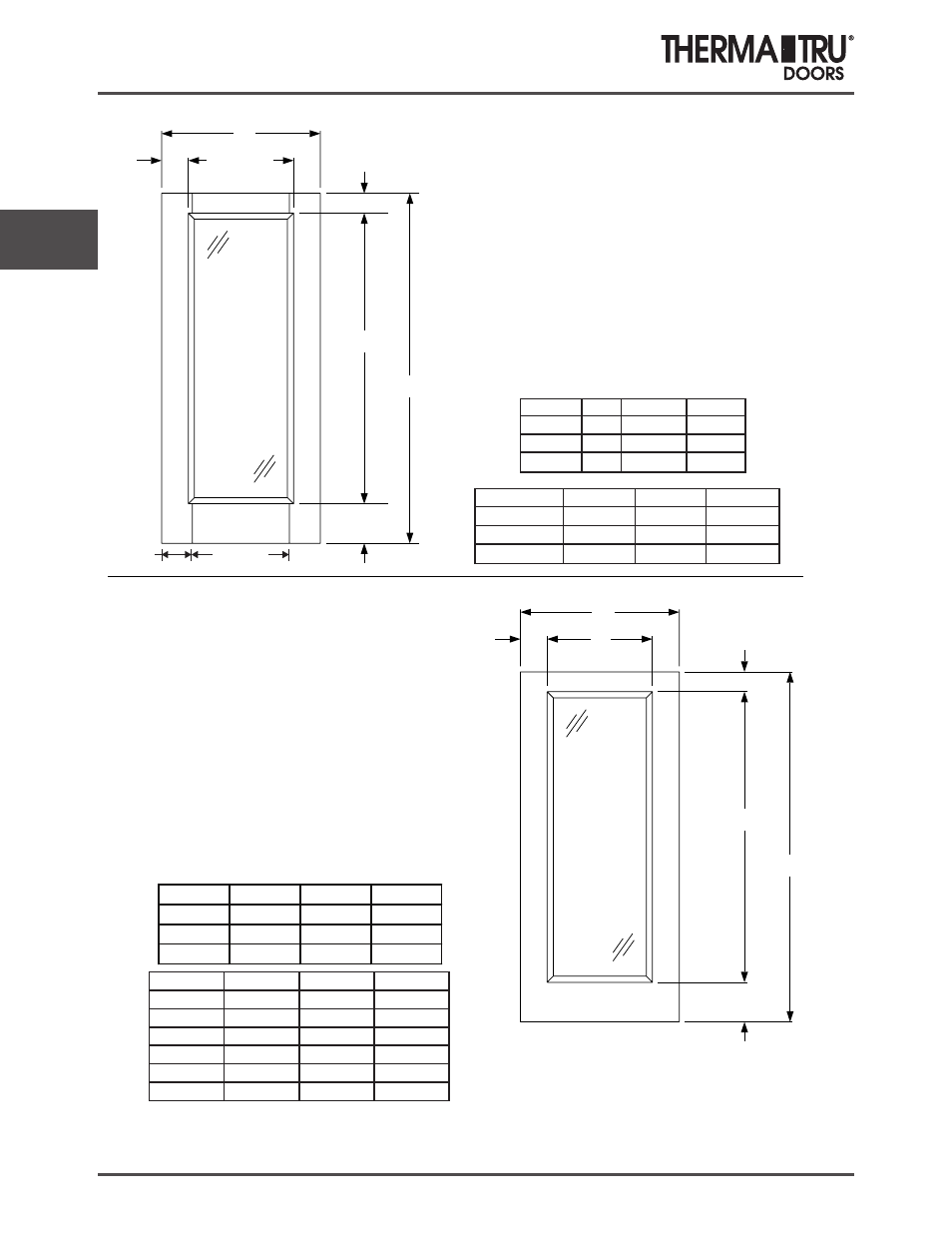

Full Lite w/ Stile Lines
(2264)
(Impact - 118H, 108H, 128H, 198H, 916H, 064H)
(Slab-FCO020, FCO400, FCO060)
(Impact-FCO060H)
23-1/8”
B F
4-7/16”
5-7/16”
6-7/16”
F
Daylight Opening: 20-15/16" x 62-15/16"
(1317 sq.in.)
B
A
C
F
65-7/8”
D
E
Size A B C
*2/0 24” 4-1/16” 15-7/8”
*2/4 28” 5-1/16” 17-7/8”
2/6 30” 4-1/16” 21-7/8”
2/8 32” 4-1/16” 23-7/8”
2/10 34” 5-1/16” 23-7/8”
3/0 36” 6-1/16” 23-7/8”
Note:
For Optional Grille Locations,
See Arch 1.
Full Lite Flush
(Impact 140H, 141H, 1464H)
(FC1664, FC2064, FC2264)
(Impact 108NH, 118NH, 128NH, 916NH)
(Impact 064H, 108H, 118H, 128H, 198H, 916H)
(Slab-FCO010)
(Impact-FCO010H)
Daylight Opening: 14-31/32" x 62-31/32"
(1664) (941 sq.in.)
Daylight Opening: 20-15/16" x 62-15/16"
(2264) (1317 sq.in.)
Daylight Opening: 12-13/16" x 62-13/16"
(1464) (805 sq.in.)
Daylight Opening: 18-29/32" x 62-29/32"
(2064) (1189 sq.in.)
*Impact slab not available.
Height D E F
*6/6 76-23/32" 6-11/16" 4-5/32"
6/8 79-1/4" 9-7/32" 4-5/32"
7/0 83-1/4" 9-13/16" 7-1/2"
