Therma-Tru COMP 4 Fiber-Classic Door Panel Dimensions - Book Size - Manual (Page 8)

Fiber-Classic
Door Panel
Dimensions

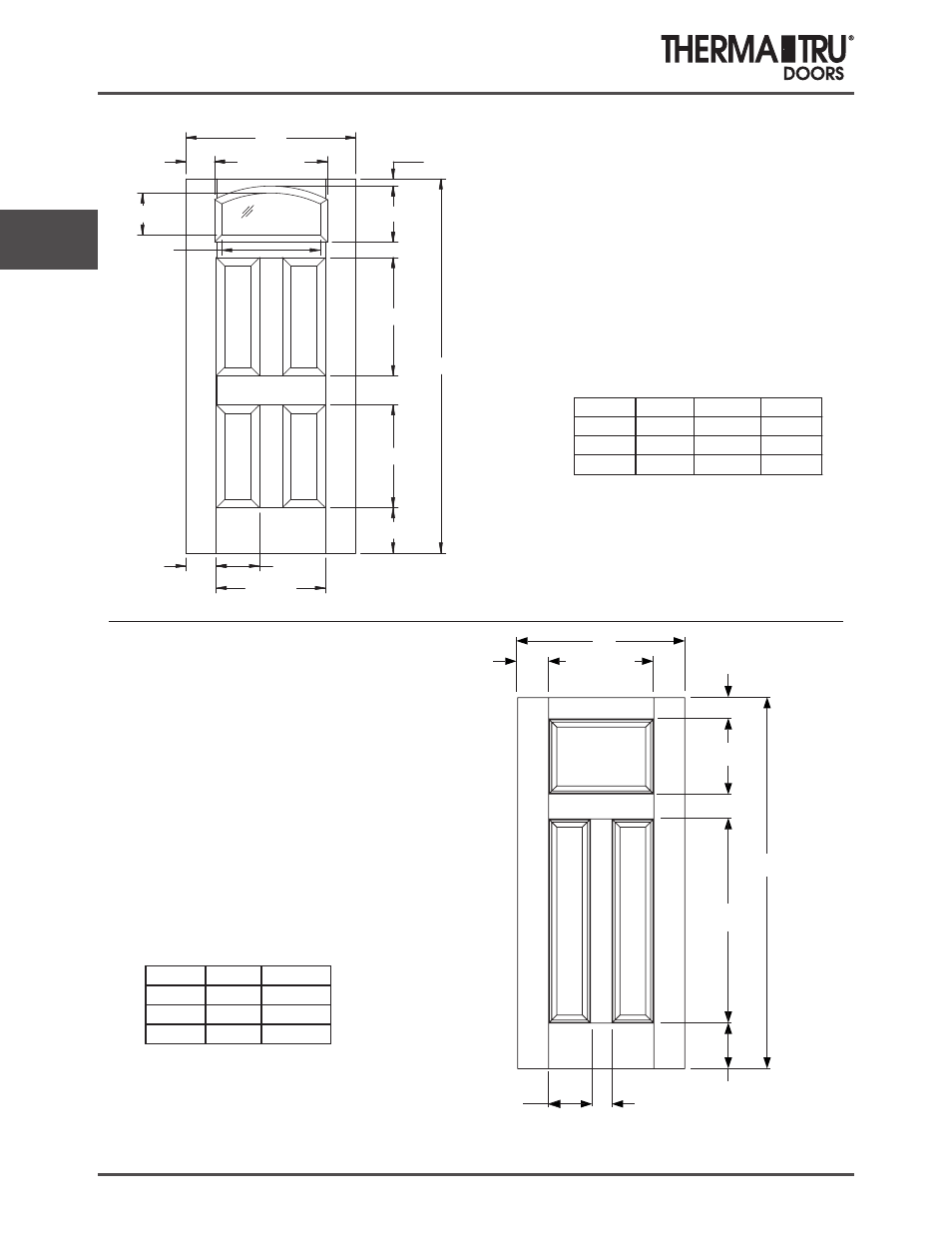

4.8 2014 (BOOK SIZE) Comp 4
6/8 Fiber-Classic Mahogany
Embossed Doors
Camber Top Lite 4 Panel
(Glass - 2210A)
(Slab - FCM060)
Daylight Opening: 20-29/32" x 8-29/32"
(170 sq.in.)
Size A B C
2/8 32" 4-1/16" 4-7/16"
2/10 34" 5-1/16" 5-7/16"
3/0 36" 6-1/16" 6-7/16"
79 1/4"
A
B 23 29/32"
11 29/32"
3 9/32"
25"
21 13/16"
9 9/16"
8 29/32"
20 29/32"
C
1 1/2"
9 1/8"
23 1/8"
Note:
For Optional Grille Locations,
See Arch 1.
A
B
4-17/32”
22-11/32”
4-17/32”
79-1/4”
16-3/32”
5-11/32”
43-23/32”
9-9/16”
8-29/32”
Size A B
2/8 32” 4-27/32”
2/10 34” 5-27/32”
3/0 36” 6-27/32”
2 Panel Craftsman
(Slab - FCM203)
(Impact - FCM203H)
