TerraWave BTRM-200 User Manual
Page 14
VENTEV INNOVATIONS BTRM200 Battery Test Remote Monitoring System – User Guide V1.0
14

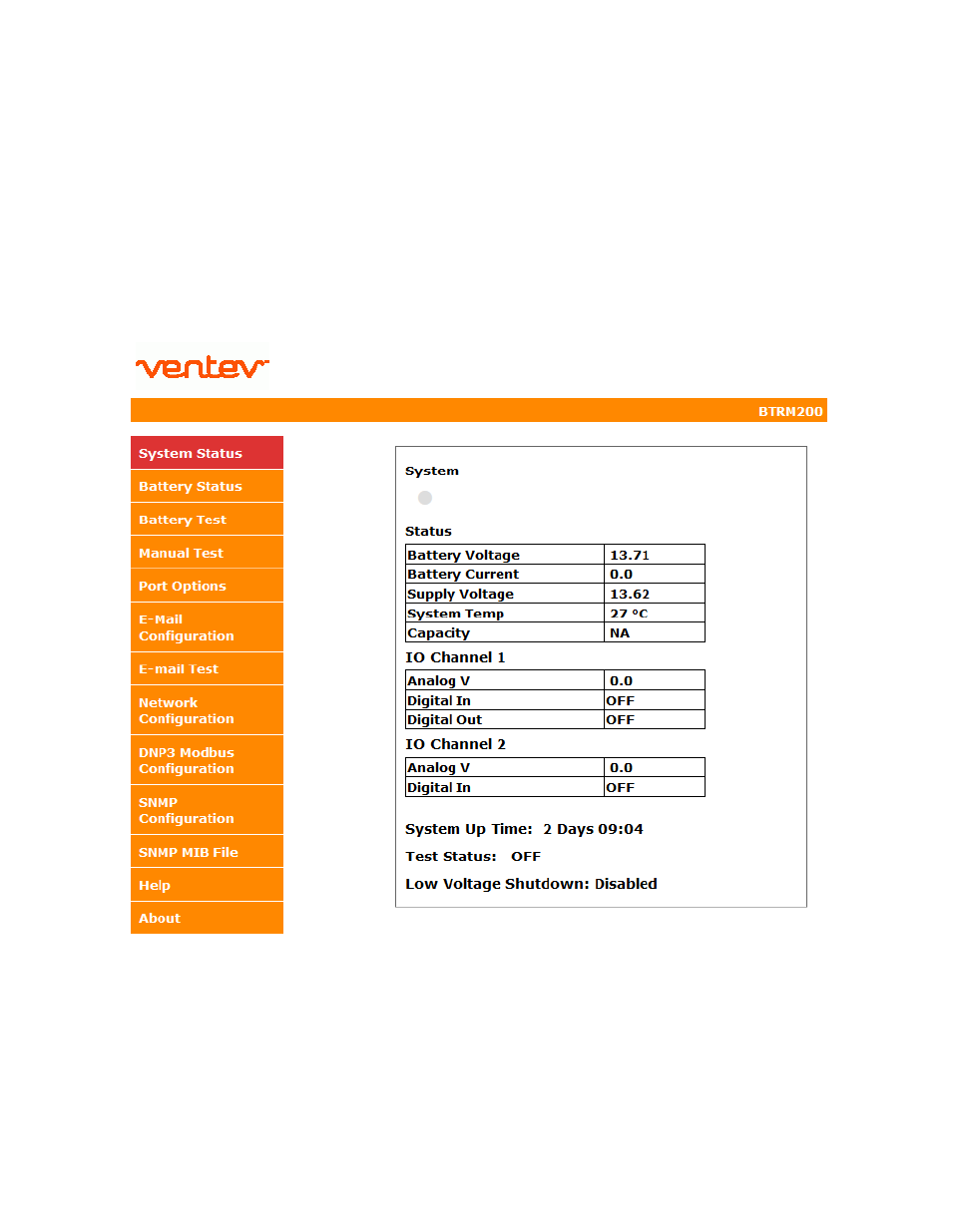

The Screenshots included with each sub heading will explain the different menus of the
BTRM user interface. This interface allows you to remotely configure and change
settings across the network.
7.1. System Status Page
This screen displays an overview of the status on the BTRM. You can quickly see any
alarms occur by watching this screen.
7.1.1. System Status Indicator
If the web browser has a connection to the unit, the system indicator will toggle
between grey and green once a second.
7.1.2. Battery Voltage
This is the measurement of the battery voltage.
