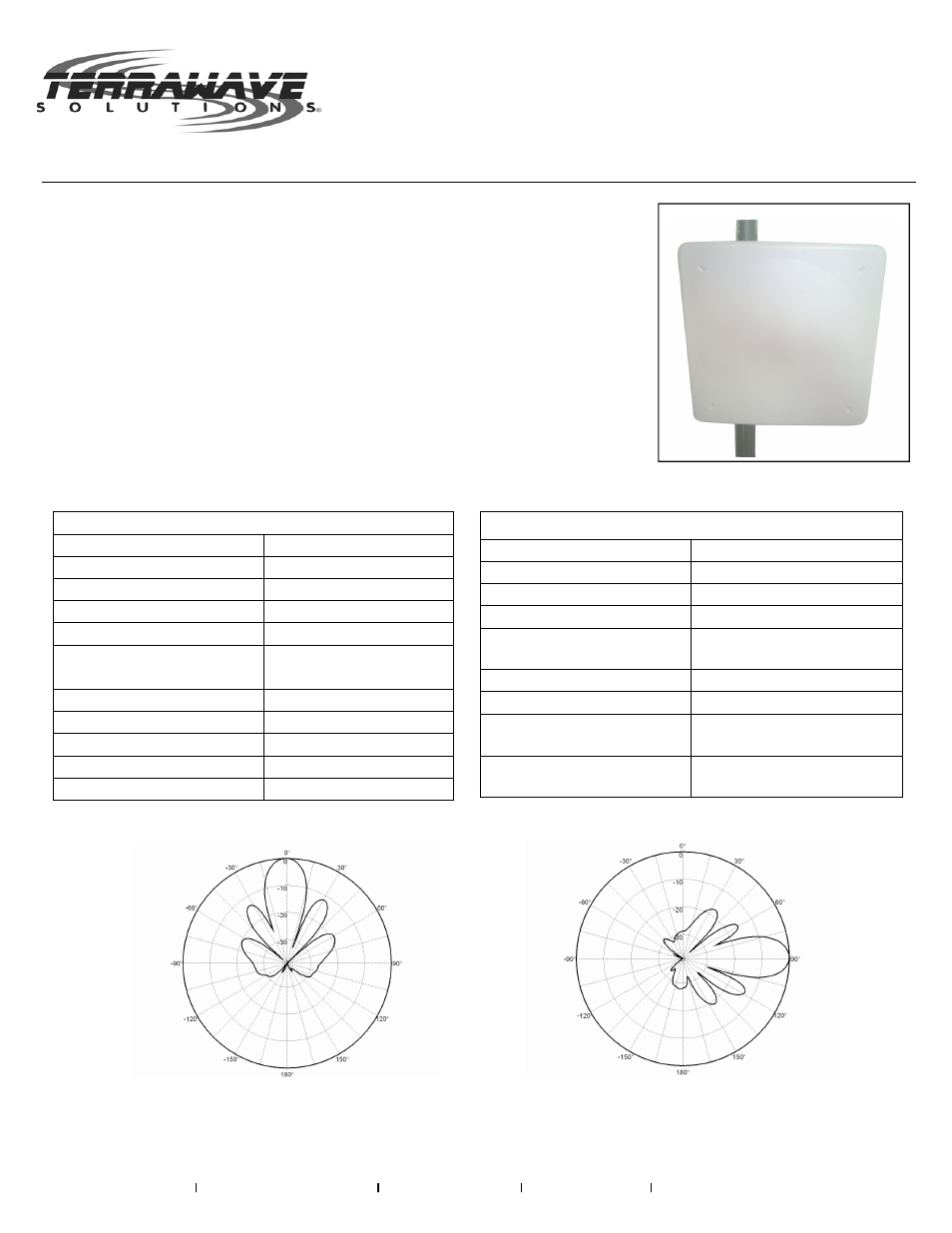

TerraWave T24190P10006GT - Manual

TerraWave Solutions
®
2.4 GHz 19 dBi Panel Antenna with N-Style Jack Connector
TerraWave’s 2.4 GHz 19 dBi directional antenna is perfect for a variety of
wireless applications. This antenna is single linear polarization and can be
mounted in either a vertical or horizontal polarization configuration. It consists
of a low cost, high performance circuit design enclosed in a UV stabilized ABS
plastic radome with aluminum backplane for superior durability. Meets IP67
weatherproofing requirements and includes a pole mounting kit.
All TerraWave antennas are covered by the Company’s two-year TerraNet
warranty program. For questions and to purchase product, contact a wireless
networking solutions sales engineer at 210-375-8482, 800-851-4965 or
[email protected]. Visit www.terrawave.com for additional information.
E-Plane H-Plane
Electrical Specifications
Model
T24190P10006GT
Frequency Range 2.4 - 2.5 GHz
Gain 19 dBi
Vertical Beamwidth 18°
Horizontal Beamwidth 18°
Polarization
Single linear, horizontal
or vertical
VSWR ≤ 1.5:1
Front-to-Back Ratio > 30 dB
Cross Polarization > 30 dB
Power Rating 30 Watts
Impedance 50 Ohms
Mechanical and Environmental Specifications
Dimensions (LxWxD)
13.8" x 13.8” x 1”
Weight 3.1 lbs.
Connector Type Integrated N-Style Jack
Backplane Aluminum
Radome
Gray UV stabilized ABS
plastic
Wind Survivability 125 mph
Wind Load 1.90 ft²
Operating Temperature
Range
-40°F to +158°F
Pole Mount Diameter
Range
1.40" to 1.97"
www.terrawave.com Email: [email protected] Phone: 210-375-8482 Fax: 210-375-8482 10521 Gulfdale, San Antonio, TX 78216
