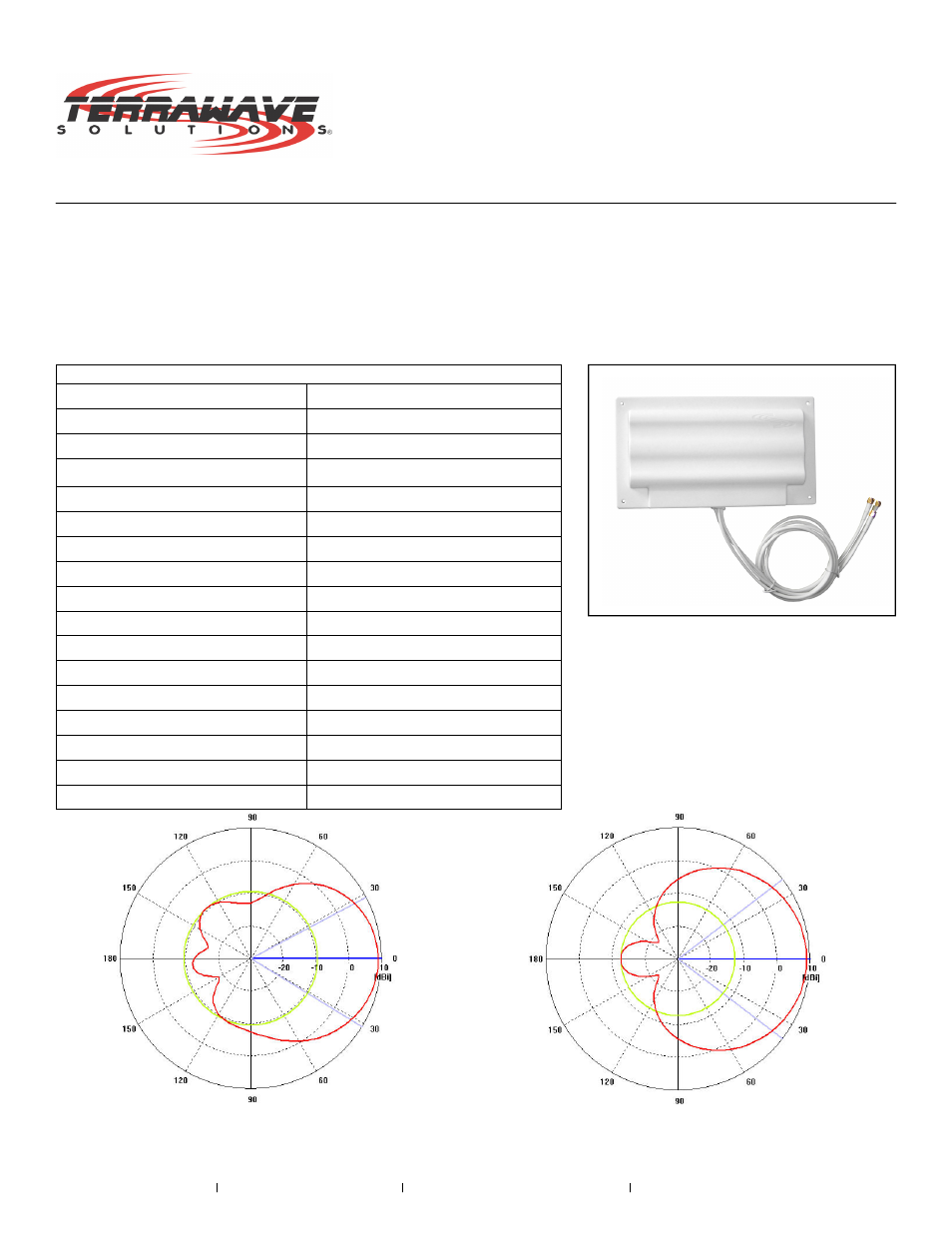

TerraWave T58070MP13620 - Manual

TerraWave Solutions® 802.11n 5 GHz 7 dBi MIMO Patch Antenna with RPSMA Plug Connectors
Vertical Radiation Pattern Horizontal Radiation Pattern
Specifications
Model T58070MP13620
Frequency Range 5100 ~ 5850 MHz
Bandwidth 750 MHz
Gain 7 dBi
Vertical Beamwidth 60°
Horizontal Beamwidth 75°
Front-to-back Ratio ≥ 18 dB
VSWR ≤ 2
Nominal Impedance 50 Ohms
Polarization Vertical
Max Power 50 Watts
Connector RPSMA Plugs with 39” Pigtails
Dimensions 8.9” x 4.9” x 0.8”
Weight 1.45 lbs
Operating Temperature Range -22°F to +158°F
Mounting Style Wall Mount / Mast Mount
Wind Load 134 mph
TerraWave’s 5 GHz multiple-input and multiple-output (MIMO) patch antenna is designed to operate with many
manufacturers’ enterprise-class 802.11n MIMO access points (APs). The antenna features three integrated 5 GHz
patch antennas in one enclosure, making it an ideal and aesthetically pleasing antenna to support demanding indoor
or outdoor applications in next generation IEEE 802.11n wireless communication systems. Includes TerraWave’s
Universal Articulating Mount for an easy and flexible wall/mast mount installation. Every TerraWave antenna is
covered by the Company’s two-year TerraNet warranty program. For questions and to purchase product, contact a
regional sales executive at 210-375-8482, 800-851-4965 or sales @terrawave.com. Visit www.terrawave.com for
additional information.
