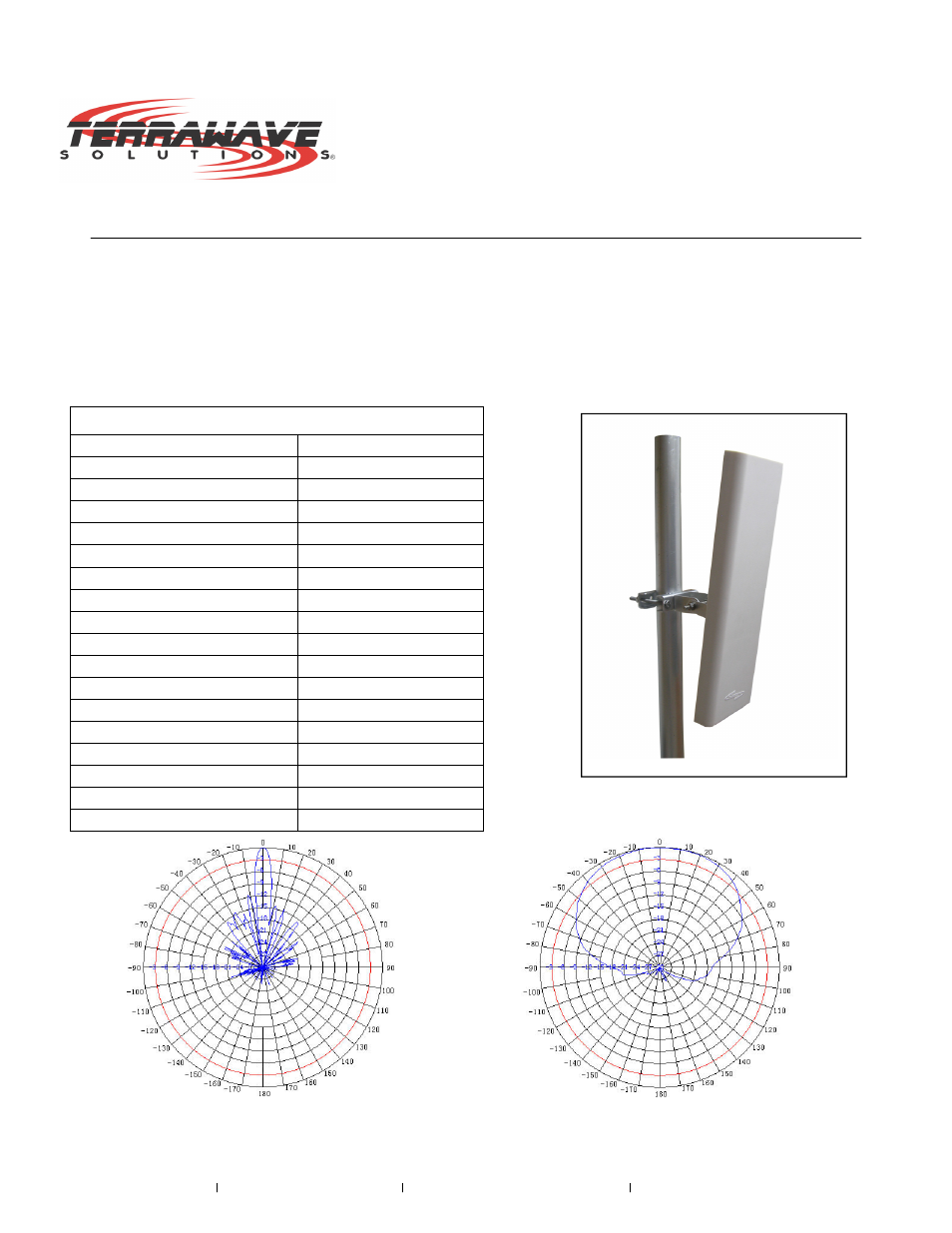

TerraWave M5160160P10006 - Manual

TerraWave Solutions
®
4.9-5.85 GHz 16 dBi 90 Degree
Sector Panel Antenna with N-Style Jack Connector
E-Plane H-Plane
Specifications
Model M5160160P10006
Frequency Range 4900 ~ 5850 MHz
Bandwidth 950 MHz
Gain 16 dBi
Horizontal Beamwidth 90°
Vertical Beamwidth 7°
VSWR ≤ 1.8
Nominal Impedance 50 Ohms
Maximum Power Rating 100 Watts
Polarization Vertical
Connector N-Style Jack
Dimensions 18” x 6” x 1.5”
Wind Load 120 mph
Radome ABS
Operating Temperature Range -22°F ~ 158°F
Mast Mount Diameter Ш2.0” ~ Ш2.75”
Front-to-Back Ratio ≥ 25 dB
Weight 1.5 lbs
TerraWave’s 4.9-5.85 GHz panel antenna provides 90-degree horizontal beamwidth which is perfect for a variety of
outdoor wireless applications. These vertically polarized sector antennas consist of a low cost, high performance circuit
design enclosed in a UV stabilized ABS plastic radome. Includes an articulating mast mount and integrated N-Style Jack
connector. Every TerraWave antenna is covered by the Company's two-year TerraNet warranty program. For questions
and to purchase product, contact a regional sales executive at 210-375-8482, 800-851-4965 or [email protected].
Visit www.terrawave.com for additional information.
