TerraWave M5120120P10006180 - Manual

TerraWave Solutions
®
4.9-5.85 GHz 12 dBi 180 Degree
Sector Panel Antenna with N-Style Jack Connector
TerraWave’s 4.9-5.85 GHz panel antenna provides 180-degree horizontal beamwidth which is perfect for a
variety of outdoor wireless applications. These vertically polarized sector antennas consist of a low cost, high
performance circuit design enclosed in a UV stabilized ABS plastic radome. Includes an articulating mast
mount and integrated N-Style Jack connector. Every TerraWave antenna is covered by the Company’s two-
year TerraNet warranty program. For questions and to purchase product, contact a regional sales executive at
210-375-8482, 800-851-4965 or sales @terrawave.com. Visit www.terrawave.com for additional information.

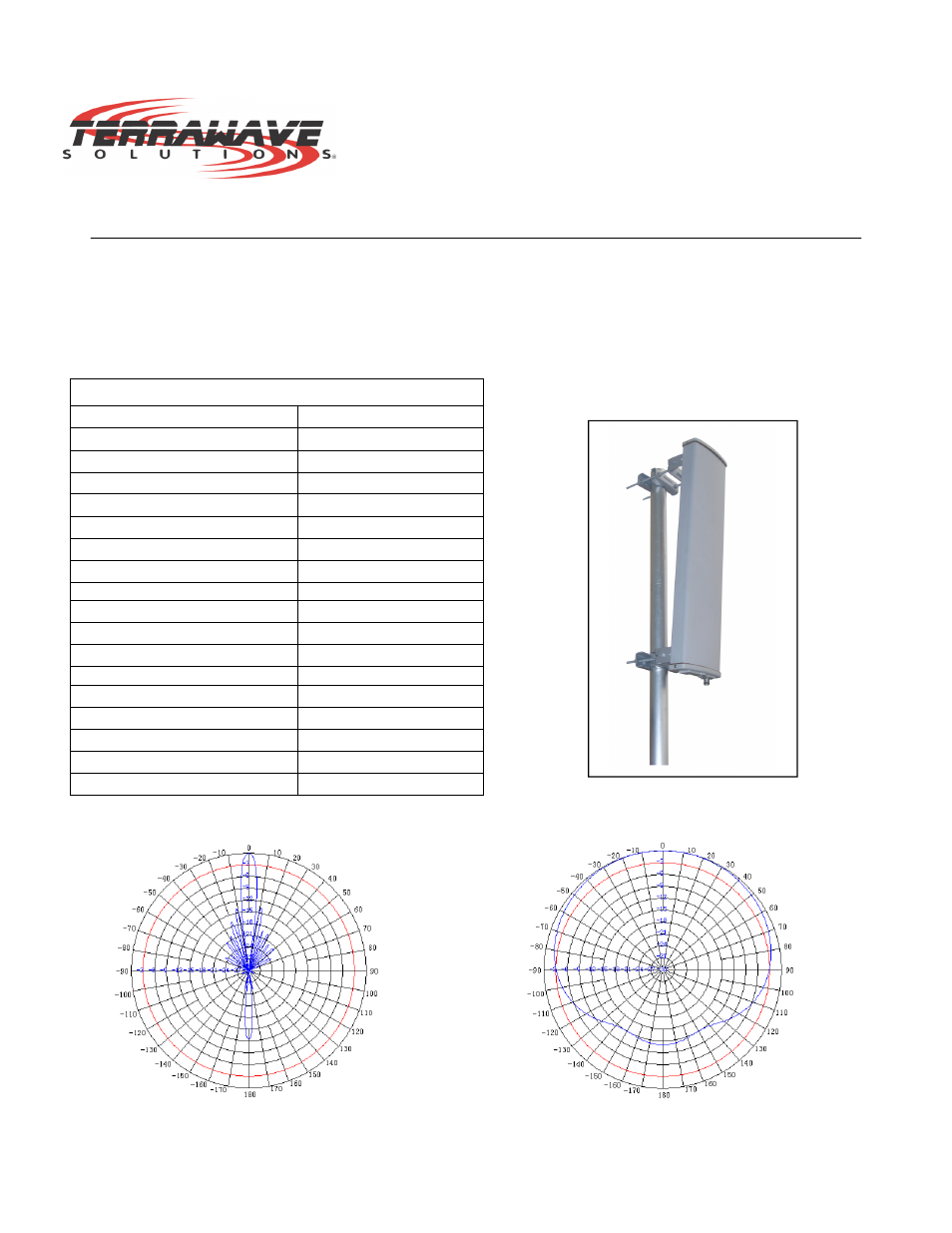

E-Plane H-Plane
Specifications
Model M5120120P10006180
Frequency Range 4900 ~ 5850 MHz
Bandwidth 950 MHz
Gain 12 dBi
Horizontal Beamwidth 180°
Vertical Beamwidth 7°
VSWR ≤ 2
Nominal Impedance 50 Ohms
Maximum Power Rating 100 Watts
Polarization Vertical
Connector N-Style Jack
Dimensions 28” x 7” x 2.4”
Wind Load 120 mph
Radome ABS
Operating Temperature Range -22°F ~ 158°F
Mast Mount Diameter Ш2.0” ~ Ш3.0”
Front-to-Back Ratio ≥ 25 dB
Weight 7.6 lbs (w/ bracket)
