33. Install the new Skyjacker lower bumper bracket using the supplied
7/16” x 1 1/4” bolts, washers, nuts, OEM hardware, 15mm socket, &
a 5/8” socket. (See Photo # 23) Note: Tighten all front bumper
assembly hardware at this time.
34. Install the front tires / wheels using a 19mm socket & lower the front
of the vehicle to the ground.
Final Notes:
• After the installation is complete, double check that all nuts & bolts
are tight. Refer to the following chart for the proper torque specifications. (Do not retighten any
nuts & bolts where thread lock compound was used.)
• With the vehicle placed on the ground, cycle the steering lock to lock & inspect the steering,
suspension, brake lines, front & rear drivelines, fuel lines, & wiring harnesses for proper
operation, tightness, & adequate clearance.
• Have a qualified alignment center align the vehicle to the OEM specifications.
• After the first 100 miles, check all hardware for the proper torque & periodically thereafter.
seat Belts save lives, Please Wear Your seat Belt.
I-FAA303 Pg 6

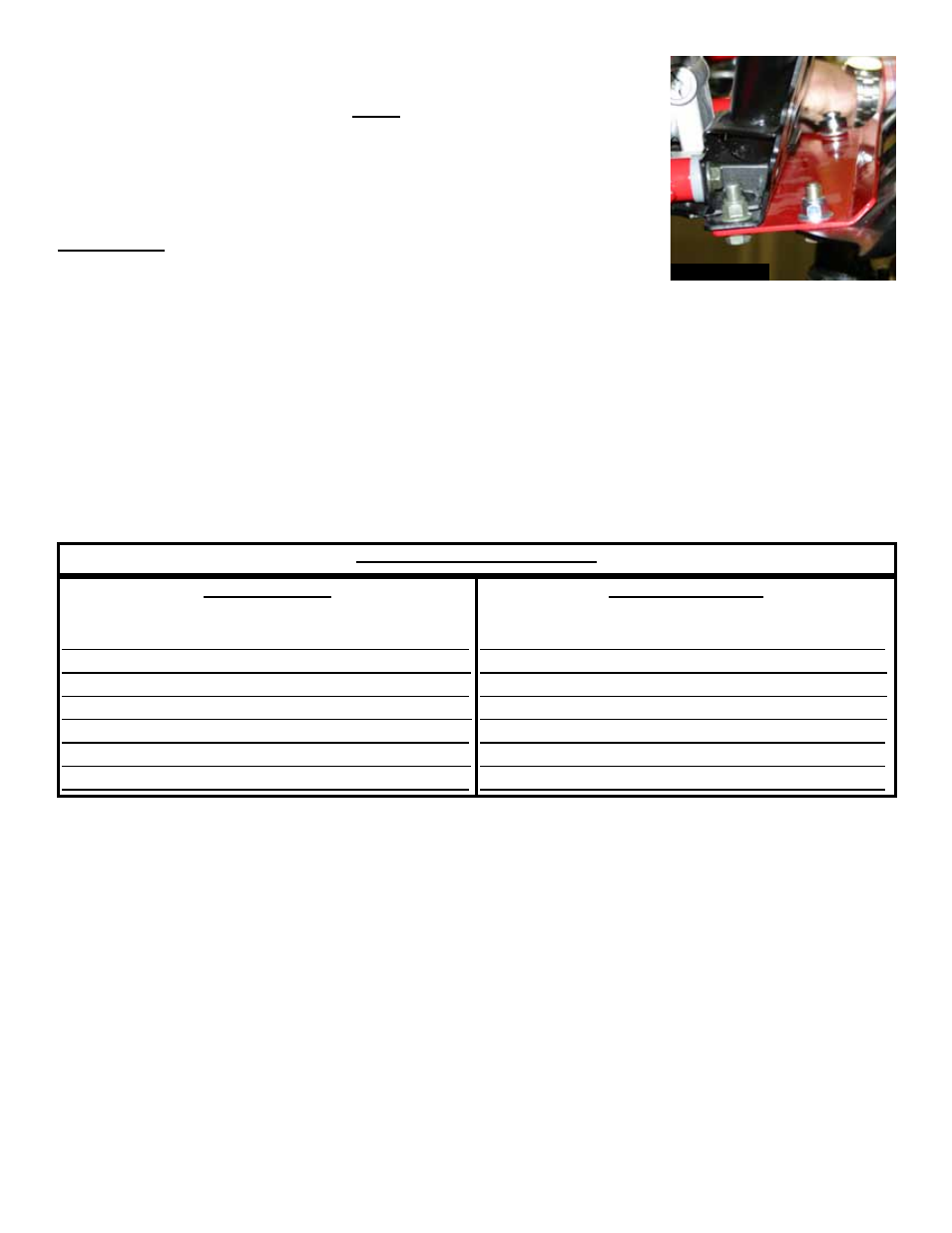

Photo # 23
ToRque sPeCIFICATIoNs
INCH sYsTeM
Bolt size Grade 5 Grade 8
5/16 15 FT LB 20 FT LB
3/8 30 FT LB 35 FT LB
7/16 45 FT LB 60 FT LB
1/2 65 FT LB 90 FT LB
9/16 95 FT LB 130 FTLB
5/8 135 FT LB 175 FT LB
3/4 185 FT LB 280 FT LB
MeTRIC sYsTeM
Bolt size Class 8.8 Class 10.9
6MM 5 FT LB 9 FT LB
8MM 18 FT LB 23 FT LB
10MM 32 FT LB 45 FT LB
12 MM 55 FT LB 75 FT LB
14MM 85 FT LB 120 FT LB
16MM 130 FT LB 165 FT LB
18MM 170 FT LB 240 FT LB
• The above specifications are not to be used when the bolt is being installed with a bushing.
