Skyjacker FAA303 - Manual (Page 2)

I-FAA303 Pg 2
Part # HB-P13Be
Item # description qty Item # description qty
P13UBE-CS CRUSH SLEEVE / 1.32 4 716X114FTB 7/16 X 1 1/4 FINE THRD BOLT 2
38X212CTB 3/8 X 2 1/2 COARSE THRD BOLT 2 716X212FTB 7/16 X 2 1/2 FINE THRD BOLT 2
38CTN 3/8 COARSE THRD LOCK NUT 2 716FTN 7/16 FINE THRD LOCK NUT 4
38SAEW 3/8 SAE WASHER 4 716SAEW 7/16 SAE WASHER 8

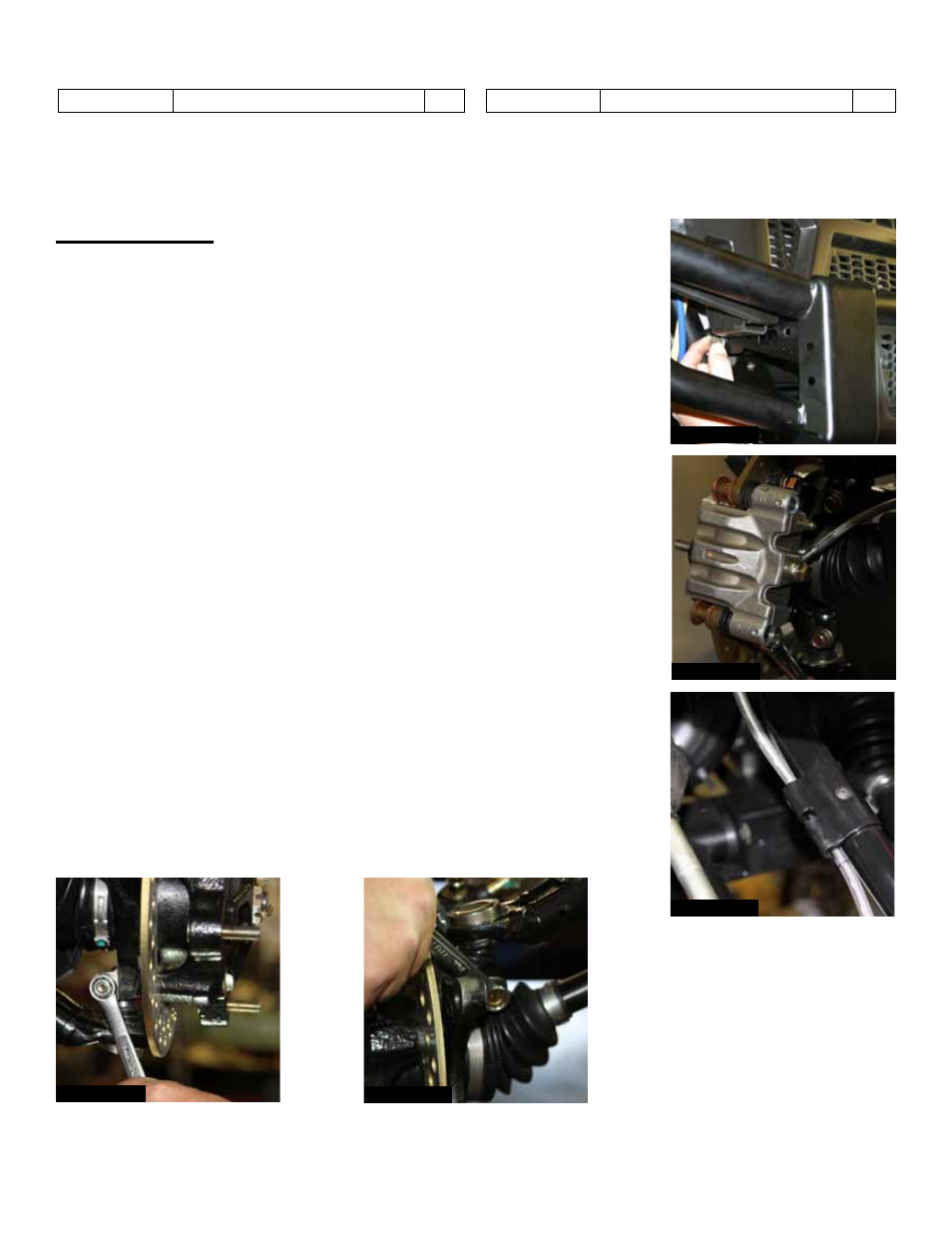

Installation:
1. With the vehicle on flat level ground, set the emergency brake, &
block the rear tires / wheels.
2. Raise the front of the vehicle & support the vehicle with jack stands.
3. Remove the front tires / wheels using a 19mm socket.
4. Remove the OEM front bumper assembly using a 15mm socket.
(See Photo # 1)
5. Disconnect the OEM front brake caliper assemblies from the OEM
steering knuckles using a 15mm socket. (See Photo # 2)
6. Disconnect the OEM front brake lines from the OEM plastic retaining
brackets on the OEM front upper A-arms. (See Photo # 3)
7. Disconnect the OEM front shock assemblies from the OEM upper
A-arms using a 15mm socket.
8. Disconnect the OEM front lower A-arms from the OEM steering
knuckles using a 13mm socket. (See Photo # 4)
9. Remove the OEM front lower A-arms using a 15mm socket.
10. Disconnect the OEM front upper A-arms from the OEM steering
knuckles using a 13mm socket. (See Photo # 5)
Photo # 2
Photo # 3
Photo # 4
Photo # 1
Photo # 5
