ETC2002 Network Communicator
Status Event Exchanges

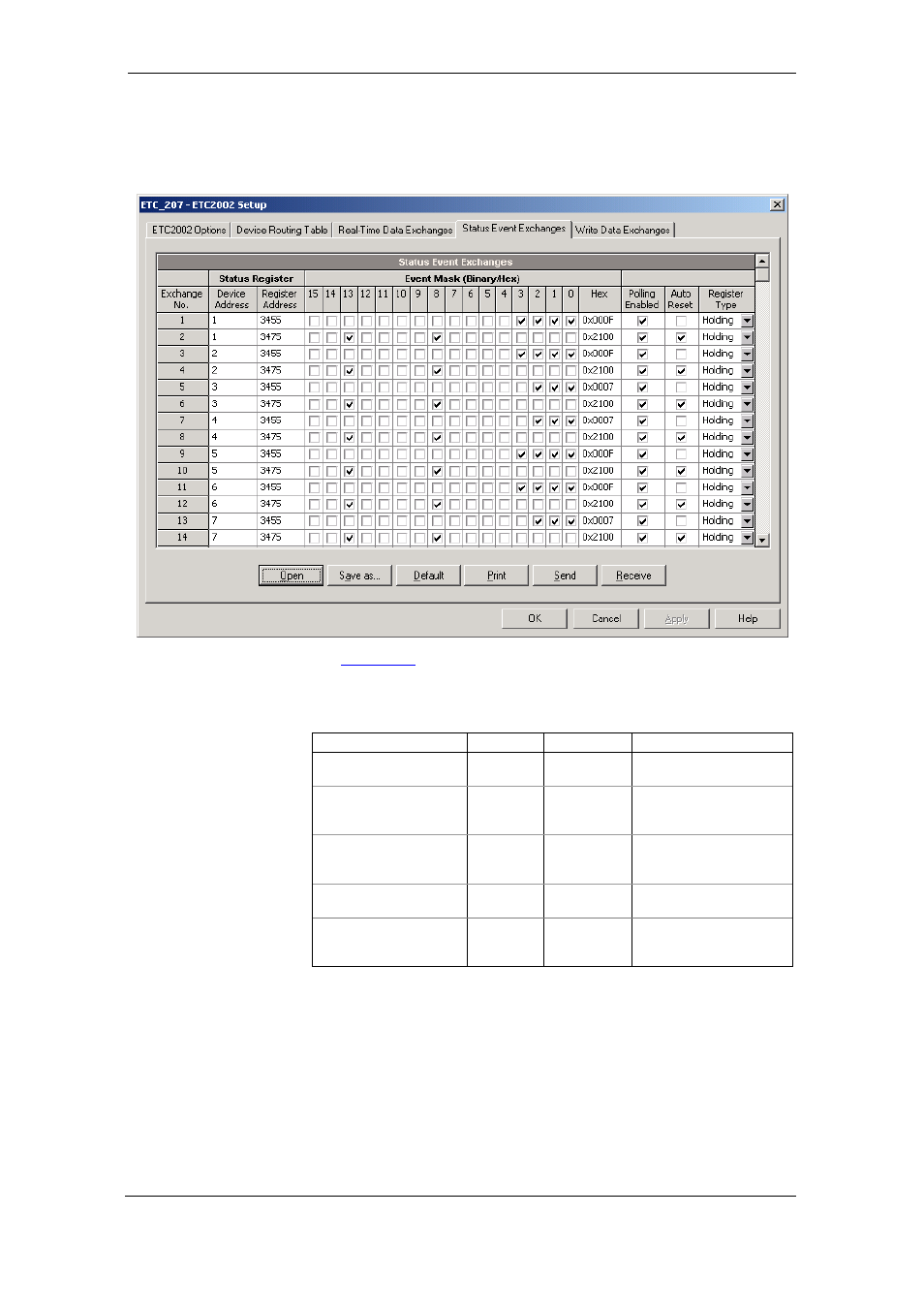

To enter the Setup dialog, select the ETC2002 site from the list box on the
PAS toolbar, select ETC2002 Setup from the Meter Setup menu, and then
click on the Status Event Exchanges tab.
in Chapter 3 for more information on using status event
exchanges. Refer to the ETC2002 Modbus Guide for information on how to
access the event log data via communications.
The following table lists available options.
Parameter Options
Default Description
Device address
1-247
1
Defines the device to which
the exchange is linked
Register Address
0-65535
0
Defines the device status
event register address for
polling
Event Mask
0-0xFFFF
0
Defines the bit mask for
bits which status must be
checked for events
Polling Enabled
Disabled,
Enabled
Disabled
Enables polling the status
register
Auto Reset
Disabled,
Enabled
Disabled
If enabled, the Data server
clears the device register
after it has been read
To configure a status event exchange:
1. Define the device address for a status event exchange.
Note that the real-time, status event and write data
exchanges with the same exchange number are internally
linked in the ETC2002 to the same device address.
2. Specify the device status register address you wish to be
polled via the exchange.
3. Specify the event mask for bits you wish to be checked for
events.
4. Check the “Polling Enabled” box to activate the exchange.
