Chapter 5 Setting Up the ETC2002
Configuring Data Server
ETC2002 Network Communicator
49
in Chapter 3 for more information on using real-time data
exchanges. Refer to the ETC2002 Modbus Guide for information on how to
access the acquired real-time and logged data via communications.
The following table lists available options.
Parameter Options
Default Description
Device Address
1-247
1
Defines the device to which
the exchange is linked
Device Start Register
0-65535
0
Defines the start device
register for real-time
polling
Block Size
1-114
0
Defines the number of
contiguous registers in the
exchange
Polling Enabled
Disabled,
Enabled
Disabled
Enables polling the device
RTC Sync Enabled
Disabled,
Enabled
Disabled
If enabled, the Data server
synchronizes the device
clock with the ETC2002
clock

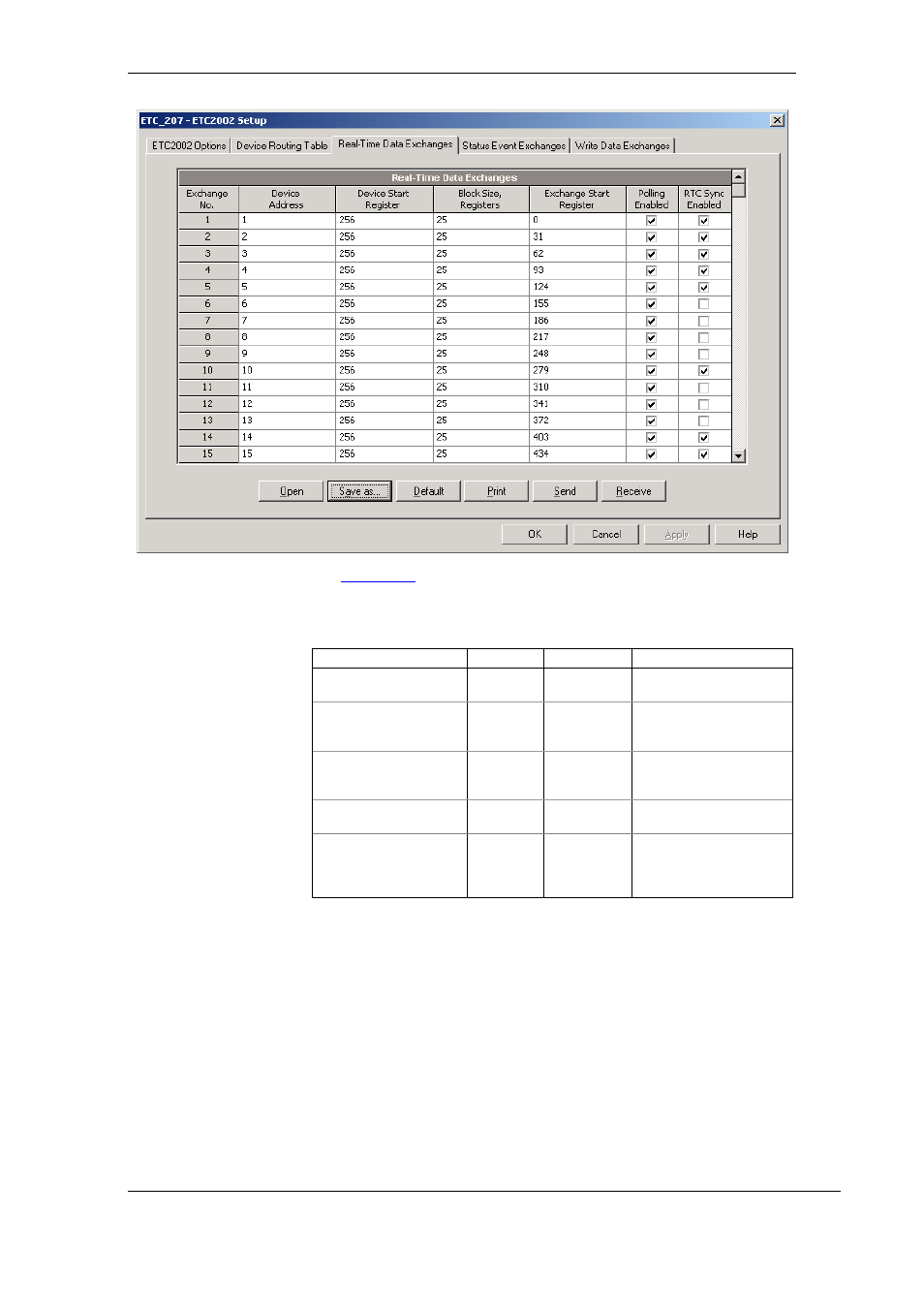

To configure a real-time data exchange:
1. Define the device address for a data exchange. Note that
the real-time, status event and write data exchanges with
the same exchange number are internally linked in the
ETC2002 to the same device address.
2. Specify the start register address of the area in the device
Modbus map you wish to be polled via the exchange.
3. Type the number of registers in the exchange. Up to 114
registers can be specified for a single exchange. As you
type the register address range, PAS immediately shows
you the start register address in the ETC2002 exchange
area for accessing the acquired data from the remote
applications.
4. Check the “Polling Enabled” box to activate the exchange.
