Form # 46584

Issue 11/06 Web Rev_01

72

MAINTENANCE/SERVICE


Diesel Engine: Fuel System


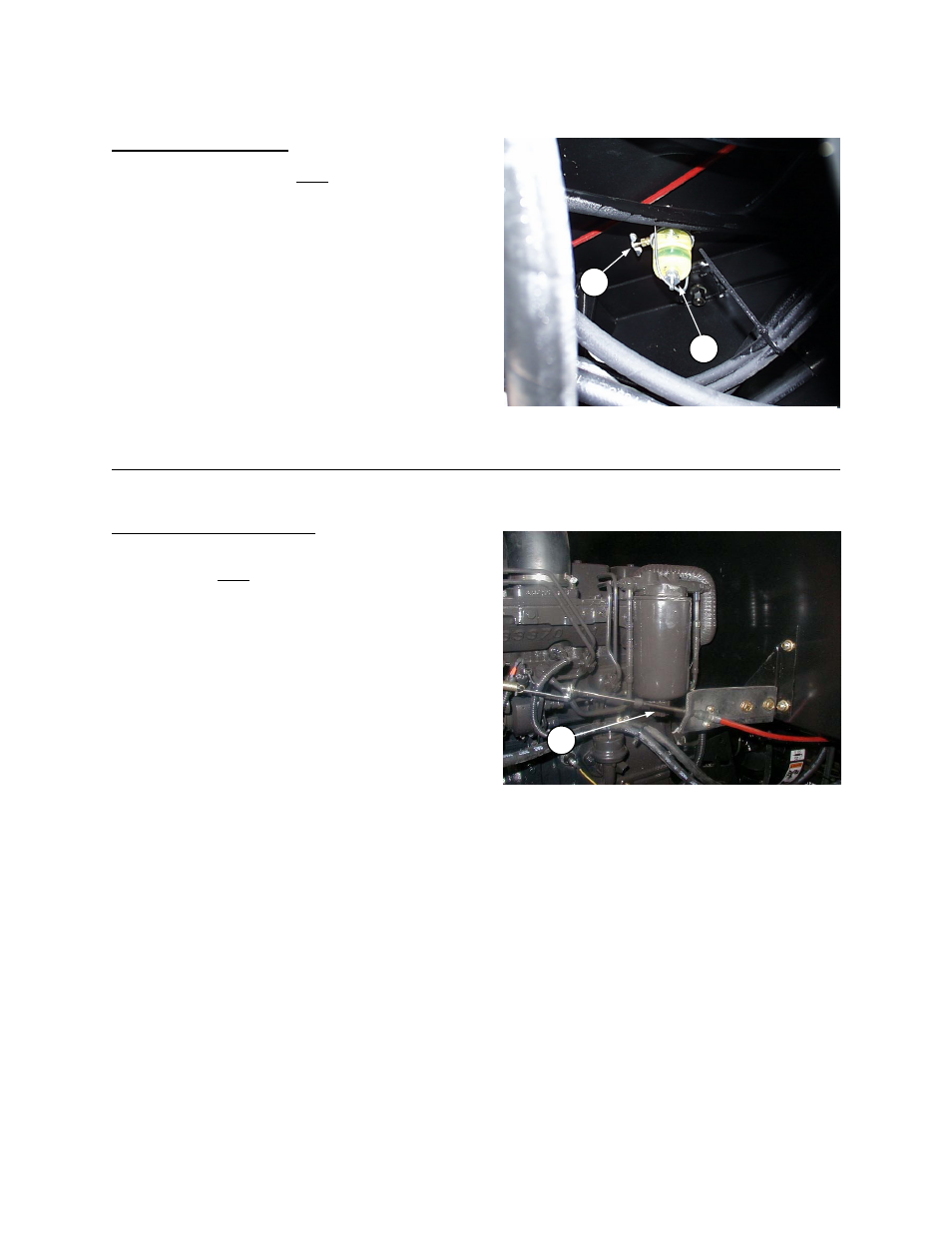

FUEL SEDIMENT BOWL

Inspect fuel sediment bowl daily for water or other
contaminants. Bowl is located under tank. Clean
as required.

To clean:

1. Close valve (A) to shut off fuel.

2. Loosen nut (B) and remove bowl.

3. Clean bowl and mesh screen in head.

4. Replace bowl and open valve (A).






















FUEL/WATER SEPARATOR

Drain the water and sediment from the separator
at the fuel filter daily, as follows:

1. Shut off engine.

2. Open the drain valve (A) by hand, 1½ to 2 turns

counter-clockwise until draining occurs.


3. Drain the filter sump of water until clear fuel is

visible.


4. IMPORTANT: Do not over-tighten valve.

Damage to threads may result.


Turn the valve clockwise to close the drain

valve.























A

B

FUEL SEDIMENT BOWL

FUEL/WATER SEPARATOR

(2005 - Naturally Aspirated Tractor Shown)

A
