Form # 46584

Issue 11/06 Web Rev_01

15

OPERATOR'S STATION

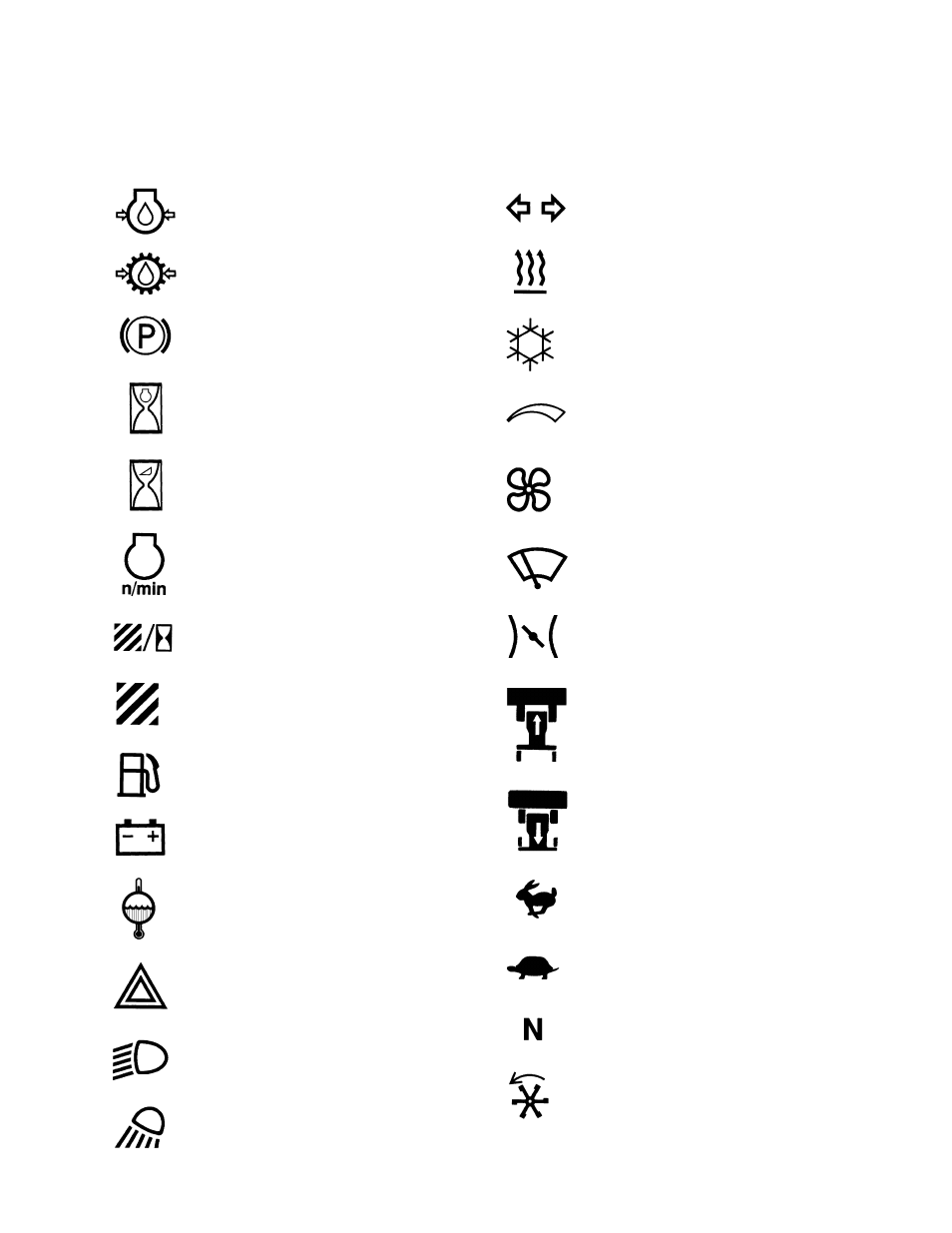

Symbol Definitions


The following symbols are used to depict functions or reactions at the various instruments and controls. Learn
the meaning of these symbols before operating the Windrower.

- Engine oil pressure

- Transmission oil pressure

- Parking brake on

- Engine hours

- Header hours

- Fuel

- Area cut per hour

- Voltage

- Area cut: subtotal
Area cut: grand total

- Flashing amber lights

- Head lights

- Work (field) lights

- Turn signals

- Temperature control: heater

- Engine R.P.M.

- Temperature control:
Air conditioning

- Turn to increase output:
Heater or air conditioner

- Engine coolant temperature

- Blower

- Windshield wiper

- Engine throttle

- Forward ground speed

- Reverse ground speed

- Fast

- Slow

- Neutral

- Reel speed
