ASSEMBLY
Preparing 972 Harvest Header
(21' to 36') for Windrower Tractor

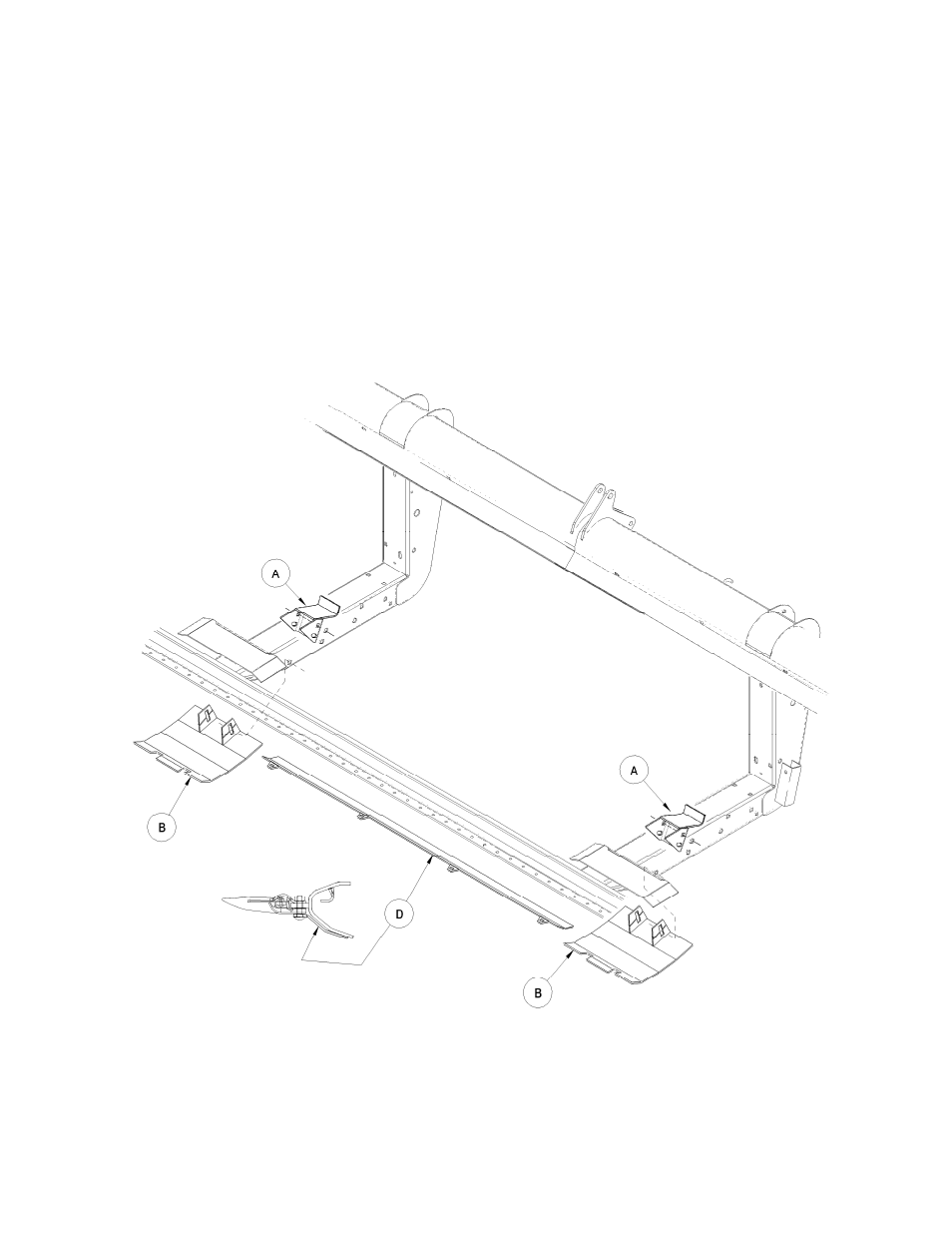

1. Attach lift linkage supports (A) inside lower header legs with 5/8 x 6-1/2 carriage bolt, lockwasher and nut.
Use the top hole in the leg as shown.
2. For 21’ & 25’ Headers, attach center section of wear plate (D) to cutterbar at delivery opening. Longer
guard bolts are positioned at the correct locations.
3. Attach skid shoes (B) at header legs with 5/8 x 1-1/2 carriage bolts and flange nuts.
4. Attach reel lift coupler to hose at header left leg.
5. Ensure drive shaft on header is for Windrower Configuration. See 972 Header Operator’s Manual.
21’ to 36’ 972 HEADERS – WINDROWER COMPLETION PACKAGE
