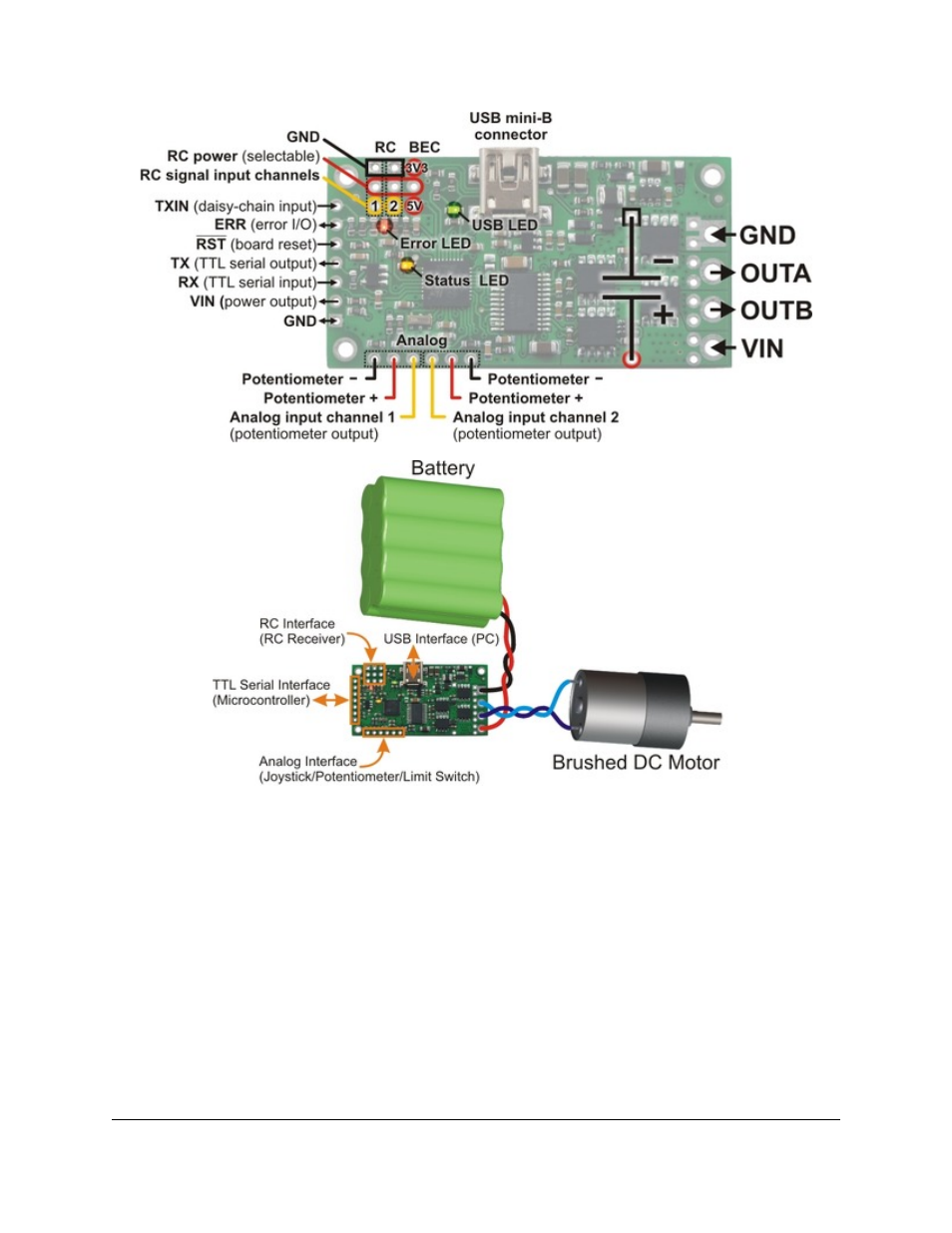

• Simple High-Power Motor Controller 18v25 and 24v23 Pin-Out
Pololu Simple Motor Controller User's Guide © 2001–2014 Pololu Corporation
4. Connecting Your Motor Controller Page 25 of 101
