at the back edge of the Sunshade
to release it from the Upholstery
(Photo I).
To re-install the Sunshade:
1. Un-zip the Sunshade pocket for the
front plastic support strip.
2. Position the Sunshade around the
plastic support strip (Photo J).
3. Snap the two fasteners to secure
the Sunshade in place (Photo K),
then zip the pocket around the
plastic support strip.
4. Press the hook and loop fasteners
together at the back edge of the
Sunshade to attach
it to the Upholstery.
Using the Sunshade cont’d
Using the Sunshade cont’d
3. Snap each corner to the Upholstery
to secure the Sunshade Extension
into place.
To avoid choking or entanglement,
stow the Sunshade Extension back into
its pocket when not in use.

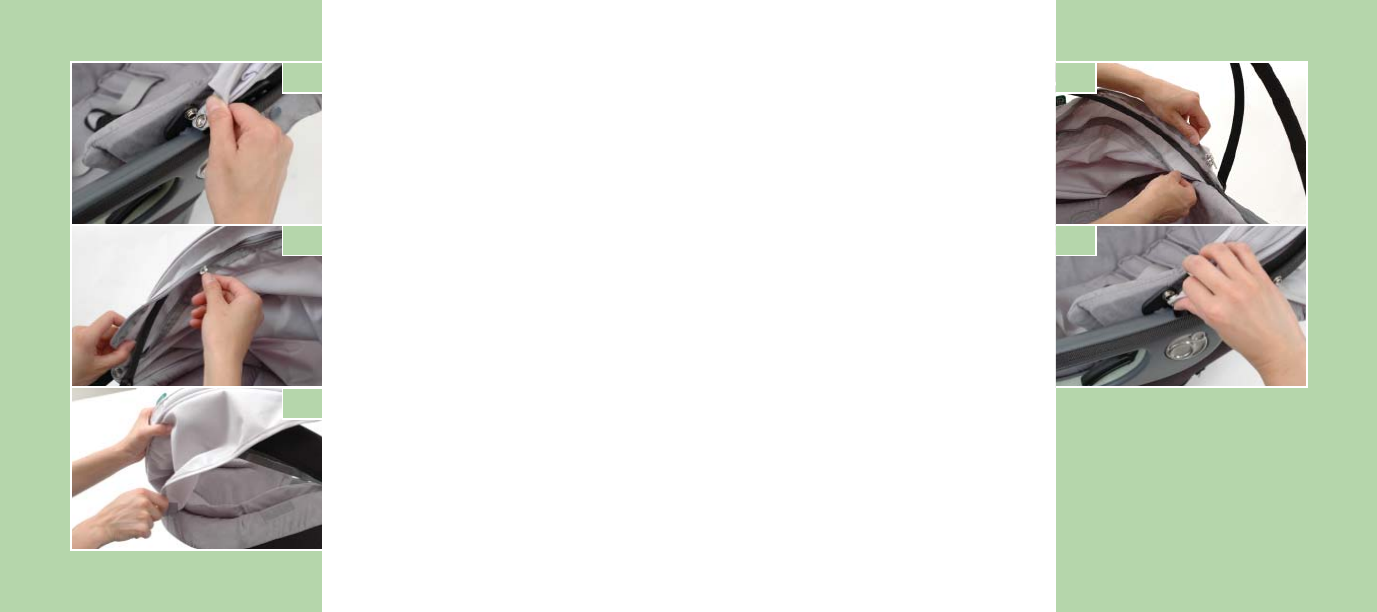

The Sunshade is removeable for
spot cleaning:
1. Un-snap the two fasteners at the
edge of the Sunshade (Photo G).
2. Un-zip the Sunshade from around
the front plastic support strip,
which remains attached to the
Infant Car Seat (Photo H).
3. Undo the hook and loop fasteners
J
K
G
H
I
