Install the Base
Securing Y
our Child
54
54
Install the Base
55
55
Securing Y
our Child
55
55
is threaded into slots at the same
height and that neither shoulder
strap is twisted (Photo G).
e. Turn to the back of the Infant
Car Seat again and secure each
shoulder strap loop entirely onto
a single Splitter Plate as shown
(Photo H).
3. CHECK that the straps are secure by
pulling on the shoulder straps from
the front (Photo I).
4.
CHECK that Upholstery and
fasteners around the shoulder strap
slots do not interfere with the free
movement of the Restraint Harness.
5. Re-zip the back of the Infant Car
Seat closed. This completes the
shoulder strap height adjustment.
Sizing the Restraint Harness to Your
Child cont’d

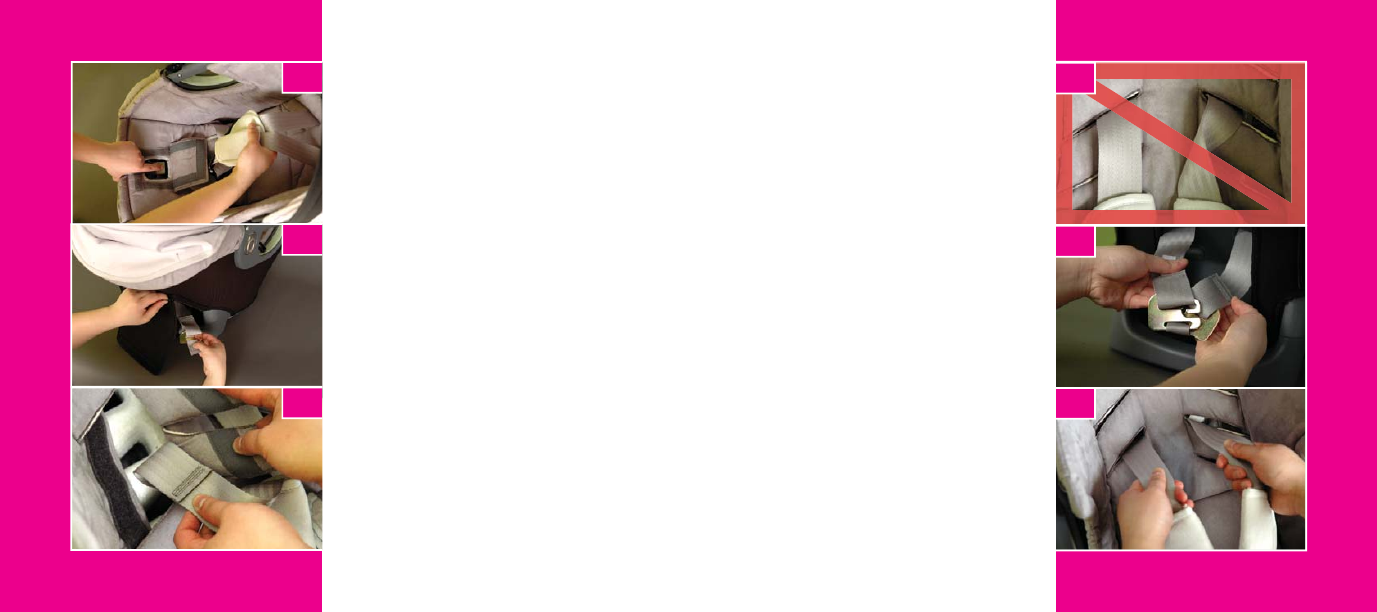

2. Move the shoulder straps, if needed,
to the correct slots:
a. Find the Adjuster Strap Lock
under the Upholstery fl ap at the
front of the seat. Pull on the
shoulder straps while pressing
down on the Adjuster Strap Lock
to loosen the straps (Photo D).
b. Un-zip the back of the Infant Car
Seat and pull the panel up to
reach the Splitter Plates (Photo E).
c. Remove each shoulder strap from
its metal Splitter Plate.
d. From the front of the Infant Car
Seat, rethread each shoulder
strap through the upholstery and
plastic slots (Photo F).
CHECK that each shoulder strap
Sizing the Restraint Harness to Your
Child cont’d
H
I
G D
E
F
