2. overvIeW
The Digilyzer is a sophisticated tool used to analyze digital audio
signals. It is designed for easy and quick maintenance and debugging
of digital audio equipment and installations. Therefore, the Digilyzer
observes the signals from many points of view simultaneously. An
accurate overview of the actual signal condition is displayed on a large
LCD and hidden errors are visualized (e.g. consistency check).
Quick status
information
Carrier
information
PPM meter
Menu bar
By using the Digilyzer understanding and handling digital signals is
simple. However, some basic knowledge about digital audio signals
is essential. Please refer to our homepage for some easy literature
about digital audio basics.
Interface types
The Digilyzer supports all common used interface types such as AES3,
S/PDIF, TOS-LINK and ADAT. This range could be further extended
by using external adapters or cheap equipment e.g. a TDIF to ADAT
converter.
Overview

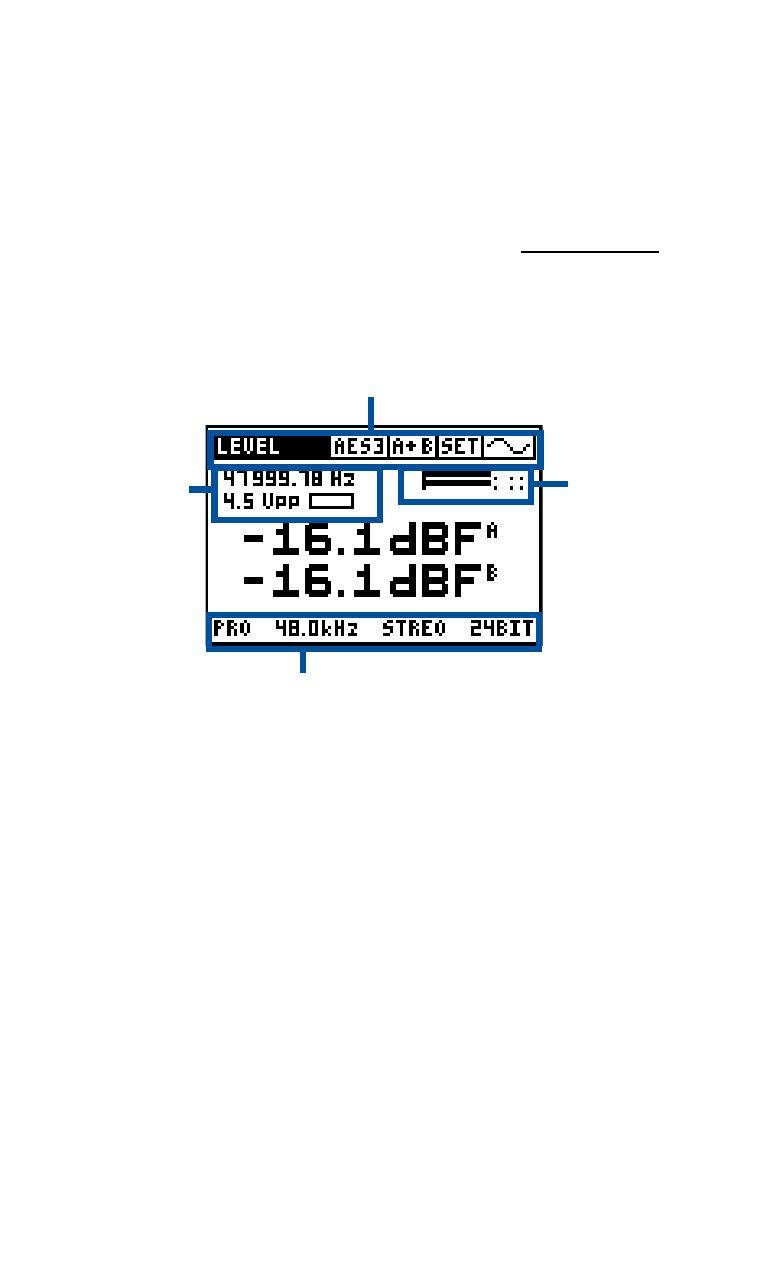

Fig 2-01, Overview display
