NOTE • The second channel (e.g. B) is invalid in the
1C2f mode. This is indicated in the measurement
functions like LEVEL PEAK as “—“ or with a very
small value.
• The 1C2f format is displayed as part of the channel
status menu in the professional format. At many
applications this information is not configured in the
channel status details of the digital audio signal.
• The 1C2f mode is part of the consistency check. In
case the channel status indicates 1C2f mode and
1C2f mode is not selected in the format menu or vice
versa, the consistency error window is displayed.
• 1C2f mode is defined for AES3 professional mode
only. The Digilyzer supports the 1C2f mode also in
the consumer and ADAT format. No monitoring is
available for ADAT signals.
• The DL1 allows you to switch to 1C2f mode even
if the input sample rate is higher than 48 kHz. This
may cause the DL1 to unlock to the input signal – or
could exceed the processing power of the Digilyzer.
This is indicated as “CARRIER FREQUENCY TO
HIGH” in the quick status information on the bottom
of the display.
Appendix

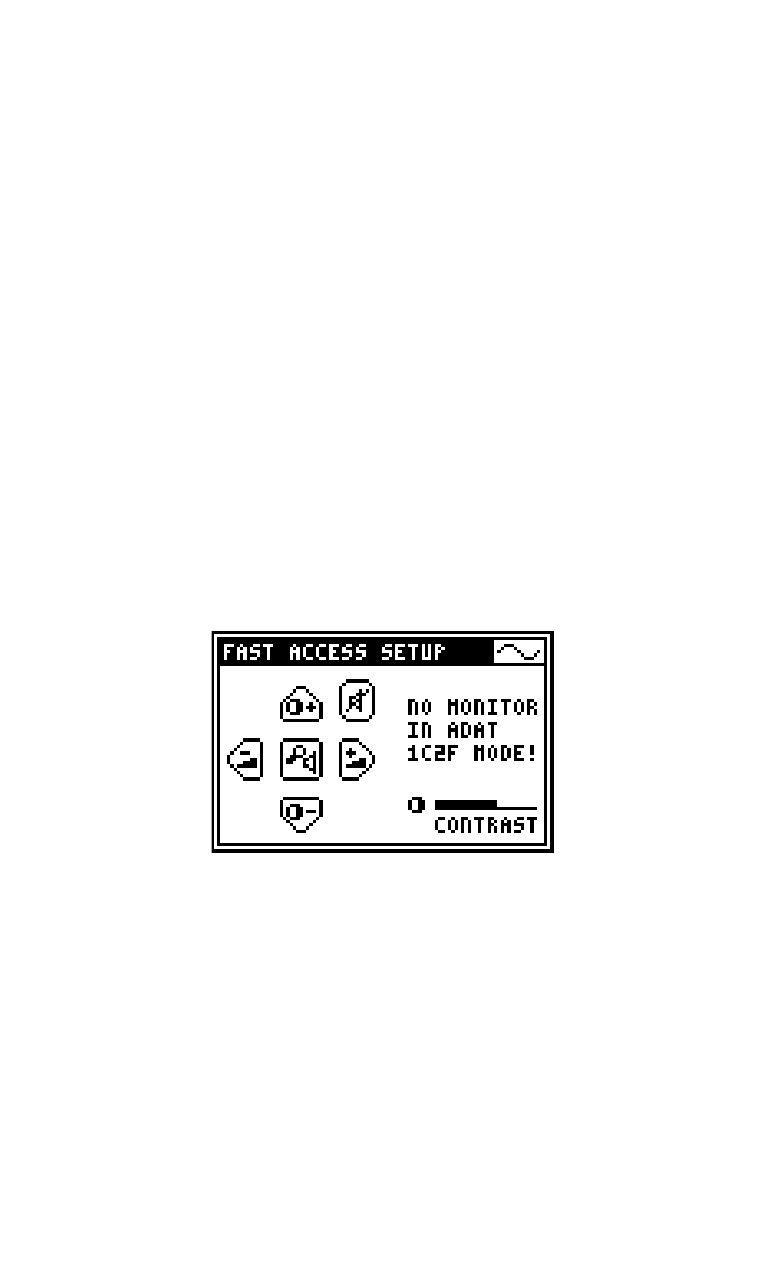

Fig 8-02, 1C2f with ADAT format
