29
Measurement Functions

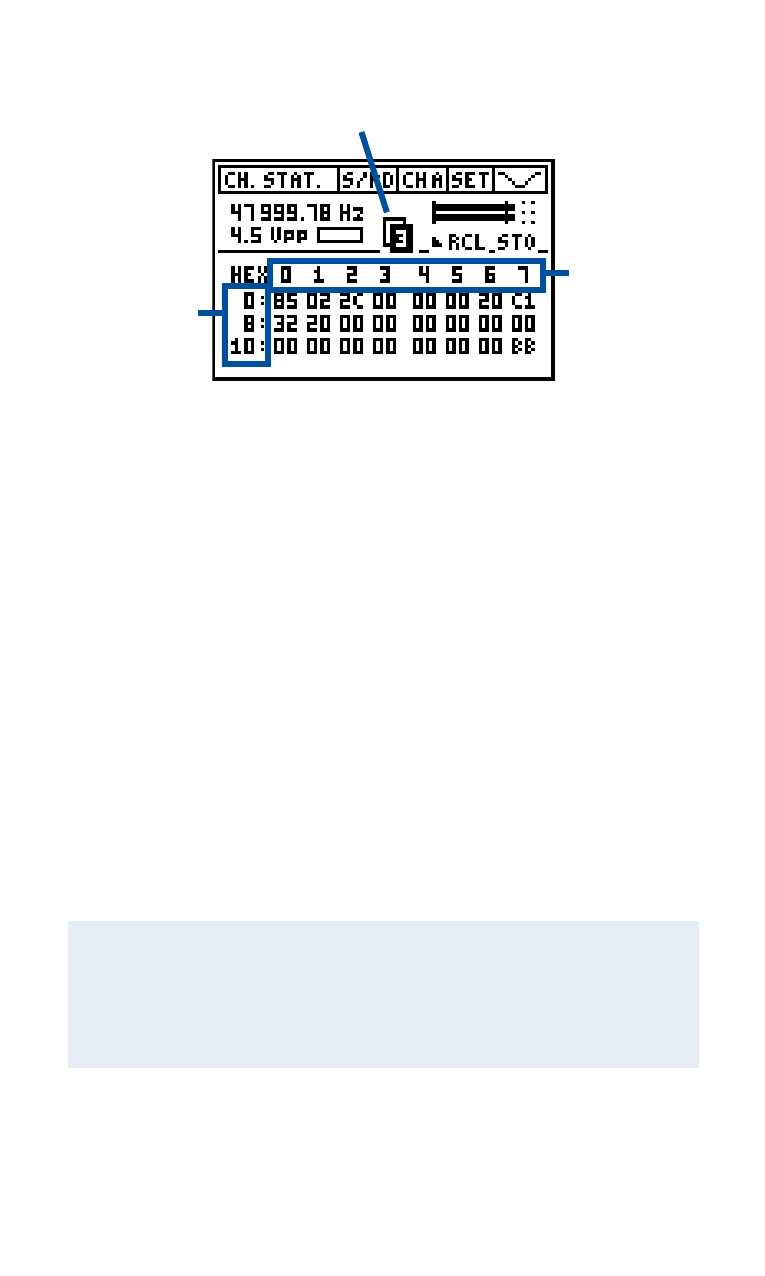

Fig 5-03, Channel status professional, page 3
On the third page the complete status information is displayed as hex
code. The content of each status byte is shown as two digits in hex
code. The status information contains 24 bytes. These are displayed
within three rows and eight columns. The individual row- and column
numbers shall be added together to read the information containing
in the corresponding byte number.
e.g. row number + column number = byte number
0 + 4 = 4
8 + 6 = 14
10 (hex) + 2 = 18
Page number
Row number
Column
number
Application hint:
There are many undefined and reserved bit combinations in the
channels status. The HEX view offers the possibility to further
examine the reserved states - if necessary.
