10

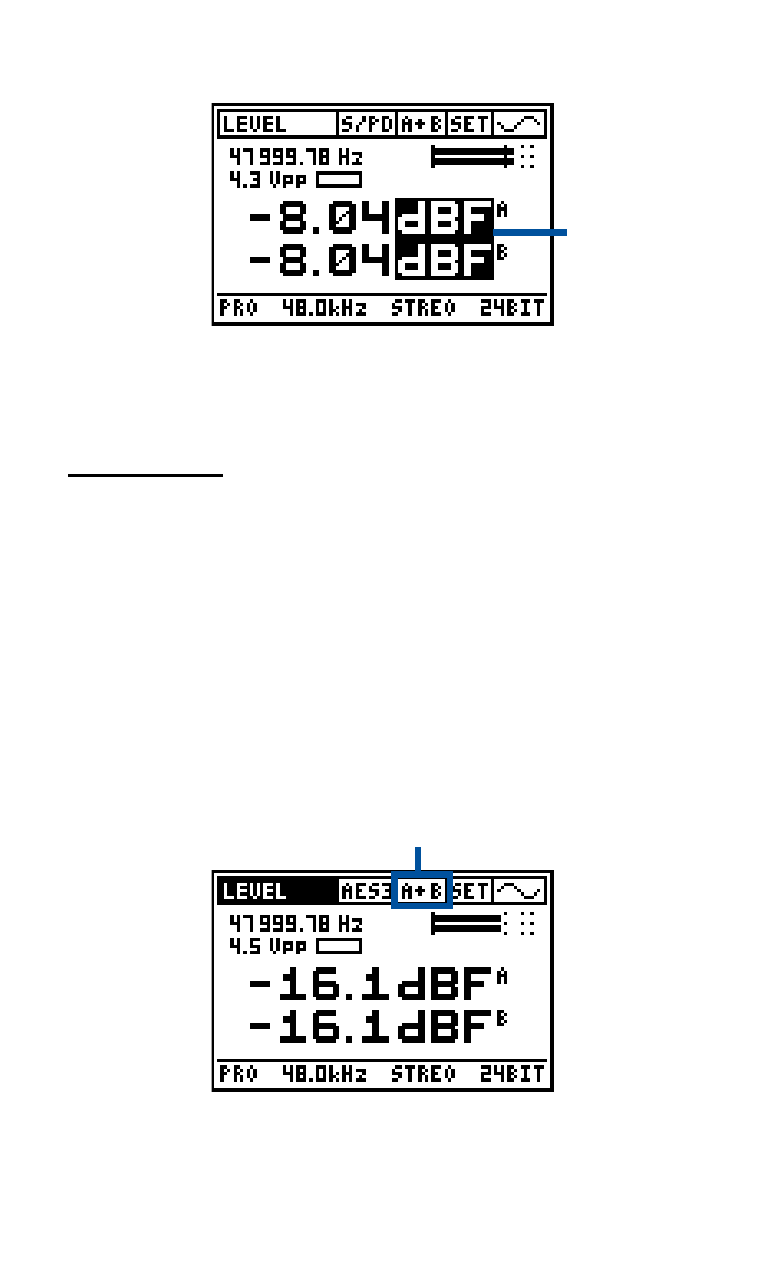

Unit selected
with cursor to
change setting
Fig 2-04, Changing settings
Overview
Monitoring
When it comes to digital audio, one of the major problems is, that
humans do not have digital ears and thus can not listen to the
incoming embedded audio signal. The Digilyzer offers a wide range
of functionality to make digital audio audible.
What you hear is what you measure
• Functions with measurement of both channels (e.g. A+B), the
output of the speaker is a mix of the two channel signals. Over
the headphone output you may hear the signal in stereo (channel
A on the left and channel B on the right side).
Both channels A+B selected
Fig 2-05, Channels A+B selected
