RX 1510-C/-I/-CI
– 95 –
KS
A
BS

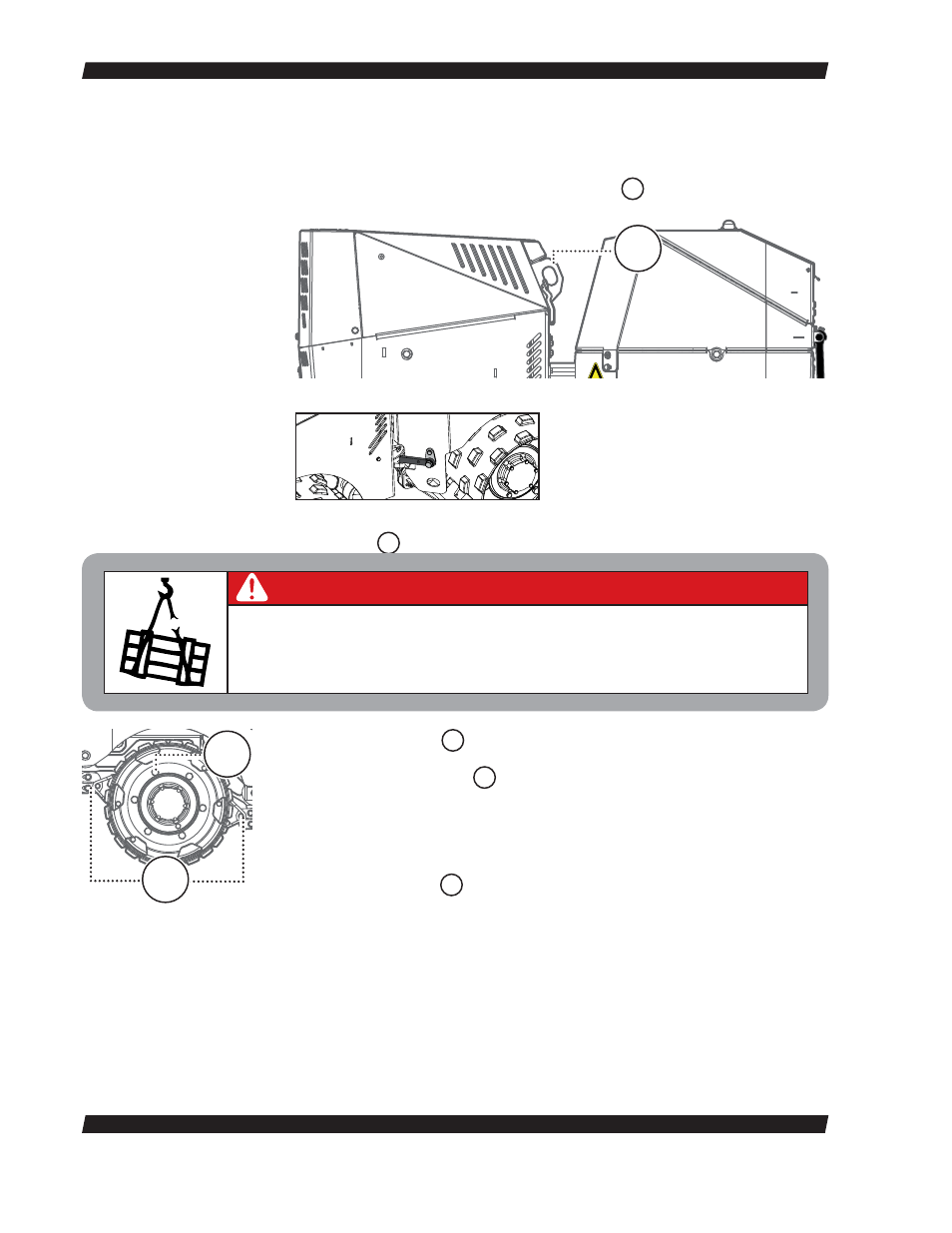

8.12 Exchanging drums
The machine must be lifted with appropriate hoisting gear, in order to change the
drums. The hoisting gear must have sufficient carrying capacity. The machine
may only be lifted at the intended transport handles
TB .
1) Attach transport protection.
2) Insert the hooks of the hoisting gear into the transport handle.
3) Lift the machine as far as necessary to enable convenient working.
4) Disassemble
A strippers.
Death by crushing!
Items can come loose and falls down!
Do not walk or stand under suspended loads. Do not leave any loose items on the
machine.
DANGER
5) Release fastening bolts BS of thedrums. Do not unscrew completely!
6) Lower machine until the drums are approximately 1 cm above ground.
7) Unscrew the fastening bolts
BS .
8) Hammer against the drum casing with a soft mallet, if the drums are firmly
attached to the driving flange. ► The drums release themselves from the driving
flange.
9) Clean the surface of the drum flange
10) Place new drums on the driving flange.
11) Tighten fastening bolts
BS crosswise.
► Tightening torque 150 Nm / 110 ft-lb
Maintaining the machine
