RX 1510-C/-I/-CI
– 56 –
F I I I00
100 1000
2000
10
4100 ►
4400
200 4010
20
1
N
100 1000
N

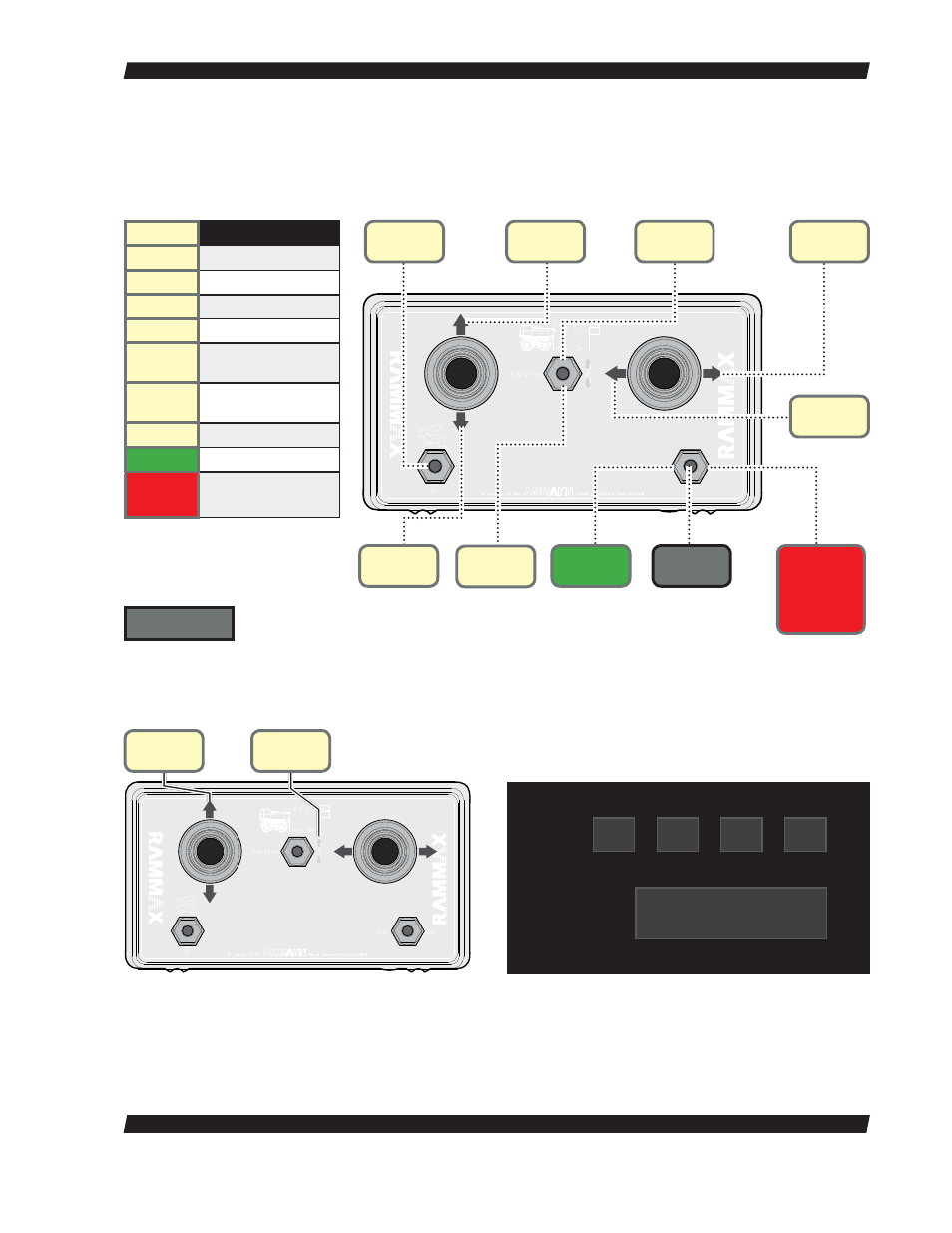

Example display function:
• F I 1100 Driving left forward with vibration forward
Code Meaning
1 Fast gear on/off
10 Drums right forward
100 Drums left forward
1000 Vibration forward
20 Drums right
backward
200 Drums left
backward
2000 Vibration reverse
4010 Start
4100-
4400
Machine off /
Transmitter off
Neutral position of the toggle switch „Start-Stop”.
This switching position is not indicated in the cockpit.
4.4.5 Function codes during operation with infrared control
The function codes displays in the cockpit are made up of the code numbers for
the individual function keys. Adding the code numbers results in the indicated
function codes.
Display and operating elements:
