RX 1510-C/-I/-CI
– 47 –
0
1
2
888888
Ignition „On” /
Stand-by 1
Starting
2
Ignition „Off”
0
888888

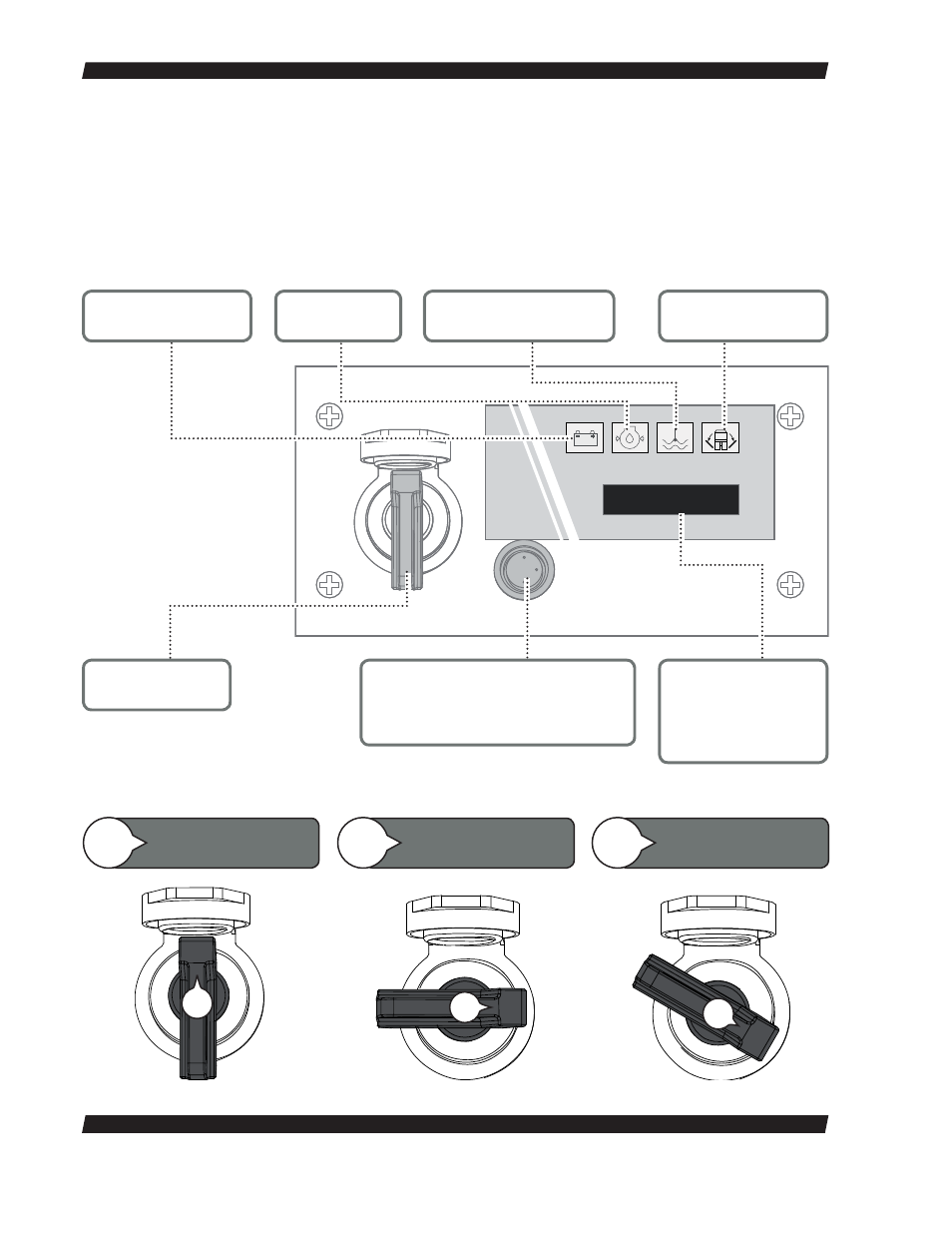

Ignition lock Connection for cable manual control
(only available for cockpit 3-68562 ► only
RX 1510-C and RX 1510-CI)
Display for:
• Operating hours
• Function code
• Error code
Warning light inclination
indicator
Warning light water
temperature
Warning light oil
pressure
Warning light generator
4. Display and operating elements
4.1 Introduction
The cockpit of the machine is equipped with an electronic display panel. The
display panel informs the operator about operating hours, water temperature, oil
pressure and malfunctions of the machine.
Before initial start-up, Chapter 5 Start-up and 7.Operation must be read.
Ignition positions:
Display and operating elements:
